6.5 Project planning for helical-bevel gear units on swing base MK (→ GK)

Pre-assembled drive units comprising helical bevel gear units, hydraulic centrifugal

couplings and electric motors are available especially for conveyor systems, bucket

conveyors and other machines with high inertia starting. The complete arrangement is

attached to a torsionally rigid mounting rail. A protective canopy serves as touch guard

for the rotating parts and a collecting pan protects from leaking oil in the event of a

failure. The collecting pan is only relevant for mounting position M1. For other mounting

positions, the customer must take appropriate measures.

Helical-bevel gear units in type sizes 107 to 187 with 4-pole motors of sizes 200 to 280

(40 to 120 Hp) are available in combination with a swing base.

. The gear units can be

used with a solid shaft or as shaft-mounted versions. The mounting rail is equipped with

a foot mounting option as standard for use as base plate (output free from overhung

loads using elastic coupling). A torque arm is available as option for shaft mounted gear

units.

Horizontal mounting positions are standard for the swing base MK. Please contact

SEW-EURODRIVE for other mounting positions.

04616AXX

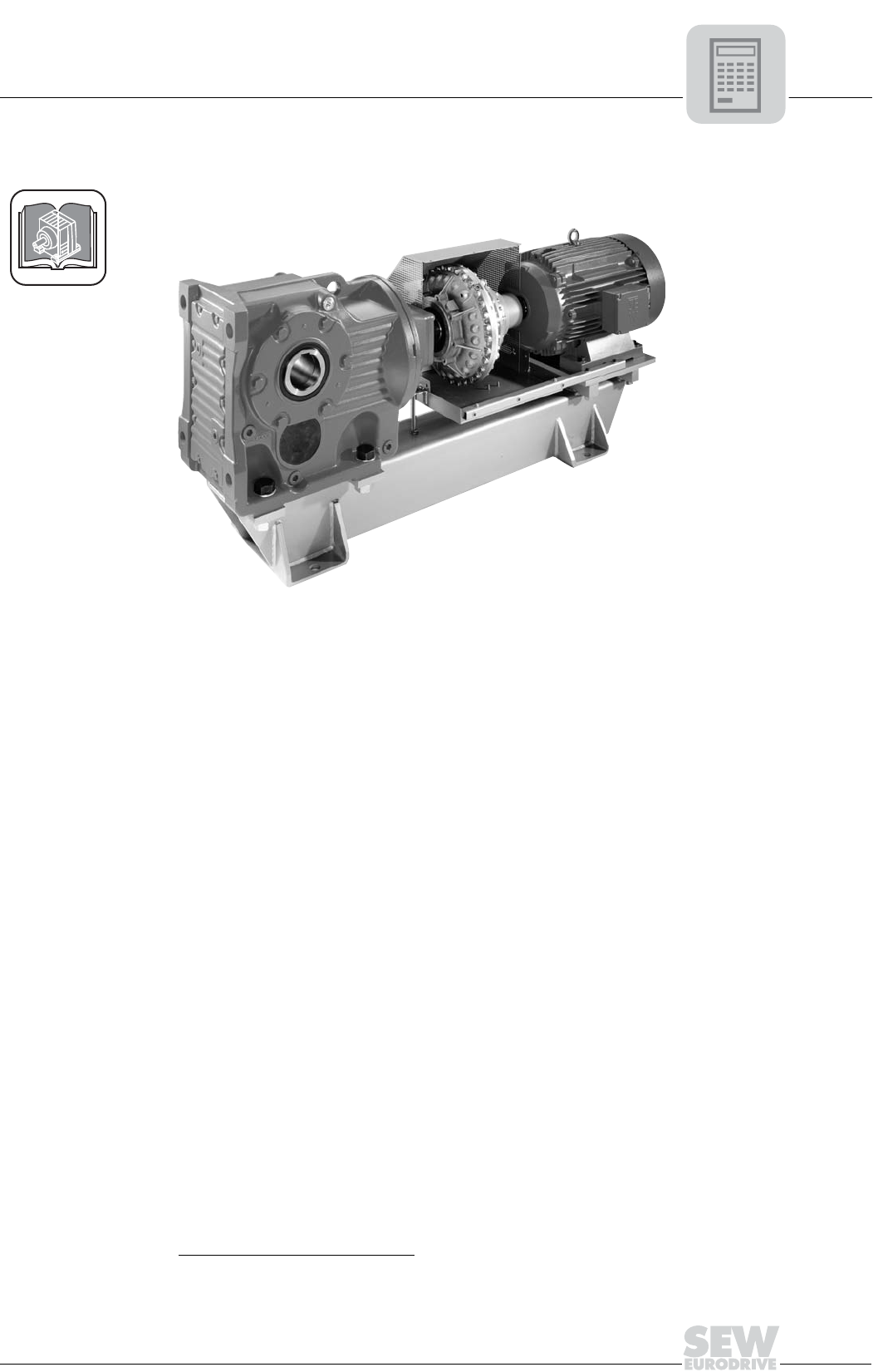

Figure 28: Helical-bevel gear unit on swing base MK

1) The adapter with hydraulic centrifugal coupling is available for motors of size 71 to 180 (0.5 to 30 Hp).
