Manual – Gear Units and Gearmotors
Adapter AR with torque limiting coupling (→ GK)
Project Planning for Components on the Input Side
Terminal assignment W
Terminal assignment WS
53653AXX

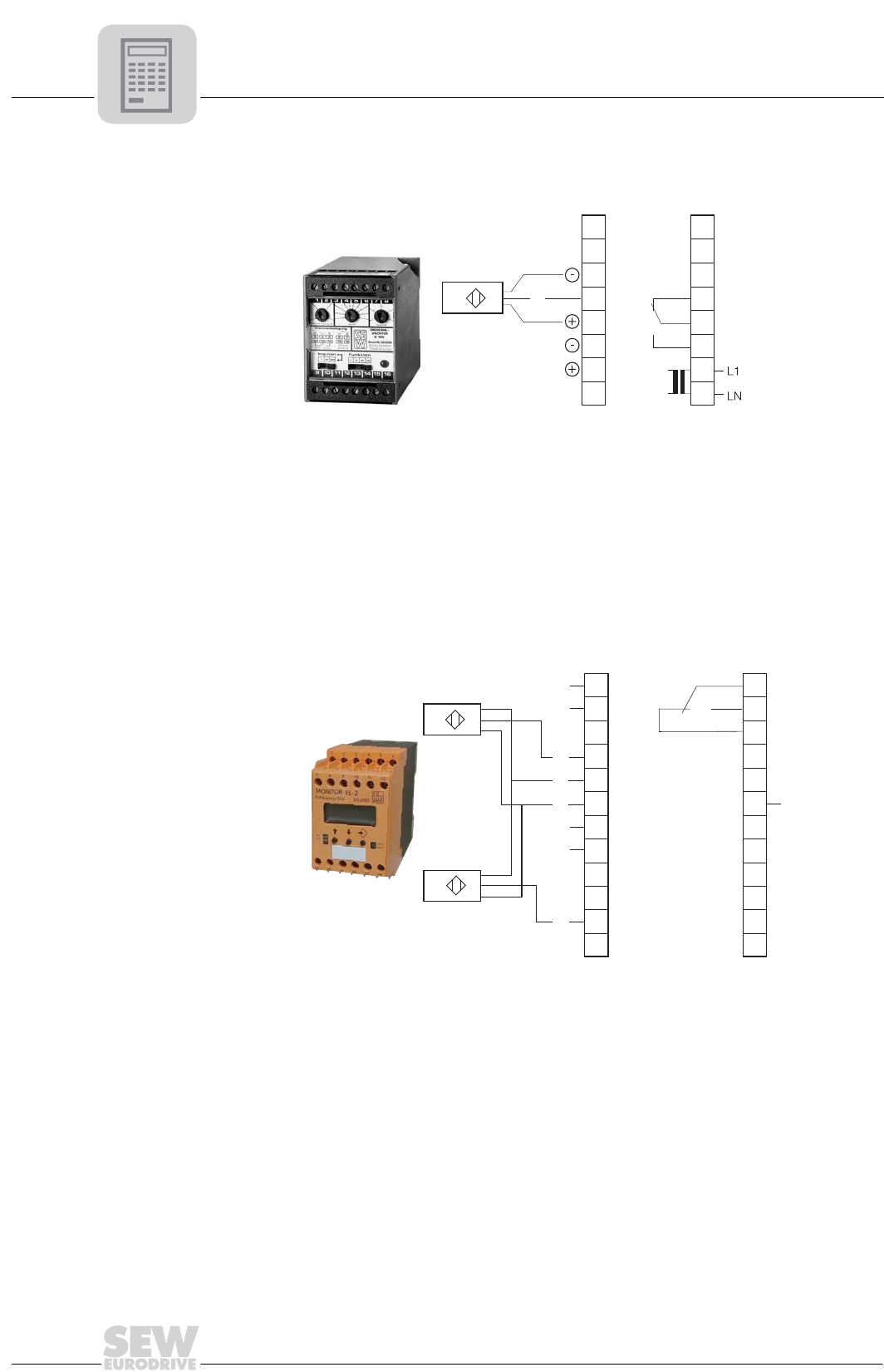

Figure 20: Terminal assignment /W
[1] Relay output
[2] Supply voltage AC 110 V (50...60Hz)
[3] External slip reset
[4] Supply voltage DC 24 V
[5] Jumper for synchronous operation monitoring
[6] Signal
[7] Encoder
[/W] Speed monitor
[4]
[6]
[1]
[2]
1
2
3
4
5
6
7
8
[7]
9
10
11
12
13
14
15
16
/
W
52264AXX
Figure 21: Terminal assignment /WS
[1] Relay output
[2] Supply voltage AC 110...240 V (50...60Hz)
[3] External slip reset
[4] Supply voltage DC 24 V
[5] Signal
[6] Encoder 1
[7] Encoder 2
[/WS] Slip monitor
1
2
3
4
5
6
7
8
9
10
11
12
[6]
[4]
[7]
13
14
15
16
17
18
19
20
21
22
23
24
䊝
䊞
[5]
[2]
䊞
䊝
[5]
L1
LN
䊝
[1]
[3]
/
WS
