Adapter AR with torque limiting coupling (→ GK)
Project Planning for Components on the Input Side
Torques, slip
torques
Speed monitor /W
option
We recommend monitoring the speed of the coupling using a speed monitor to avoid
uncontrolled slippage of the coupling and the associated wear to the friction ring pads.
The speed of the output end coupling half of the torque limiting coupling is detected in a
proximity-type method using a trigger cam and an inductive encoder. The speed monitor
compares the pulses with a defined reference speed. The output relay (NC or NO
contact) trips when the speed drops below the specified speed (overload). The monitor
is equipped with a start bypass to suppress error messages during the startup phase.
The start bypass can be set within a time window of 0.5 to 15 seconds.
Reference speed, start bypass and switching hysterisis can be set on the speed monitor.
Type P
m
1)
[HP]
1) Maximum rated power of the mounted standard electric motor at 1750 rpm
T
R
2)
[lb-in]
2) Adjustable slip torque according to the cup springs
T
R
2)
[lb-in] T
R
2)
[lb-in]
AR71 0.5 8.9 - 53 54 - 142 -
AR80 1.0 8.9 - 53 54 - 142 -
AR90 2.0 8.9 - 53 54 - 142 150 - 285
AR100 4.0 44 - 115 124 - 710 -
AR112 5.4 44 - 115 124 - 710 -
AR132S/M 10.0 133 - 1150 - -
AR132ML 12.5 133 - 1150 - -
AR160 20.0 265 - 750 760 - 1770 -
AR180 30.0 265 - 750 760 - 2655 -
53574AXX

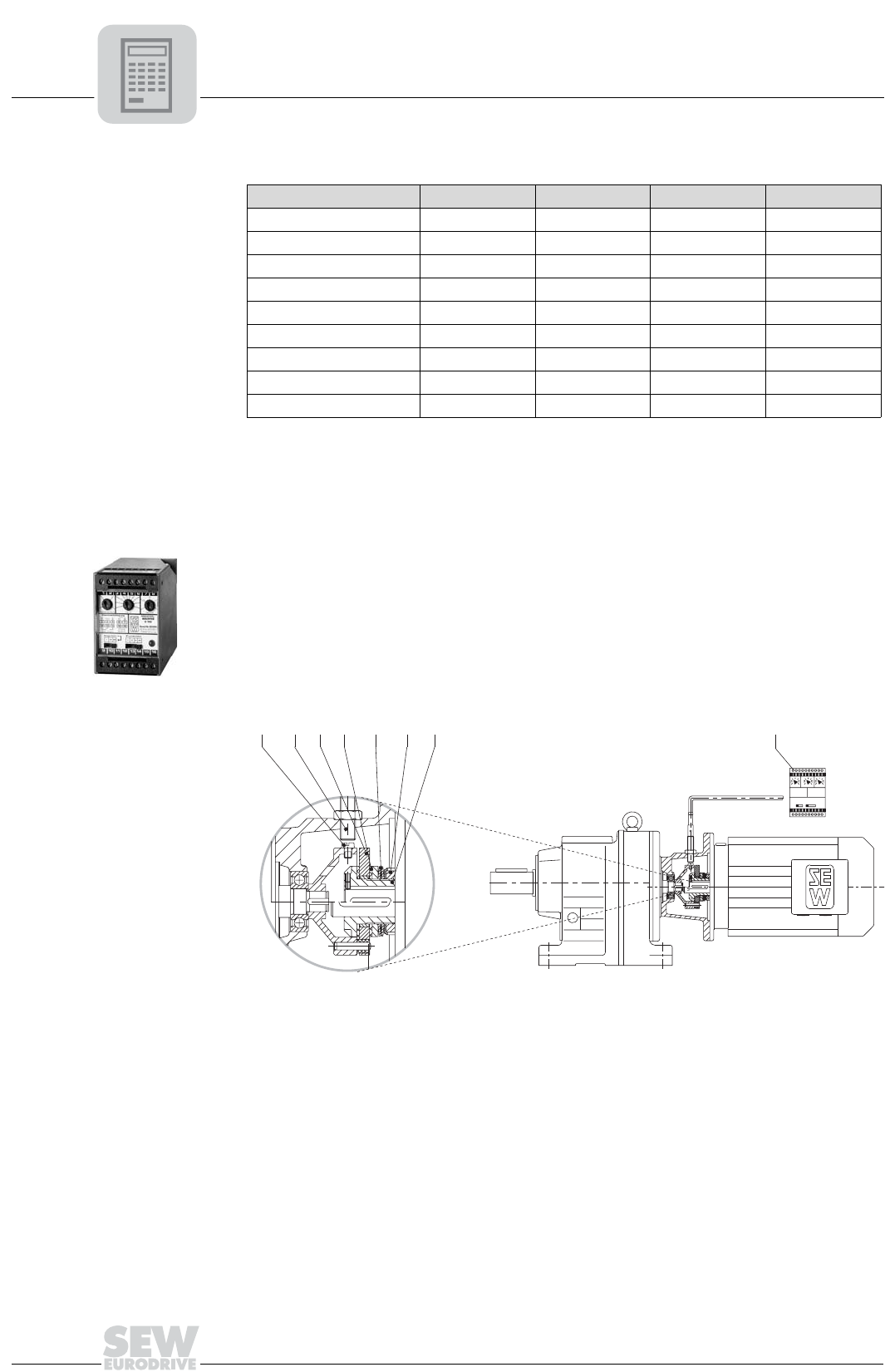

Figure 18: : Adapter with torque limiting coupling and speed monitor /W
[1] Trigger cam
[2] Encoder (adapter)
[3] Driving disc
[4] Friction ring pads
[5] Cup spring
[6] Slotted nut
[7] Friction hub
[8] Speed monitor
