Adapter AQ for servomotors (→ GK)

Project Planning for Components on the Input Side

6.2 Adapter AQ for servomotors (→ GK)

An adapter with square flange is used for mounting servomotors onto SEW helical,

parallel shaft helical, helical-bevel and helical-worm gear units.

The torque is transmitted via a elastomeric spider. Possible vibrations and shocks oc-

curring during operation are effectively weakened and dissipated by an inserted poly-

urethane ring gear.

Configuration

variants

The clutch half on the motor side can be configured either with a clamping ring hub (non-

positive, for smooth motor shafts) or a keyway (positive) as required.

• AQH = with clamping ring hub

• AQA = with keyway

04595AXX

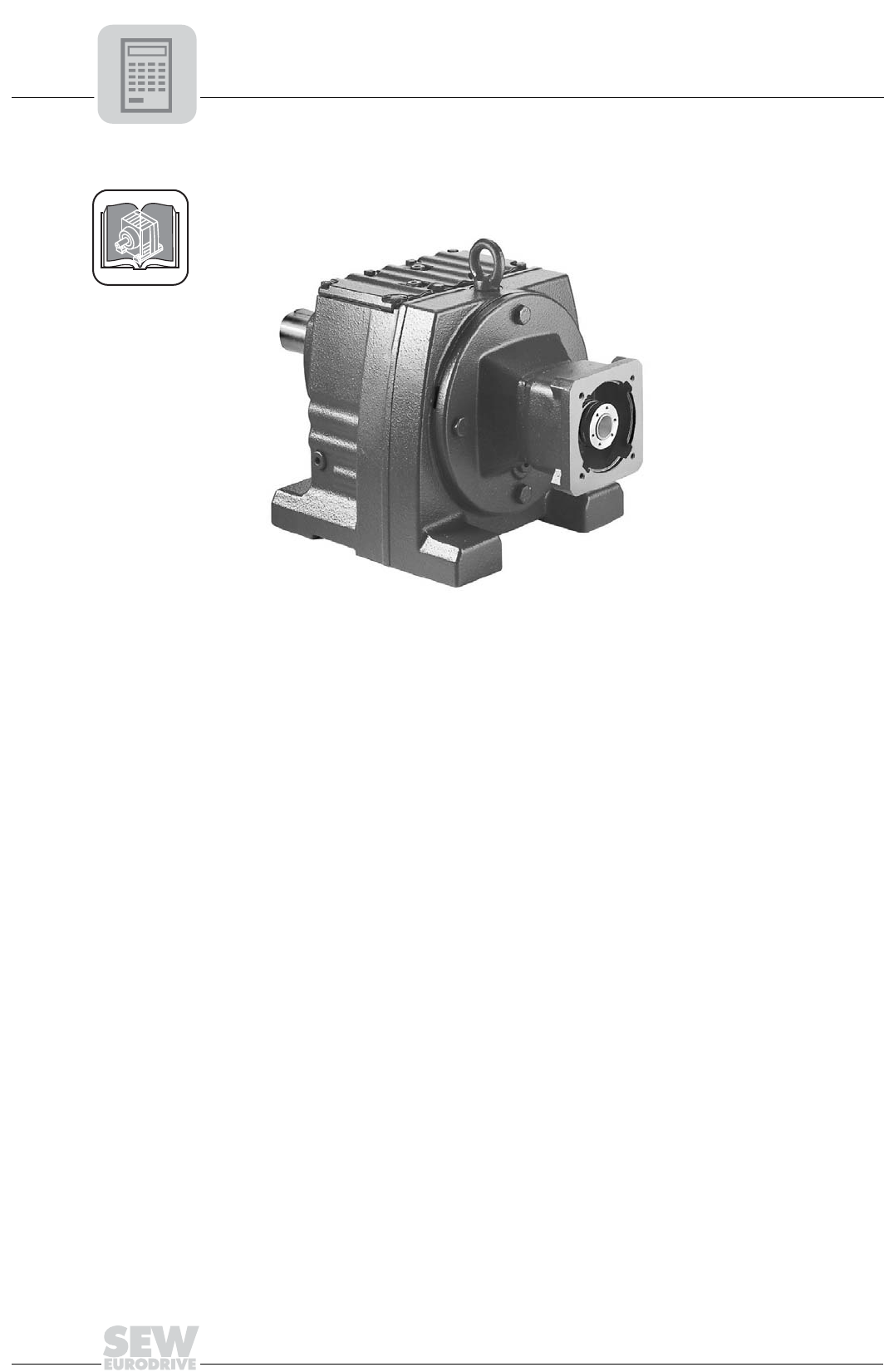

Figure 16: Helical gear unit with AQ adapter
