5.2 Oil compensator
The oil compensator allows the lubricant/air space of the gear unit to expand. This
means no lubricant can escape the breather valve at high operating temperatures.
SEW-EURODRIVE recommends to use oil compensators for gear units and gearmotors
in M4 mounting position and for input speeds > 2000 rpm.
The oil compensator is suppled as assembly kit. It is intended for mounting onto the
gearmotor. However, if installation space is limited or if the compensator is intended for
gear units without motor, it can be mounted to nearby machine parts.
59648AXX

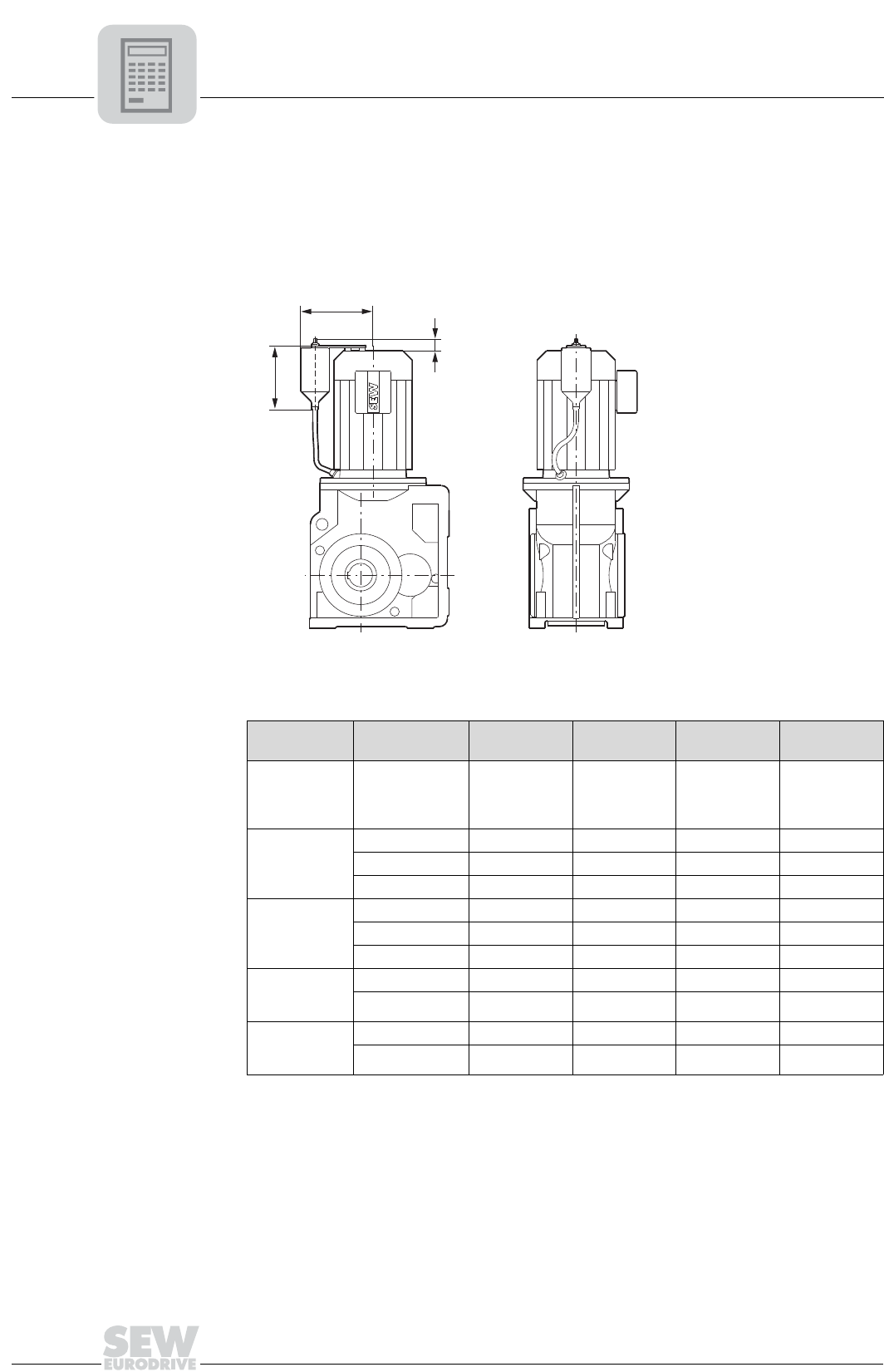

Figure 7: Oil compensator
Gear unit Motor Package no. Dimension a
[in]
Dimension b
[in]
Dimension c
[in]
R27 ... R67
F37 ... F67
K37 ... K67
S37 ... S67
DT80 ... DV132 0045 627 6 3.35 7.80 1.59
R77 ... R87
F77 ... F87
K77 ... K87
S77 ... S87
DT80 ... DV100 0045 648 9 3.35 7.80 1.59
DV112 ... DV132 0045 628 4 3.35 11.93 1.59
DV160 ... DV180 0045 649 7 3.35 11.93 1.59
R97 ... R137
F97 ... F107
K97 ... K107
S97
DT80 ... DV100 0045 629 2 3.35 7.80 1.59
DV112 ... DV132 0045 650 0 4.92 11.93 1.59
DV160 ... DV250 0045 630 6 4.92 11.93 1.59
R147
F127
K127
DV132 0045 631 4 4.92 11.93 1.59
DV160 ... DV280 0045 632 2 4.92 11.93 1.59
R167
F157
K157 ... K187
DV160 ... DV180 0045 633 0 4.92 11.93 1.59
DV200 ... D315 0045 634 9 4.92 11.93 1.59
b
c
a
