Types of components on the input side
Unit Designations and Versions
3.12 Types of components on the input side
The following figure shows the types of components on the input side:
52191AXX

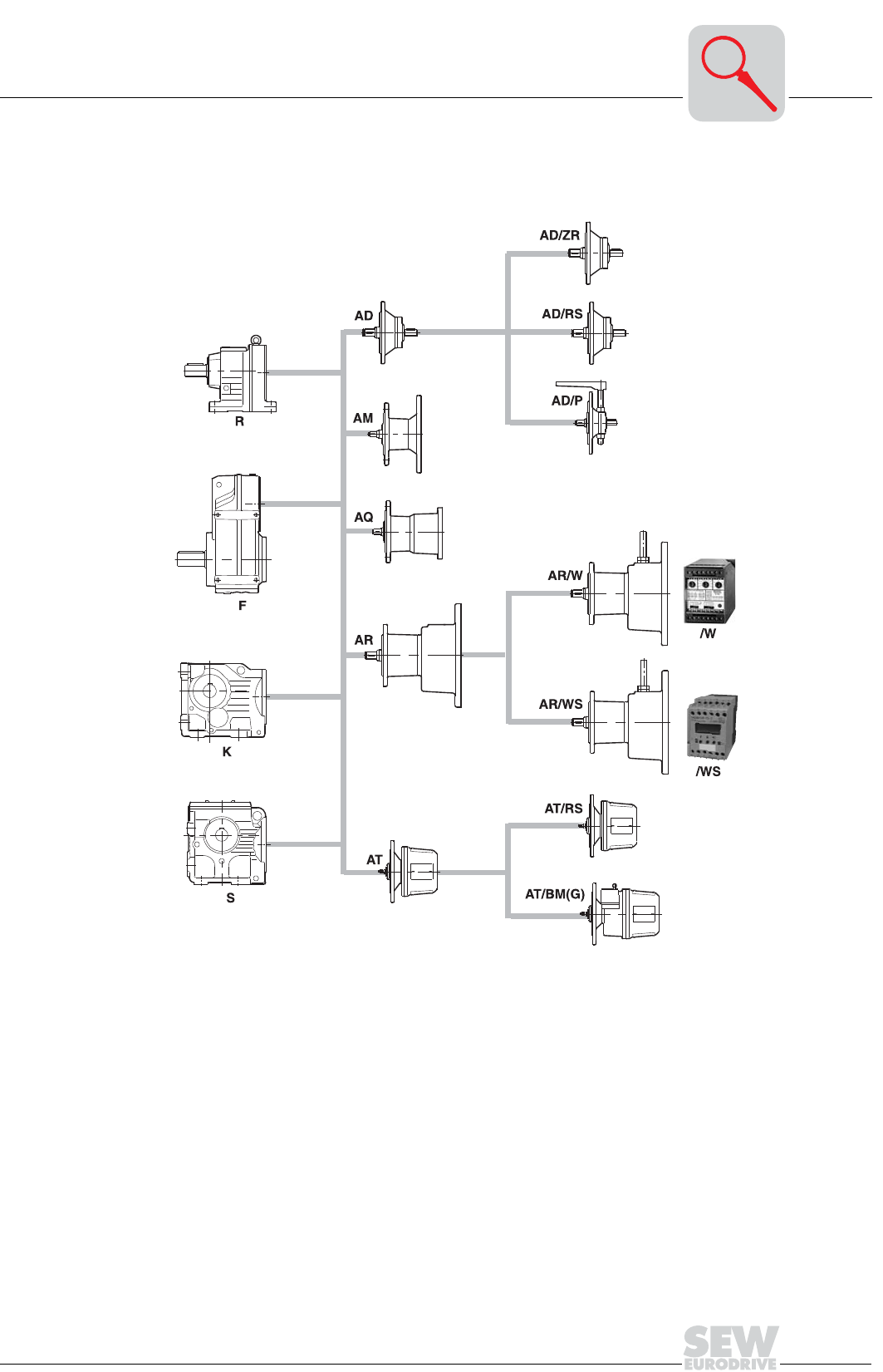

Figure 5: Overview of components on the input side
AD Input shaft assembly AR/W Adapter with torque limiting coupling
and speed monitoring
AD/ZR Input shaft assembly with centering
shoulder
AR/WS
1)
1) Only in conjunction with Varigear
®
variable speed gear unit
Adapter with torque limiting coupling
and slip monitoring
AD/RS Input shaft assembly with backstop /W Speed monitor
AD/P Input shaft assembly with motor mount-
ing platform
/WS Slip monitor
AM Adapter for mounting IEC/NEMA
motors
AT Adapter with hydraulic centrifugal
coupling
AQ Adapter for mounting servomotors AT/RS Adapter with hydraulic centrifugal
coupling and backstop
AR Adapter with torque limiting coupling AT/BM(G) Adapter with hydraulic centrifugal
coupling and disc brake
