Example for the unit designation of a gear unit
Unit Designations and Versions
3.4 Example for the unit designation of a gear unit
The unit designation of the gear unit starts from the component on the output end. For
example, a helical-bevel multi-stage gear unit with a NEMA C-face adapter has the fol-
lowing unit designation:
Other examples:
• FH 47 /R /G AQH 100/3
– Gear unit type: FH parallel shaft helical gear unit with hollow shaft and shrink disc
– Gear unit size: 47
– Gear unit option: /R Reduced backlash version
– Gear unit option: /G Rubber buffer
– Gear unit component on the input side: AQH 100/3 Adapter for mounting servo-
motors with size 100/3 clamping ring hub
K 107 R 87 AM 145 /RS
Gear unit component option on the input side
Gear unit component size on the input side
Gear unit component type on the input side
Gear unit size
2nd Gear unit
Gear unit type
Gear unit size
1st Gear unit
Gear unit type
59827US07

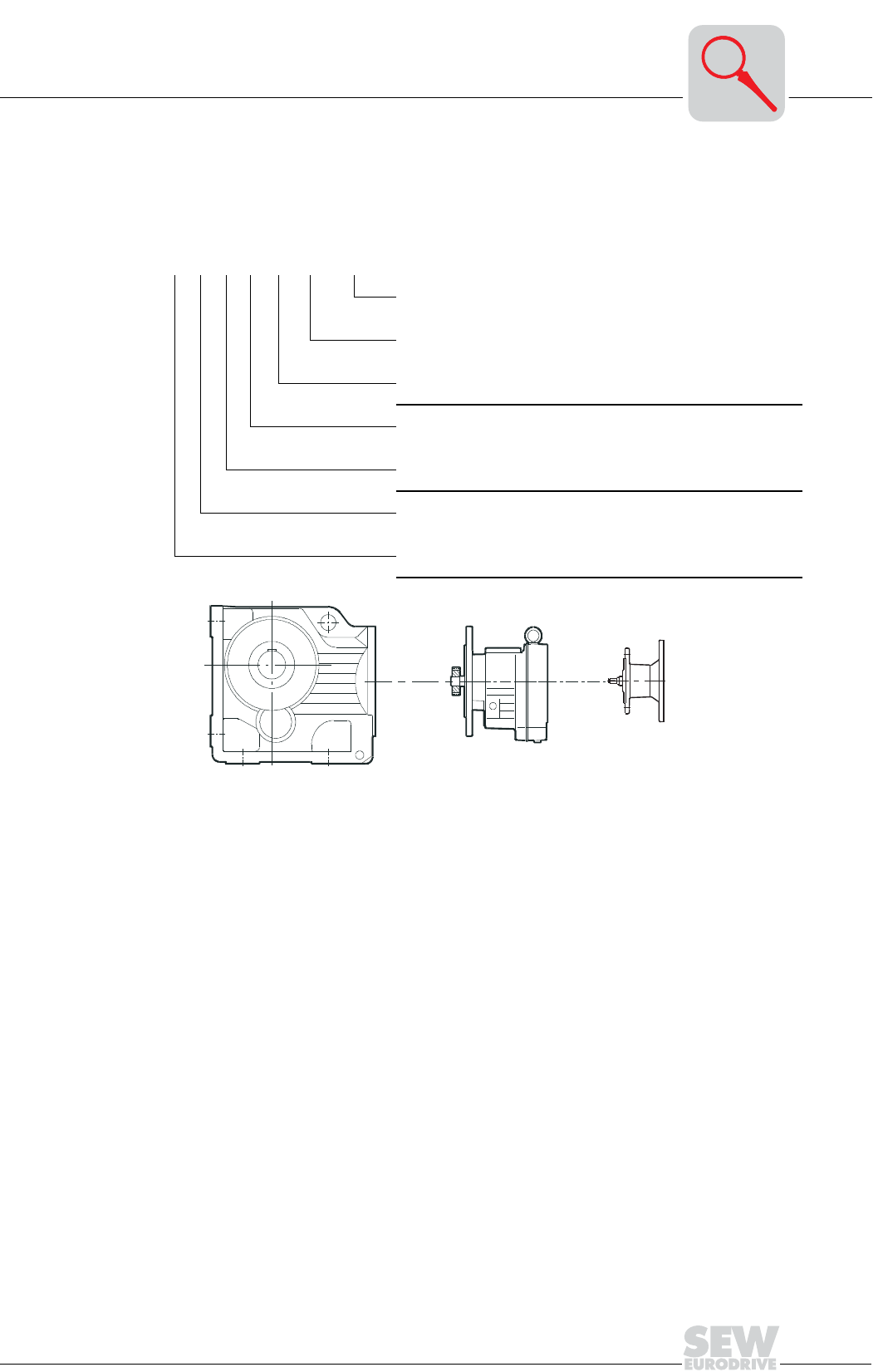

Figure 2: Example for the unit designation of a gear unit
K107 R87 AM145
