Mounting position designation MOVIMOT® drives
Mounting Positions and Important Order Information
9.10 Mounting position designation MOVIMOT
®
drives
Position of
terminal box and
cable entry
Mounting
positions

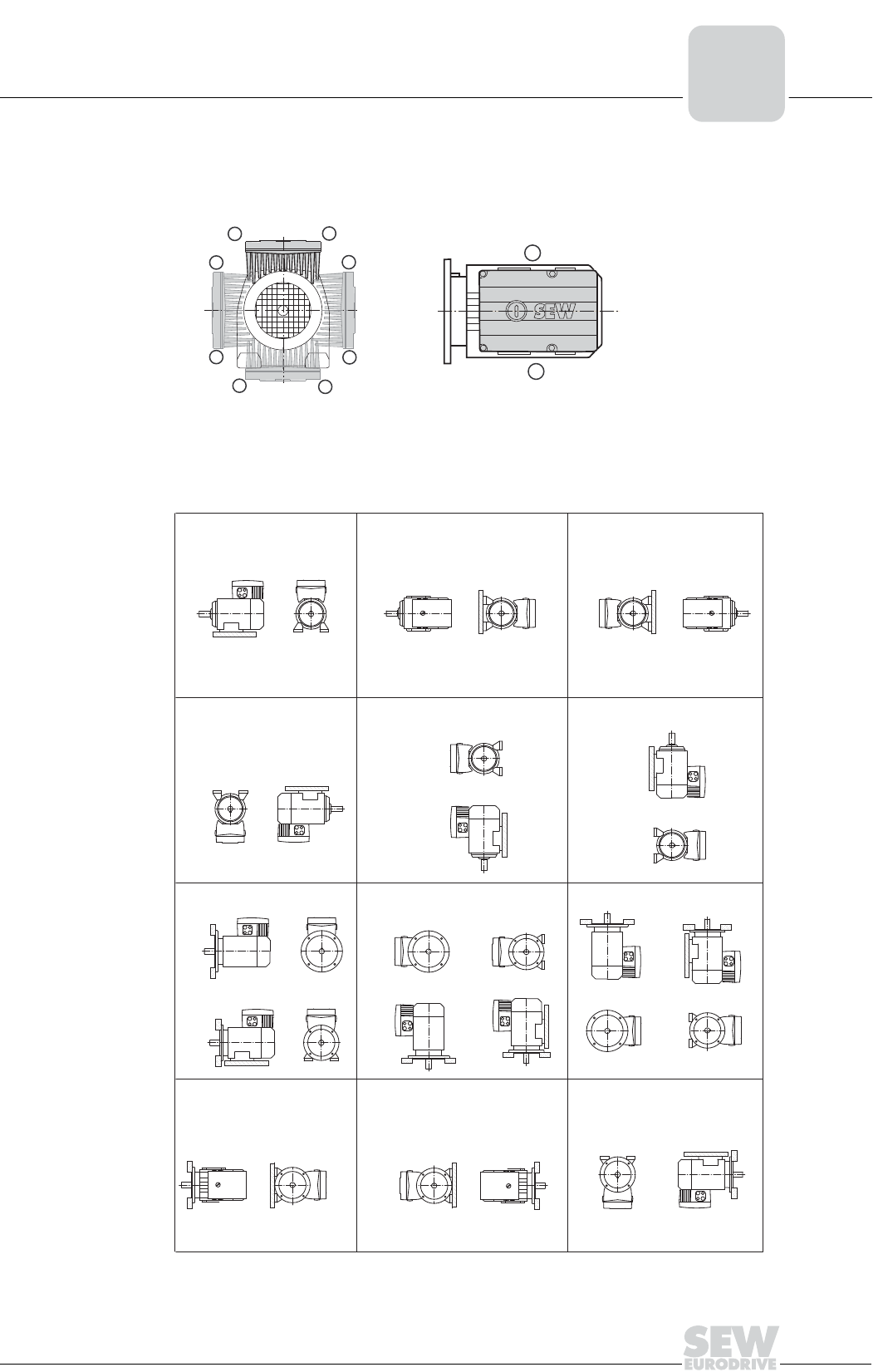

59151AXX
Figure 90: Position of terminal box and cable entry
270° (T)
90°(B)
(R) 0°
180° (L)
2
X
X
2
2
X
2
X
2
X
04375AXX
Figure 91: Mounting positions of MOVIMOT
®
drives
0˚
270˚
90˚
180˚
270˚
0˚
90˚
180˚
90˚
270˚
0˚
180˚
270˚
180˚
90˚
0˚
180˚
90˚
0˚
270˚
270˚
0˚
90˚
180˚
270˚
180˚
0˚
90˚
270˚
90˚
0˚
180˚
90˚
0˚
270˚
180˚
0˚
90˚
180˚
270˚
0˚
90˚
180˚
270˚
180˚
90˚
270˚
0˚
90˚
180˚
270˚
0˚
0˚
270˚
180˚
90˚
270˚
180˚
90˚
0˚
B3
B6 B7
B8
V5 V6
B5
V1 V3
B35
V36V15
B85
B65
B75
M1…M6M1 … M6
