Important order information
Mounting Positions and Important Order Information
Applies to all
MOVIMOT
®
gearmotors
The following information applies to MOVIMOT
®
gearmotors in addition to the gear-
motors.
Position terminal
box and cable
entry
Position of the terminal box (MOVIMOT
®
inverter):
Not all positions are possible with MOVIMOT
®
gearmotors. Note the information in
section "Position of the terminal box (MOVIMOT
®
inverter)" on page 180.
Position of the cable entry:
You do not have to select the position of the cable entry for MOVIMOT
®
gearmotors.
Positions "X" (= standard position) and position "2" are always possible (see Figure 87).
Position of plug connectors options:
You will have to select the position for MOVIMOT
®
optional plug connectors (e.g. ASA3)
(see Figure 87).
Not all position are possible. See the notes in the section "Mounting Positions, Technical
Data and Dimension Sheets MOVIMOT
®
".

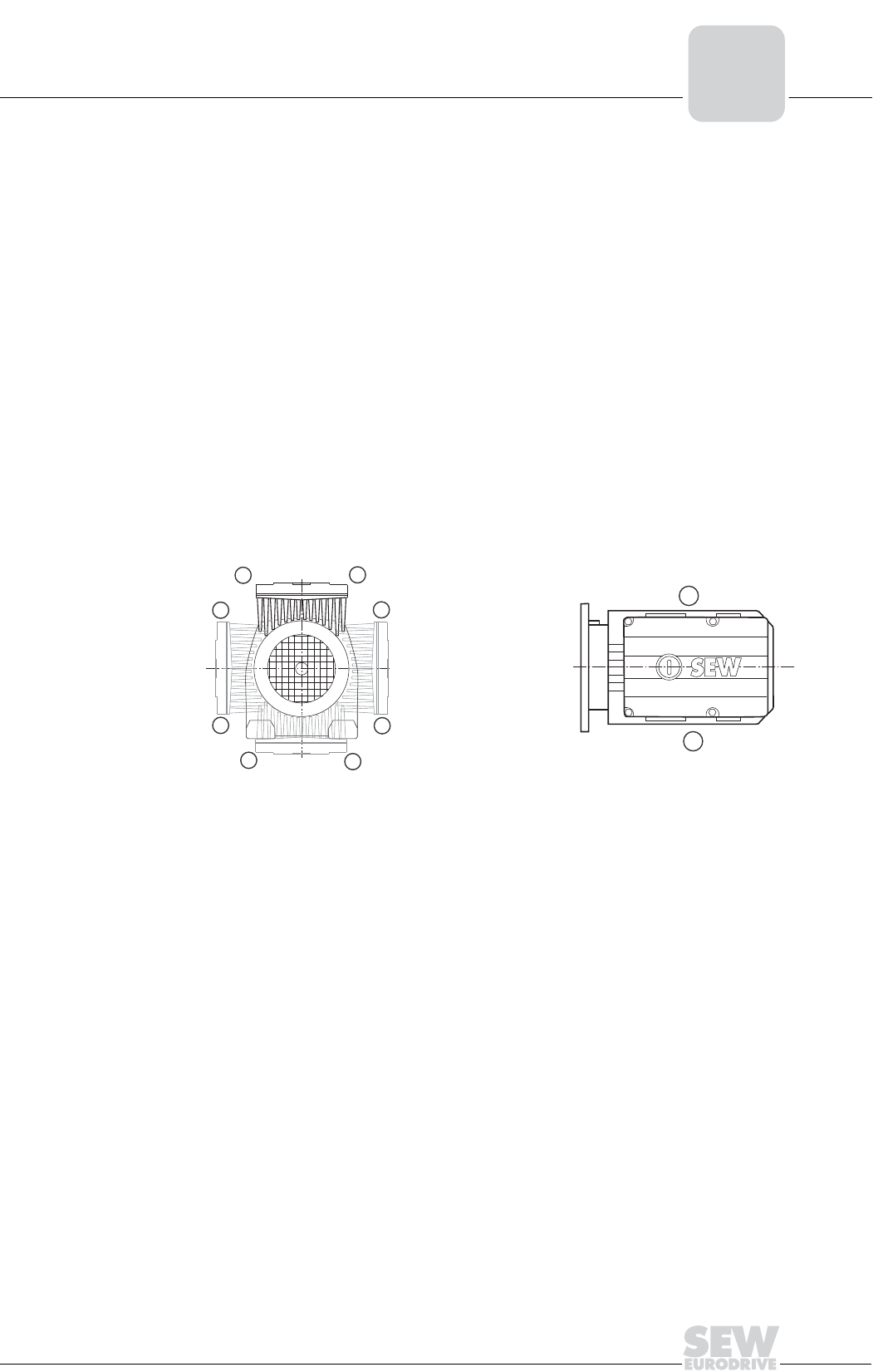

50947AXX
Figure 87: Position terminal box and cable entry, plug connectors
270 ˚ (T)
90
˚ (B)
(R) 0
˚
180 ˚ (L)
2
X
X
2
2
X
2
X
2
X
M1…M6M1 … M6
