Manual – Gear Units and Gearmotors
Important order information
Mounting Positions and Important Order Information
For all
gearmotors
Observe the following notes for all gearmotors and MOVIMOT
®
gearmotors from SEW-
EURODRIVE.
Position terminal
box and cable
entry
The position of the motor terminal box has so far been specified indicated with 0°, 90°,
180° or 270° as viewed onto the fan guard = B-end (→ Figure 86). A change in the
product standard EN 60034 specifies that the following designations will have to be
used for terminal box positions for foot-mounted motors in the future:
• As viewed onto the output shaft = A-end
• Designation as R (right), B (bottom), L (left) and T (top)
This new designation applies to foot-mounted motors without a gear unit in mounting
position B3 (= M1). The previous designation is retained for gearmotors. Figure 86
shows both designations. Where the mounting position of the motor changes, R, B, L
and T are rotated accordingly. In motor mounting position B8 (= M3), T is at the bottom.
The position of the cable entry can be selected as well. The positions are "X" (= standard
position), "1", "2" or "3" (→ Figure 86).
Unless indicated otherwise, you will receive the terminal box type 0° (R) with cable entry
"X". We recommend selecting cable entry "2" with mounting position M3.
51302AUS07

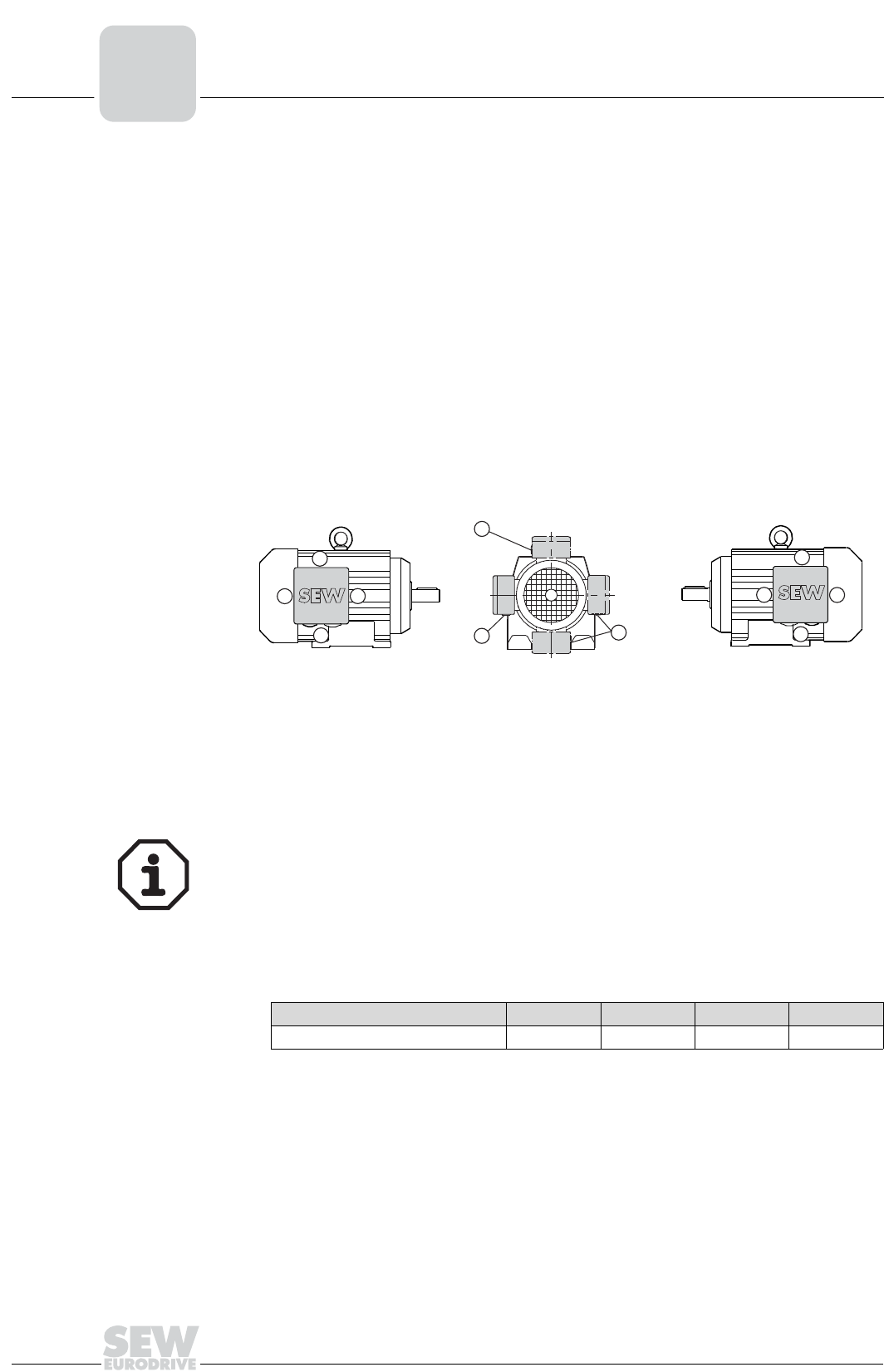

Figure 86: Position of terminal box and cable entry
270°
90°
180°
0° (R)
0°(R)
180° (L)
1
X
X
X
X
3
2
1
3
X
2
(T)
(L)
(B)
• When the terminal box is in the 90° (B) position, check to see if the gearmotor has
to be supported.
• Only cable entries "X" and "2" are possible for DT56 and DR63 motors. Exception:
Cable entry "3" is also possible for DR63 with IS plug connector.
• The following cable entries are possible in the DT71..BMG motor with gear unit
flange diameters 160 mm and 200 mm:
Terminal box position 0° (R) 90° (B) 180° (L) 270° (T)
Possible cable entries "X", "3" "X", "1", "3" "1", "2" "X", "1", "3"
M1…M6M1 … M6
