Important order information
Mounting Positions and Important Order Information
Position of output
end in right-angle
gear units
In shaft mounted right-angle gear units with a shrink disc, you also have to indicate
whether the A or B end is the output end. In Figure 85, the A end is the output end. The
shrink disc is located opposite the output end.
In shaft mounted right-angle gear units, the "output end" is equivalent to the "shaft
position" of right-angle gear units with solid shaft.
57506AXX

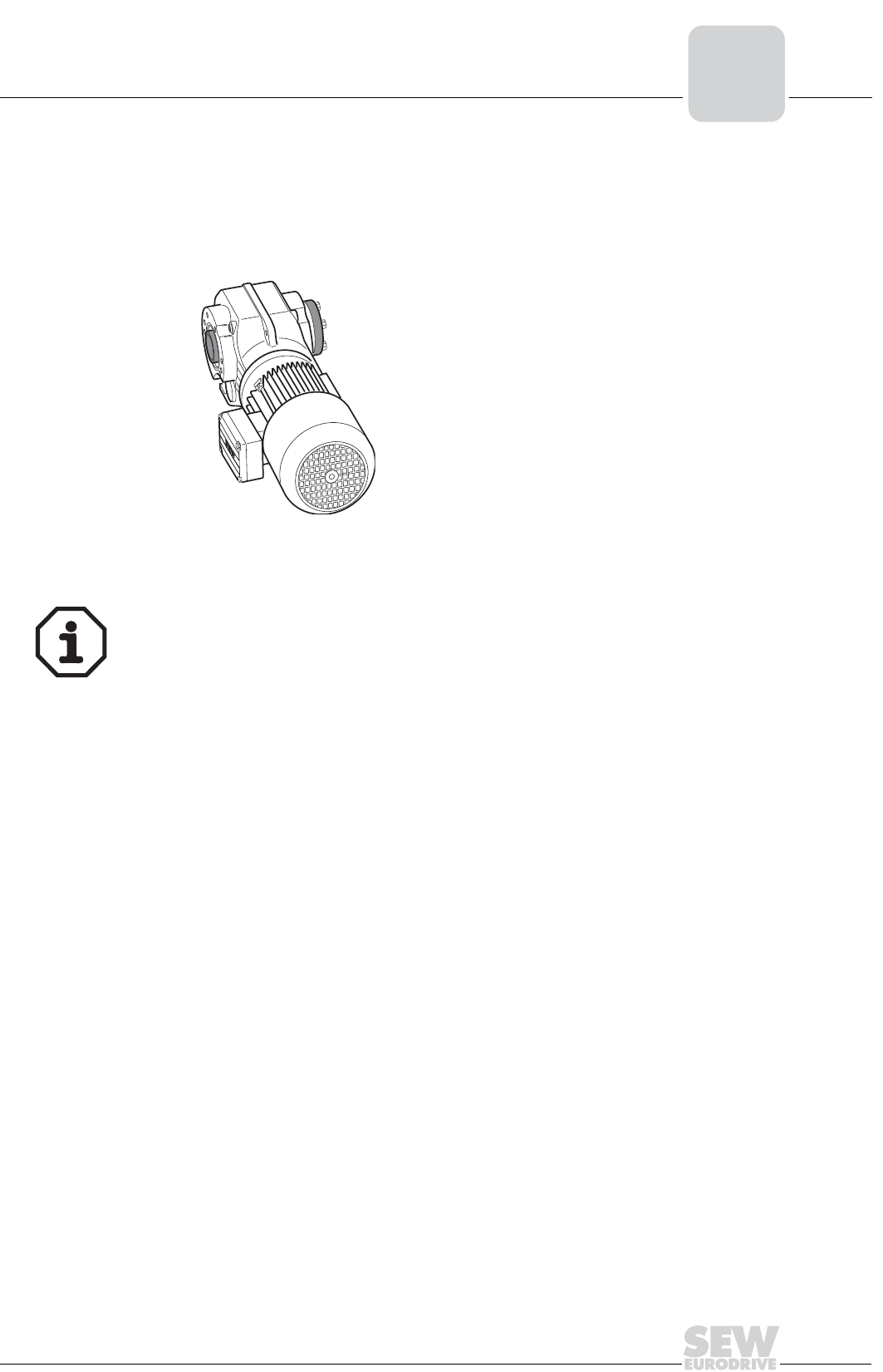

Figure 85: Position of the output end
A
B
You will find the permitted mounting surfaces (= hatched area) in the mounting position
sheets (page 156 and the following pages).
Example: Only the mounting surface at the bottom is possible with helical-bevel gear
units K167/K187 in mounting positions M5 and M6.
M1…M6M1 … M6
