Technical data

Manual – Gear Units and Gearmotors
135
7
MOVIMOT® (→ MM)
Project Planning for AC Motors
4Q operation with
brake and external
braking resistor
• 4Q operation with external braking resistor is recommended for applications in which
the level of regenerative energy is high.
• External braking resistors are only permitted with brake motors in combination with
brake control BGM/BSM.
• When using external braking resistors and BGM/BSM brake control, MOVIMOT
®
special functions must be activated. Refer to the MOVIMOT
®
operating instructions
for more information.
Assignment of external braking resistors:
Power diagrams of external braking resistors:
MOVIMOT
®
MOVIMOT
®
type Braking resistor Part number
with input voltage
380–500 V
AC
MM03..MM15
BW200-300 826 267 5
BW200-005 826 270 5
BW200-003/K-1.5 828 291 9
BW200-005/K-1.5 828 283 8
BW150-010 802 285 2
MM22..MM3X
BW100-003 826 266 7
BW100-005 826 269 1
BW100-003/K-1.5 828 293 5
BW100-005/K-1.5 828 286 2
BW068-010 802 287 9
BW068-020 802 286 0
59788AXX

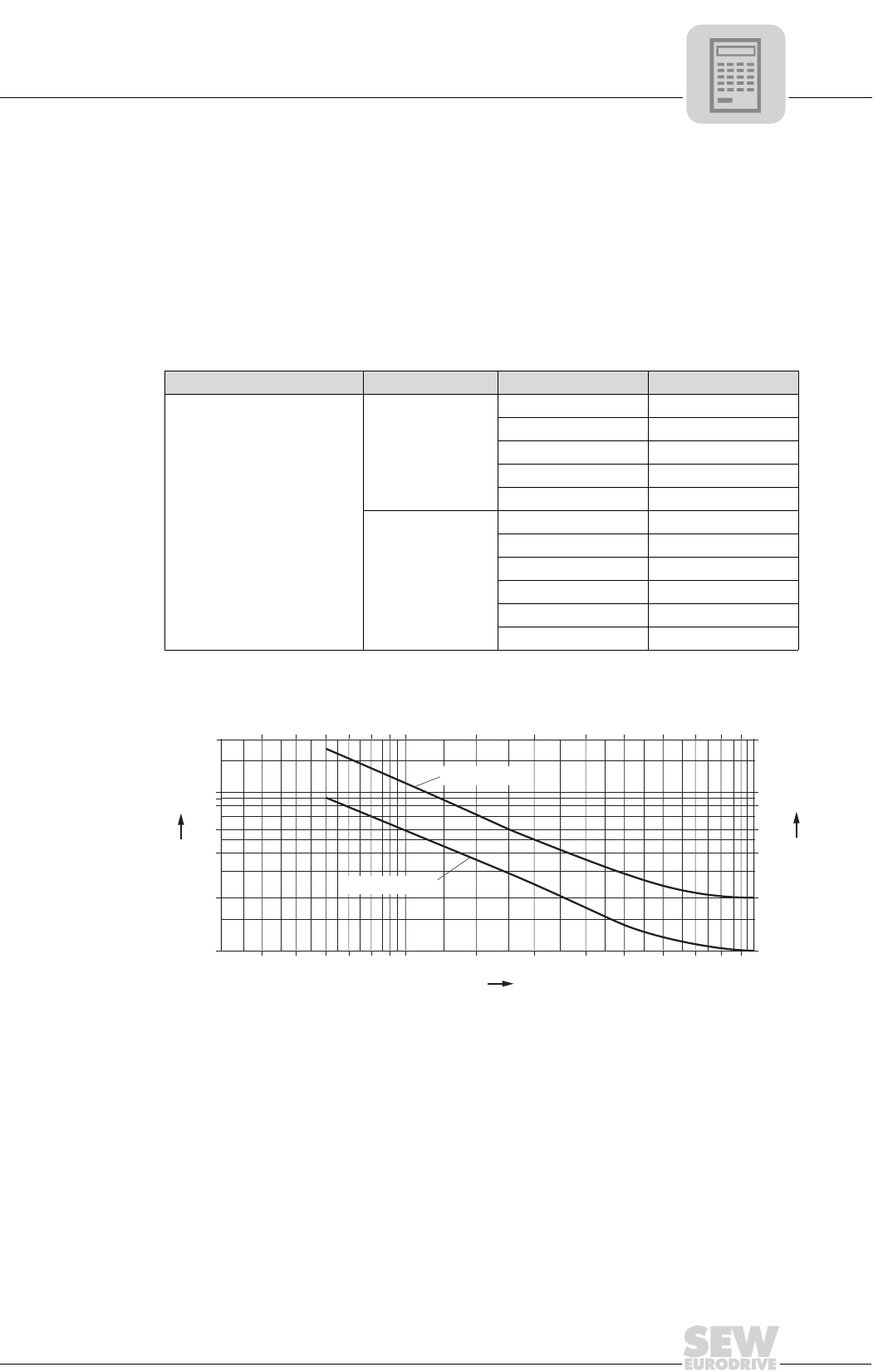

Figure 71: Power diagrams of braking resistors BW100-003, BW200-003, BW100-005 and
BW200-005
[1] Short-term power in kW
[2] Cyclic duration factor cdf in %
[3] Continuous power 100 % cdf in kW
0.2
2.0
0.4
0.6
0.8
0.1
1.0
0.2
2.0
0.4
0.6
0.8
0.1
1.0
[1]
[3]
[2]
6 7 8 9 100345 10 20 30 405060
70
80
6 7 8 9 100345 10 20 30 405060
70
80
100/200 - 005
100/200 - 003
