MOVIMOT® (→ MM)
Project Planning for AC Motors
4Q operation with
integrated braking
resistor BW..
• The brake resistor is integrated in the terminal box of MOVIMOT
®
as standard in
motors without mechanical brake.
• 4Q operation with integrated braking resistor is recommended for applications in
which the level of regenerative energy is low.
• The resistor protects itself (reversible) against regenerative overload by changing
abruptly to high resistance and no longer consuming any more energy. The inverter
then switches off and signals an overvoltage error (error code 04).
• Field distributors or P2.A option for mounting the MOVIMOT
®
unit in close proximity
to the motor, the braking resistor must be ordered separately.
Assignment of internal braking resistors:
52714AXX

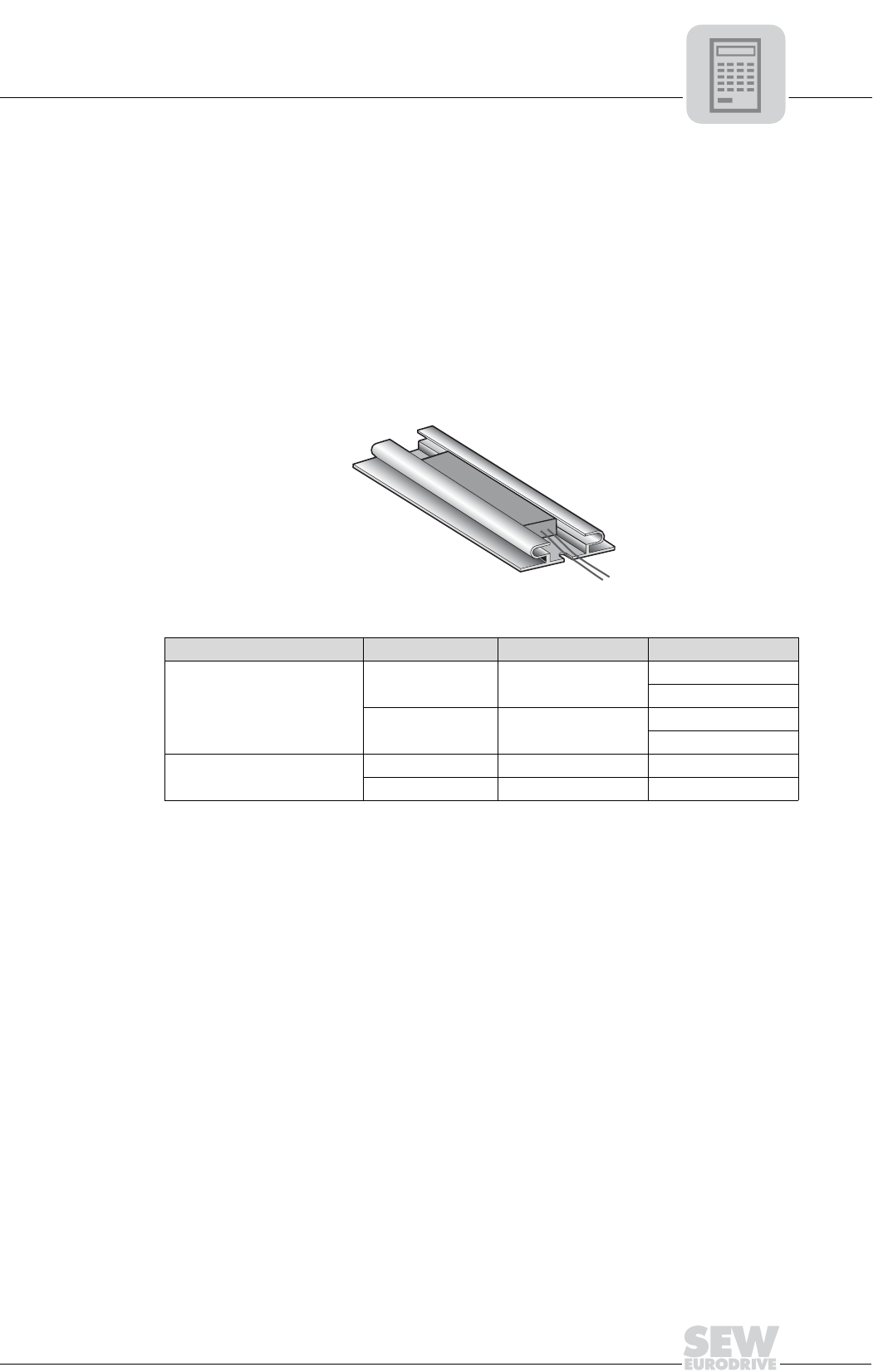

Figure 69: Integrated BW.. braking resistor
MOVIMOT
®
MOVIMOT
®
type Braking resistor Part number
with input voltage
380–500 V
AC
MM03..MM15 BW1
822 897 3
1)
1) Two screws M4 x 8, included in delivery
800 621 0
2)
2) Retaining screws not included in scope of delivery (not available in the US)
MM22..MM3X BW2
823 136 2
1)
800 622 9
2)
with input voltage
200–240 V
AC
MM03..MM07 BW3 823 598 8
2)
MM11..MM22 BW4 823 599 6
2)
