Manual – Gear Units and Gearmotors
MOVIMOT® (→ MM)
Project Planning for AC Motors
7.17 MOVIMOT
®
(→ MM)
General notes Note the following points during project planning for MOVIMOT
®
AC motors:
• For detailed project planning notes, technical data and information on the communi-
cation of MOVIMOT
®
via fieldbus interfaces or RS-485, refer to the system folder
"Decentralized Installation" (MOVIMOT
®
, MOVI-SWITCH
®
, Communication and
Supply Interfaces).
• The use of MOVIMOT
®
for lift applications is limited. Please contact SEW-
EURODRIVE to inquire about suitable solutions with MOVITRAC
®
or MOVIDRIVE
®
.
• The suitable MOVIMOT
®
gearmotor is selected with regard to the speed, power,
torque and spatial conditions of the application (see the selection tables in the
"MOVIMOT
®
Gearmotors catalog). The options are then determined depending on
the control type.
Functional
description
MOVIMOT
®
is the combination of an AC (brake) motor and a digital frequency inverter
in the power range 0.5 ... 5 Hp. It is the perfect match for decentralized drive
configurations.
Features of
MOVIMOT
®
MOVIMOT
®
is the ideal solution for a variety of decentralized drive tasks. The following
functional description provides an overview of the most important features:
• MOVIMOT
®
is a gearmotor with integrated digital frequency inverter in the power
range from 0.5 ... 5 Hp and integrated brake management.
• MOVIMOT
®
is available for the supply voltages 3 × 200...240 V, 50/60 Hz and
3 × 380...500 V, 50/60Hz.
• MOVIMOT
®
is available for rated speeds of 1800 rpm and 3000 rpm.
• The brake coil is used as braking resistor in motors with mechanical brake; an inter-
nal braking resistor will be a standard component of MOVIMOT
®
units for motors
without brake.
• MOVIMOT
®
is available in two designs:
–MM..C-503-00: Standard version
–MM..C-503-30: with integrated AS-interface
MM
04005AXX

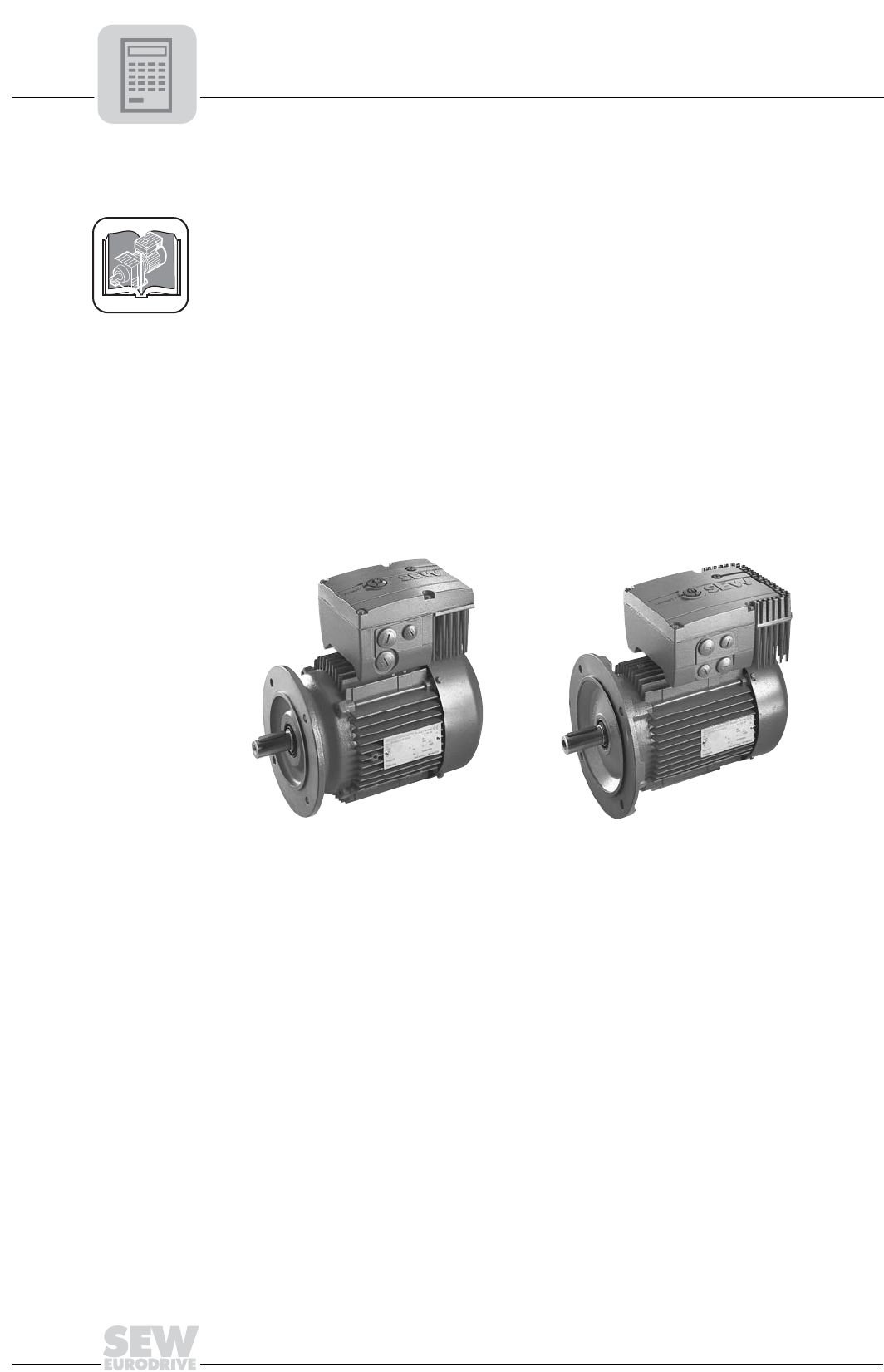

Figure 65: MOVIMOT
®
AC motor
MM03 - MM15
MM20 - MM30
