Encoders and prefabricated cables for encoder connection (→ GM)
Project Planning for AC Motors
Encoder
mounting adapter
The motors can be equipped with various encoder mounting adapters for installing
encoders from different manufacturers.
The encoder is attached to the EV1A (synchro flange) using three encoder mounting
clamps (bolts with eccentric discs) for 3 mm flange thickness.
Absolute encoder The absolute encoders AV1Y from SEW-EURODRIVE are combination encoders. They
contain a multi-turn absolute encoder and a high-resolution sinusoidal encoder.
GM
01949CXX

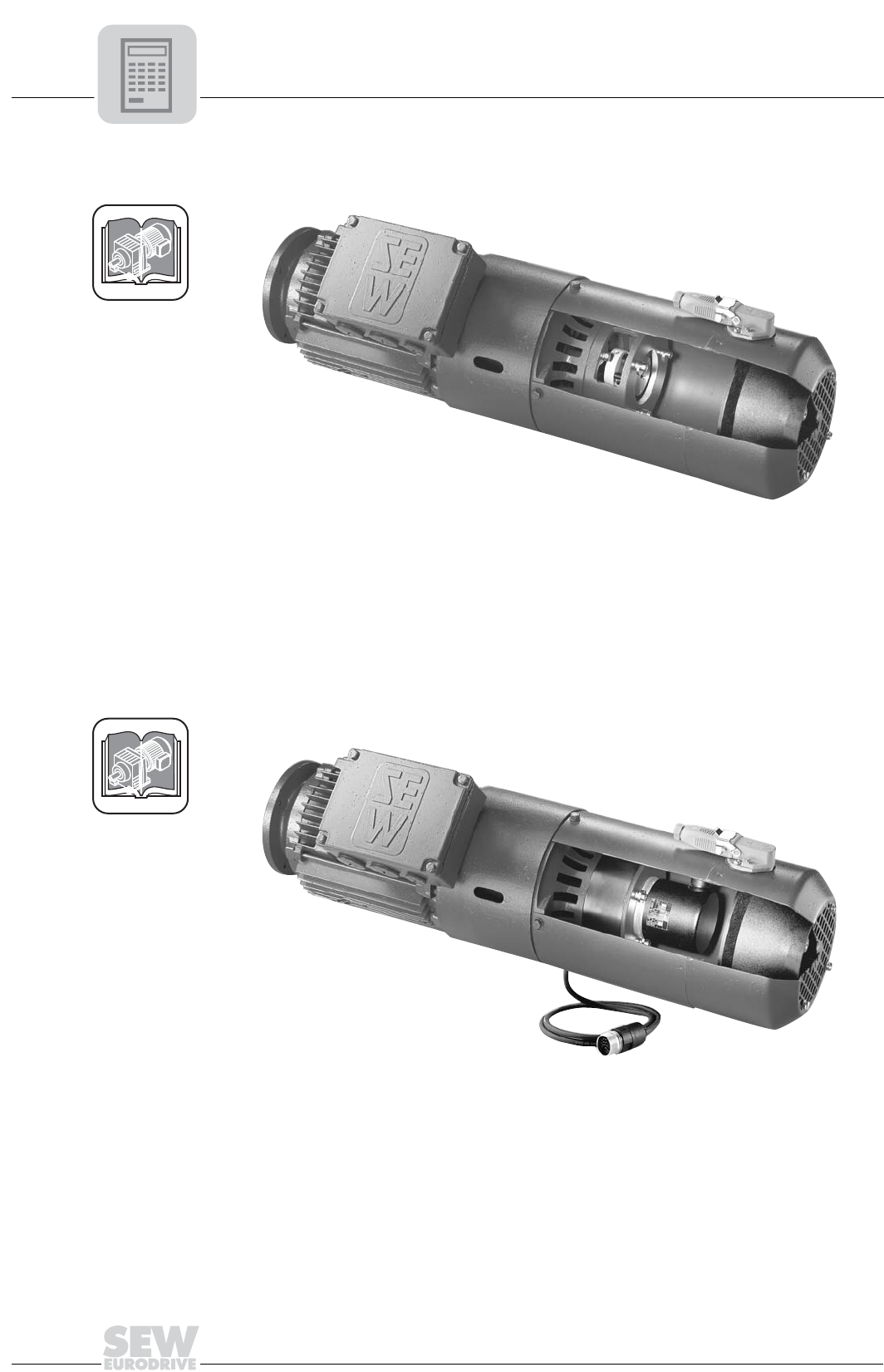

Figure 56: AC motor with encoder mounting adapter EV1A and forced cooling fan VR
GM
03078BXX
Figure 57: AC motor with absolute encoder and forced cooling fan VR
