Technical data

7
116
Manual – Gear Units and Gearmotors
Plug connectors (→ GM)
Project Planning for AC Motors
Plug connectors
AS.., AC.., AM..,
AB.., AD.., AK..
The plug connector systems AS.., AC.., AM.., AB.., AD.. and AK.. are based on plug
connector systems from Harting.
• AS.., AC.. → Han 10E / 10ES
• AM.., AB.., AD.., AK.. → Han Modular
®
The plug connectors are located at the side of the terminal box. They are locked either
using two clamps or one clamp on the terminal box.
UL approval has been granted for the plug connectors.
The mating connector (sleeve housing) with socket contacts is not included in the
scope of delivery.
AS.., AC.. The ten contacts of the AS.. and AC.. plug connector systems connect the motor winding
(6 contacts), the brake (2 contacts) and the thermal motor protection (2 contacts) of sin-
gle speed motors.
Types AS.. and AC.. differ as follows:
• AS = Spring cages
• AC = Crimp contacts and shortened contacts for thermal motor protection
The ASE.. type with single clip longitudinal closure correspond to the DESINA regulation
issued by the Association of German Machine Tool Manufacturers (VDW).
AM.., AB.., AD..,
AK..
Plug connectors AM.., AB.., AD.. and AK.. can be used for connecting single speed mo-
tors.
With brake motors, the brake control system can be either located in the terminal box or
in the control cabinet. All versions of the brake control system are possible.
Some plug connectors may require longer delivery times.
GM
05664AXX

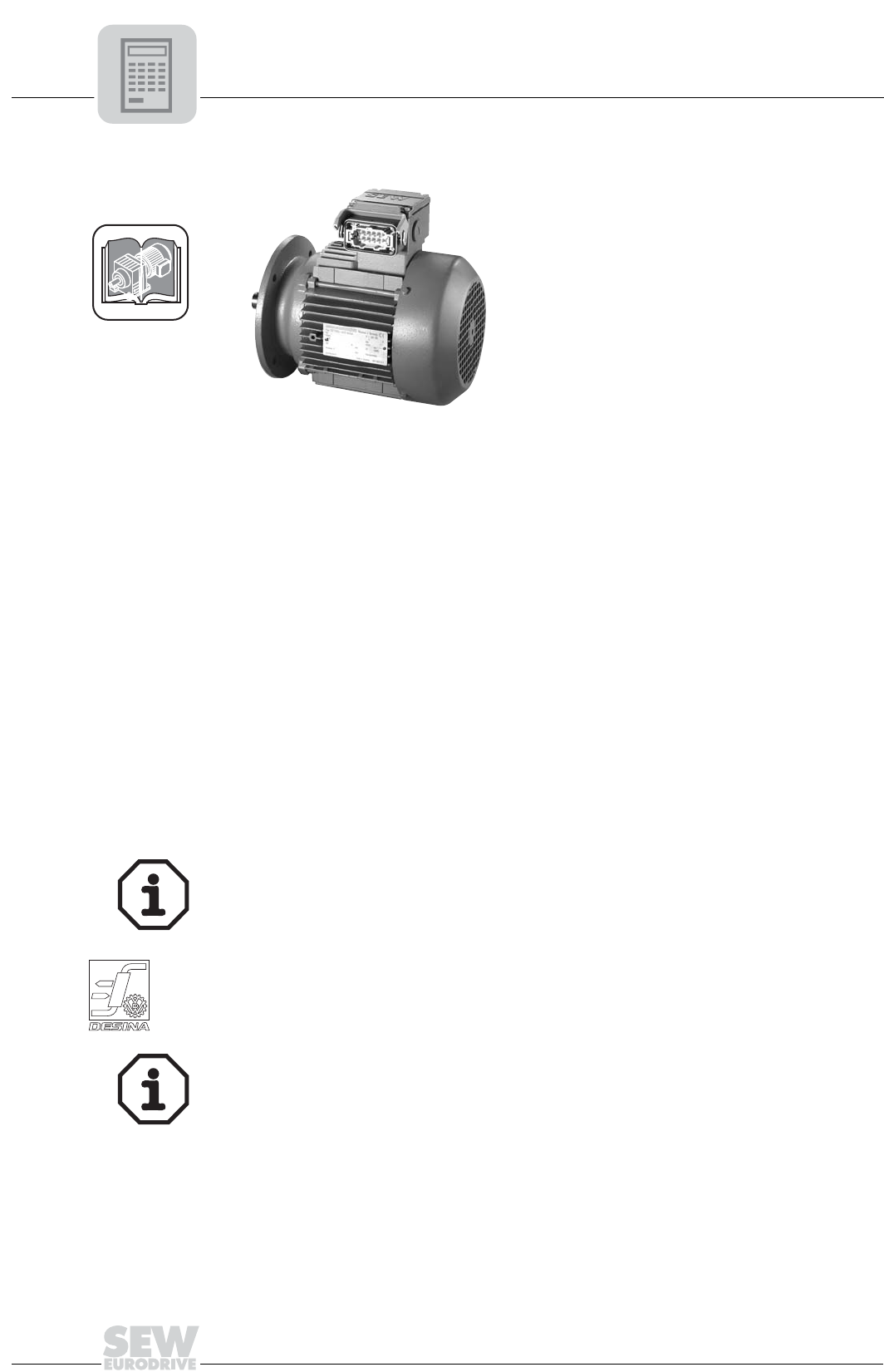

Figure 53: AC motor with ASE.. plug connector
Applies to AS.1 and AC.1:
For brakemotors, you can select the version with brake control in the terminal box only.
In this case, the disconnection in the DC circuit has to take place electronically using
BSR or BUR.
®
Note the following point:
• Cable entry in position 1 is not available for motor sizes DT71... DV132S.
