Plug connectors (→ GM)
Project Planning for AC Motors
IS integrated plug
connector
On request, AC (brake) motors DR63 and DT71 ... DV132S.. can be supplied with the
integrated, 12-pole IS plug connector instead of the standard terminal box. The upper
section of the IS plug connector (mating connector) is included in the scope of delivery.
The IS plug connector is particularly compact and offers the following connection
options:
• Motor, single-speed or two-speed pole changing
•Brake
• Temperature monitoring (TF or TH)
As with the terminal box, the cable run with the IS integrated plug connector can be from
four different directions offset at 90°.
GM
03075AXX

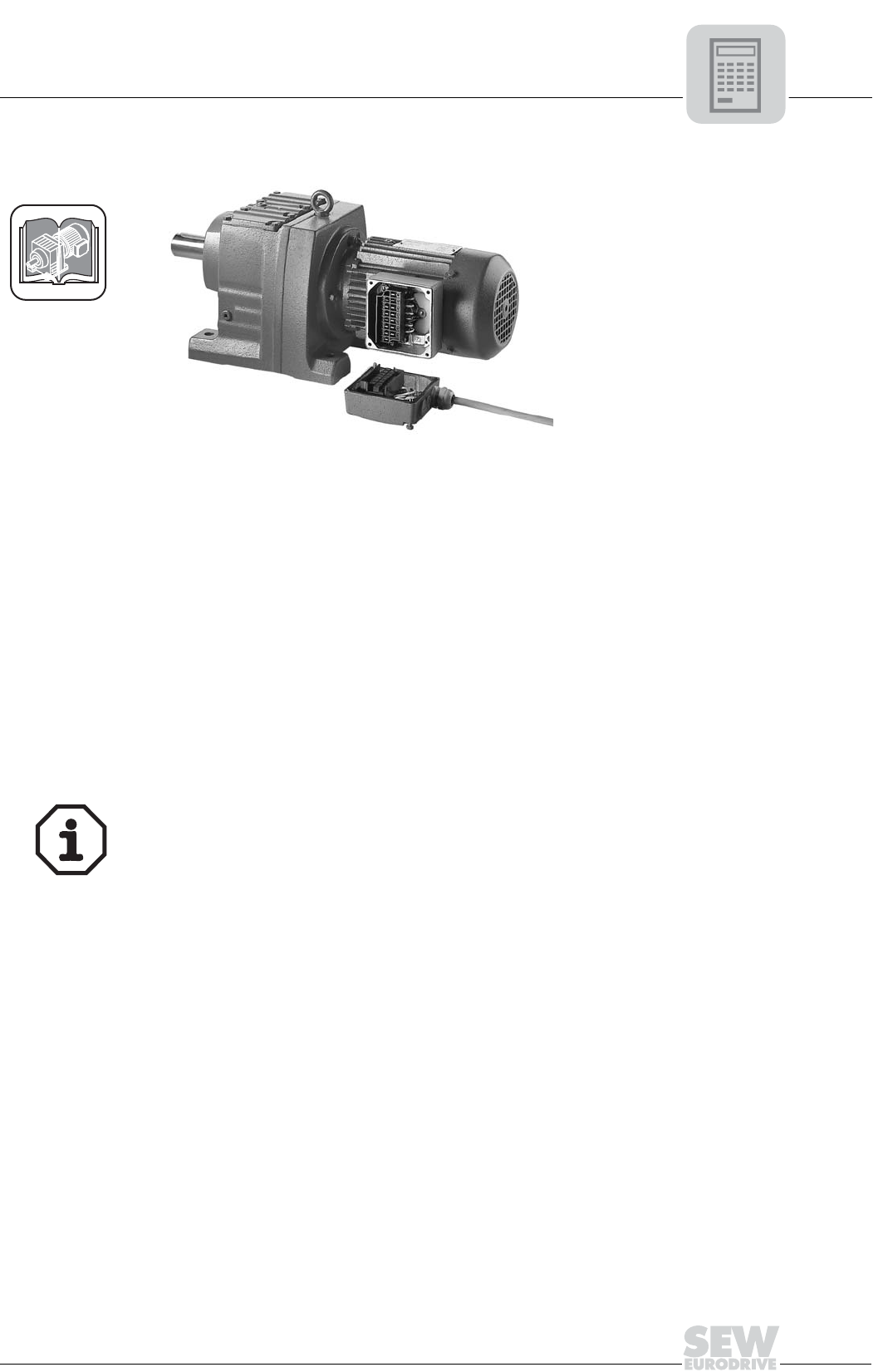

Figure 52: AC gearmotor with IS integrated plug connector
• IS requires a clearance of 30 mm (1.18 in) for removing the connector.
• For DR63 brake motors with IS size 1 only: Only brake control systems BG1.2,
BG2.4, BSR and BUR can be accommodated in the IS plug connector. Other brake
control systems must be installed in the control cabinet.
