7.12 Plug connectors (→ GM)
Contact rating
depending on the
temperature
The "Technical data" tables for plug connectors (→ "Gearmotors" catalog) lists electrical
current values for the maximum permitted contact load (= max. contact load) of the plug
connectors. These current values are valid for ambient temperatures of up to max. 40
°C (104 °F). Higher ambient temperatures apply for reduced current values. The follow-
ing illustration shows the permitted contact load as a function of the ambient
temperature.
GM
06443AXX

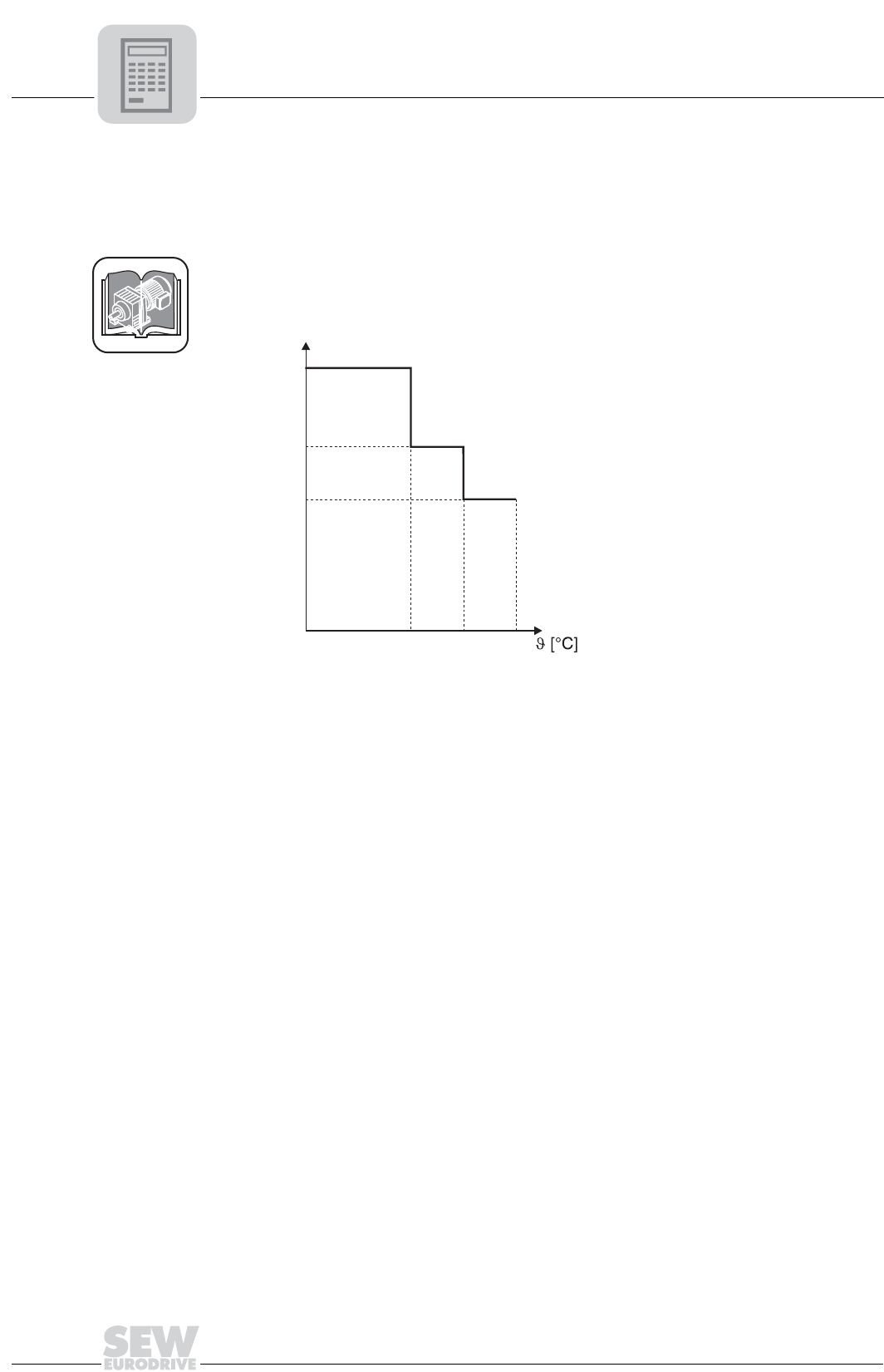

Figure 51: Permitted contact load as a function of the ambient temperature
I
eff
=
Current value of the maximum permitted contact load, 100% = value as listed in the
"Technical data" table (→ "Gearmotors" catalog).
ϑ
=
Ambient temperature
40 60 80
I
eff
50%
70%
100%
