USER MANUAL – Mantis™ II 433.92 MHz Reader
Reader Setup

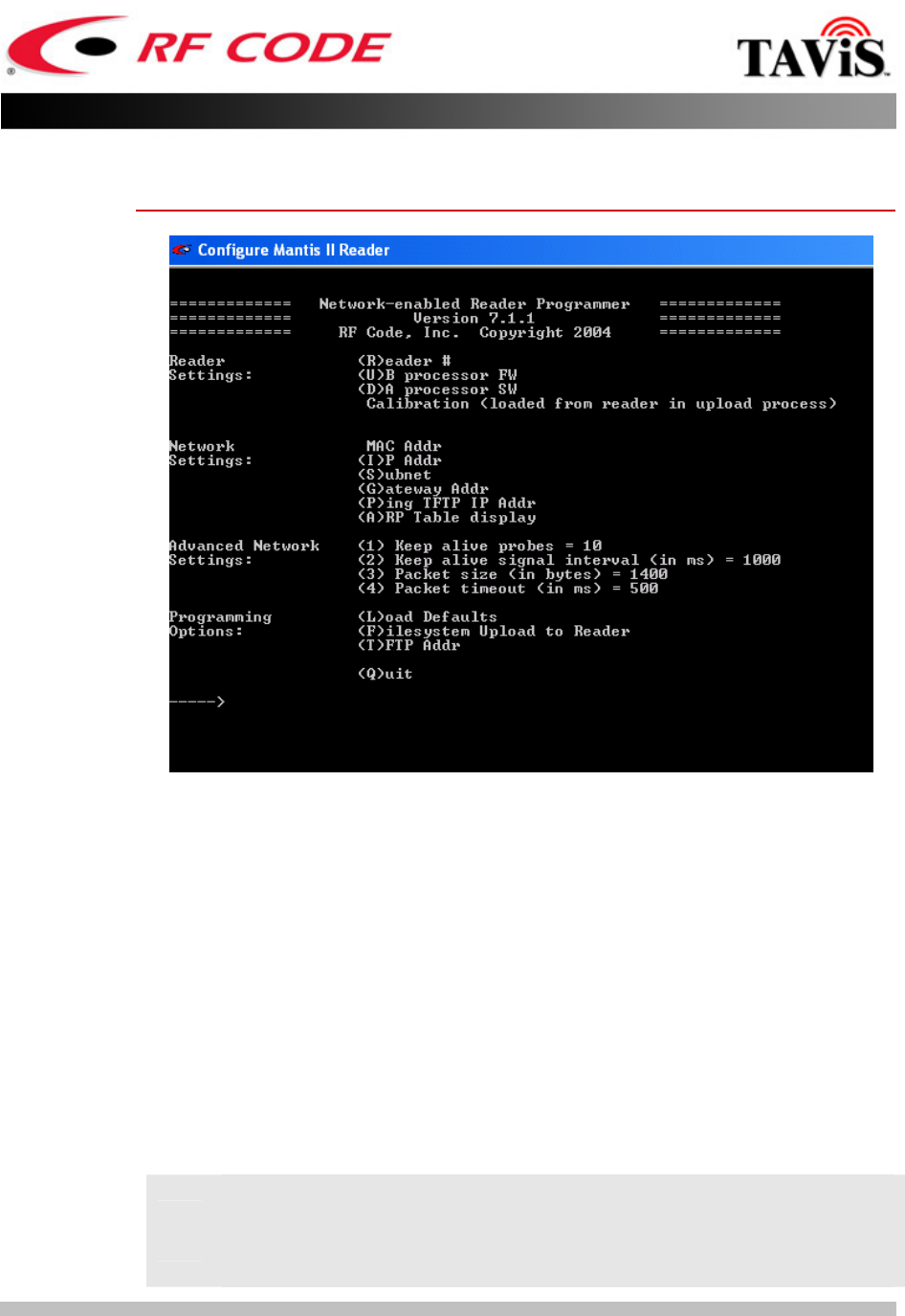

Figure 3.1 – Network-enabled Reader Programmer Utility.
To perform a Reader setup or update:
Step 1 – Launch the Configure Mantis II Reader utility, found in the RF
Code Mantis II Reader program group on the Start Menu. (The location
will be different if the defaults were not used during the install process.)
Step 2 – The Network-enabled Reader Programmer utility appears in a
DOS screen (see Figure 3.1 above). Refer to the commands below:
• Reader Settings – Refer to page 11.
• Network Settings – Refer to page 12.
• Advanced Network Settings – Refer to page 13.
• Programming Options – Refer to page 14.
• Network Installation – Refer to the example on page 15.
U
WARNING – Computer administrative privileges are recommended
when using the network-enabled Reader programmer utility. In the
event of IP resolution conflicts, the utility will attempt to modify the
Address Resolution Protocol (ARP) table. On some systems this can
only be achieved with sufficient privileges.
