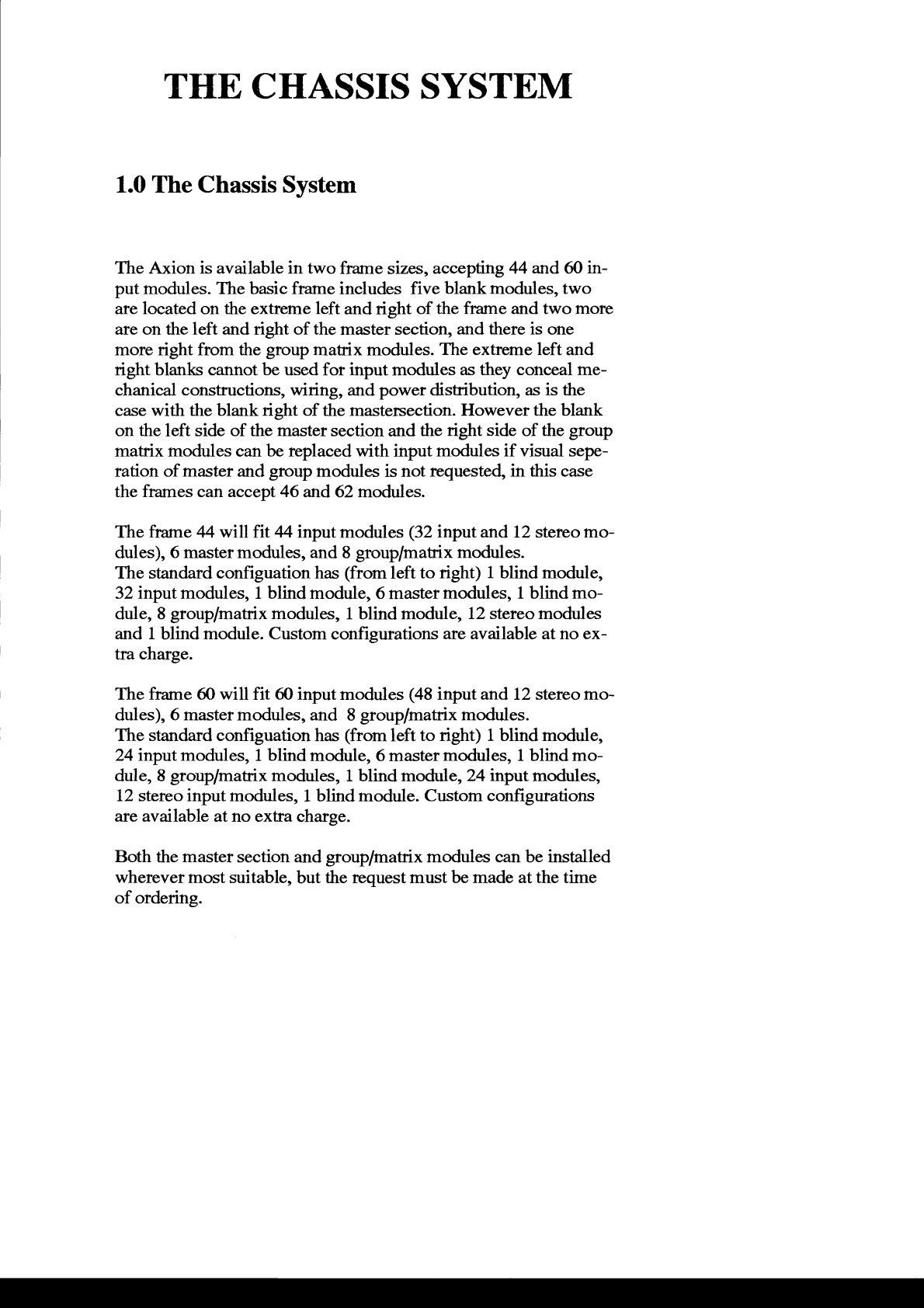

THE
CHASSIS SYSTEM
1.0 The
Chassis System
The Axion is available
in two
frarne sizeso
accepting 44
and 60
in-
put
rnodules. The
basic
frarne
includes five
blank rnodules, two
are located on the extrerne
left
and right
of
the frarne and two
rnore
are
on
the
left
and right of
the
master sectior,
and
there
is one
rnore right frorn the
group
rnafrix
rnodules.
The
extrerne left and
right blanks cannot
be
used
for input
rnodules
as they conceal rne-
chanical constructions, wiring, and
power
distribution,
as
is the
case with the blank
right of
the rnastersectiotr.
However the blank
on the
left side
of the rnaster
section and
the
right side
of
the
group
maffix rnodules can
b"
r*placed with
input
rnodules
if visual sepe-
ration of
rnaster
and
group
rnodules
is
not requested, in this case
the
frames
can
accept 46
and 62 rnodules.
The frarne 44 will fit
44
input rnodul
es
(32
input and
12
stereo rno-
dules),
6 rnaster rnodules,
and I
group/rnafrix tnodules.
The
standard configuation
has
(from
left
to right)
1
blind rnodule,
32
input rnodules,
1
blind
rnodule,
6 master
rnodules, 1
blind
rno-
dule,
8
group/rnatrix
rnodules,
1 blind
rnodule,
12 stereo rnodules
and 1
blind rnodule.
Custorn
configurations
ete
available at
no
ex-
tra
charge.
The
frarne
6O
will
fit
6O
input rnodules
(48
input
and
12
stereo rno-
dules),
6 rnaster rnoduleso
and 8
group/rnatrix
rnodules.
The standard configuation
has
(frorn
left
to right) 1 blind rnodule,
24
input rnodules,
1
blind
rnodule, 6
master
rndules, 1
blind mo-
dule,
8
grouplmatrix rnodules,
1
blind rnodul e,24
input
rnodules,
12 stereo input rnodules,
1
blind rnodule.
Custorn configurations
are available
at no extra
charge.
Both the
rnaster
section
and
group/rnaffix
rnodules can be installed
wherever rnost
zuitable,
but
the
request rnust
be rnade
at
the
time
of ordering.
