Specifications

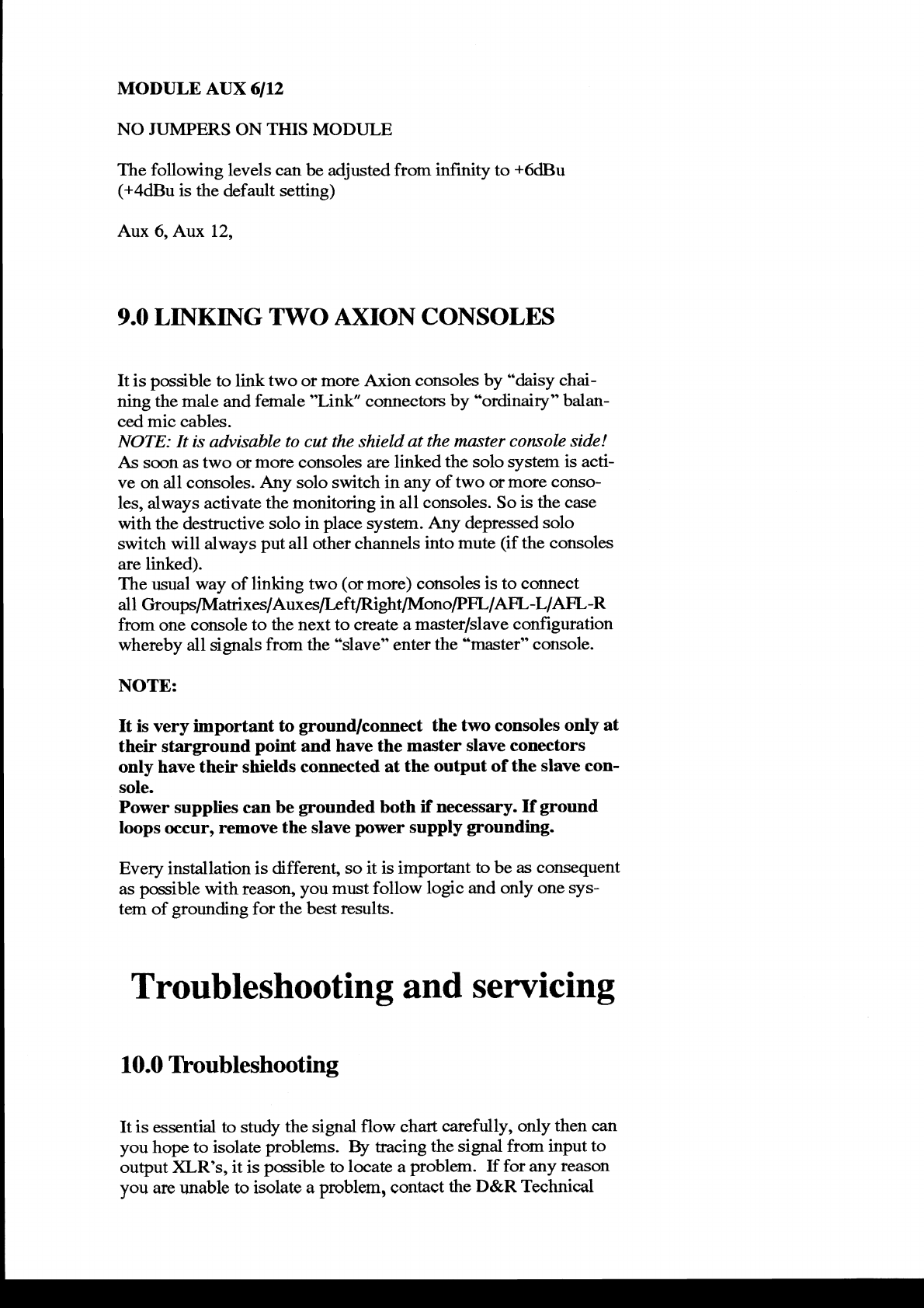

MOrluLE
AUX 6112
NO
JUMPERS
ONTHIS MODULE
The following
levels
can
be adjusted frorn
infinity
to
+6dBu
(++dgu
is the
default
setting)
Aux 6o Aux
12,
9.0
LINKING
TWO AXION
CONSOTES
It is
possible
to link
two or
rnore Axion
consoles
by
"daisy
chai-
ning
the rnale and
fernale
"'Link"
corrrectots
by
"ordinairy"
balan-
ced rnic cables.
NOTE:
It is advisable
to
cut the
shield
at the master
console side!
As soon as two
or
rnore
consoles are
linked
the solo systern
is acti-
ve
on all
consoles.
Arry solo switch in
any
of two or
rnore conso-
les, always activate
the
rnonitoring in
all
consoles. So
is
the case
with the
destructive
solo in
place
systern.
Any
depressed
solo
switch will always
put
all other channels
into
rnute
(if
the
consoles
are linked).
The
usual
way
of linking
two
(or
more)
consoles
is
to
connect
allGroups/h,latrixes/Auxesfl
rft/RightMono/PITI-/AFL-L/AFL-R
frorn
one
console to
the
next to create
a
masterfslave
configuration
whereby all rigtuls
frorn the
"slave"
enter
the
"master"
console.
NOTE:
It
is very
important
to
ground/connect
the two consoles
only
at
their starground
point
and have the
master
slave conectors
only
have
their shields
connected
at
the
output
of
the
slave con-
sole.
Power
supplies
can
be
grounded
both
if
necessary. If
ground
Ioops
occur,
remove
the
slave
power
supply
grounding.
Every installation is
different,
so
it is irnportant
to
be
as consequent
as
possible
with reason,
you
rnust follow
logic
and
only
one
sys-
tern of
grounding
for
the best tesults.
Troubleshooting and
servicing
10.0 Tboubleshooting
It
is
qssential
to study
the signal
flow chart
carefully,
only
then can
you
hope to isolate
problerns.
By tracing
the signal frorn
input
to
output XLR's,
it
is
possible
to
locate a
ptoblern. If for any
reason
you
are
unable
to isolate
a
problem,
contact
the
D&R
Technical
