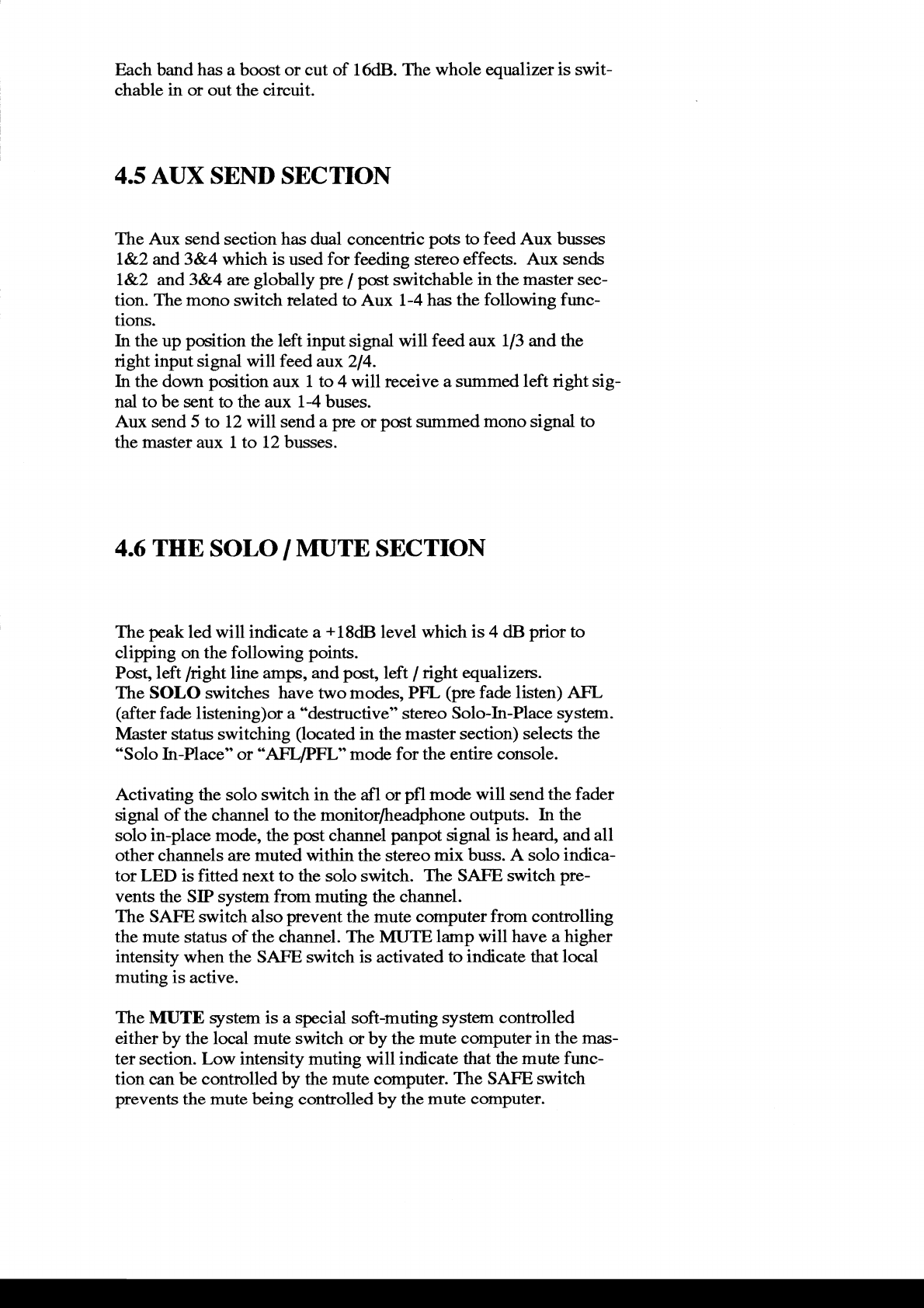

Specifications

Each band
has
a
boost
or cut of
16d8. The
whole equalizer
is swit-
chable
in
or out
the circuit.
4.5 AUX SEIYD SECTION
The
Aux
send
section has
dual
concenftic
pots
to feed
Aux
busses
t&2
and
3&4
which is
used
for
feeding stereo
effects. Aux sends
L&2 and3&4 are
globally
pre
/
post
switchable
in the master sec-
tion. The mono
switch
related
to Aux 1-4 has
the following func-
tions.
In the up
position
the left input signal will feed
aux 1/3 and the
dght input signal will feed u,tx2l4.
In
the down
position
aux 1
to
4 will rcceive
a summed left tight sig-
nal to be sent to the aux 14 buses.
Aux send
5
to 12 will send
a
pre
or
post
summed mono signal
to
the
mastet aux 1 to 12
busses.
4.6
THE SOI,O
I
MUTE
SECTION
The
peak
led will indicate
a
+18d8
level
which
is 4
dB
prior
to
clipping
on
the following
points.
Pmt,
left
/right
line
&ffips, and
post,
left
I
ngltt
equalizens.
The SOLO switches
have
two rnodes, PFL
(pre
fade
listen) AFL
(after
fade
listening)or
a
"destructive"
stereo
Solo-In-Place
systern.
Master status switching
(located
in
the rnaster
section) selects
the
"Solo
In-Place" or
"AFLPFL"
rnode for
the entire console.
Activating the solo switch in the afl or
pfl
rnode
will
send
the fader
signal of the channel to the rnonitor/headphone
outputs.
In the
solo
in-place mode,
the
post
channel
panpot
rignul
is heard, and
all
other channels
are
rnuted
within the stereo
rnix
buss. A solo indica-
tor LED
is fitted next
to the
solo switch. The
SAFE switch
pre-
vents
the SIP systern frorn rnuting the
channel.
The SAtiE
switch
also
prevent
the rnute
cornputer
frorn controlling
the rnute
status of the channel. The MUTE
lump
will have a higher
intensity when the SAFE
switch is activated
to indi
cate
that local
rnuting
is active.
The
MUTE
ryrtern
is a
special soft-rnuting
systern
controlled
either
by
the local rnute
switch
or by the
rnute
cornputer in the rnas-
ter section.
Low intensity muting
will indicate
that the rnute func-
tion
can be controlled
by
the
lnute cornputer.
The SAFE switch
prevents
the rnute
being
confrolled by
the
rnute
cornputer.
