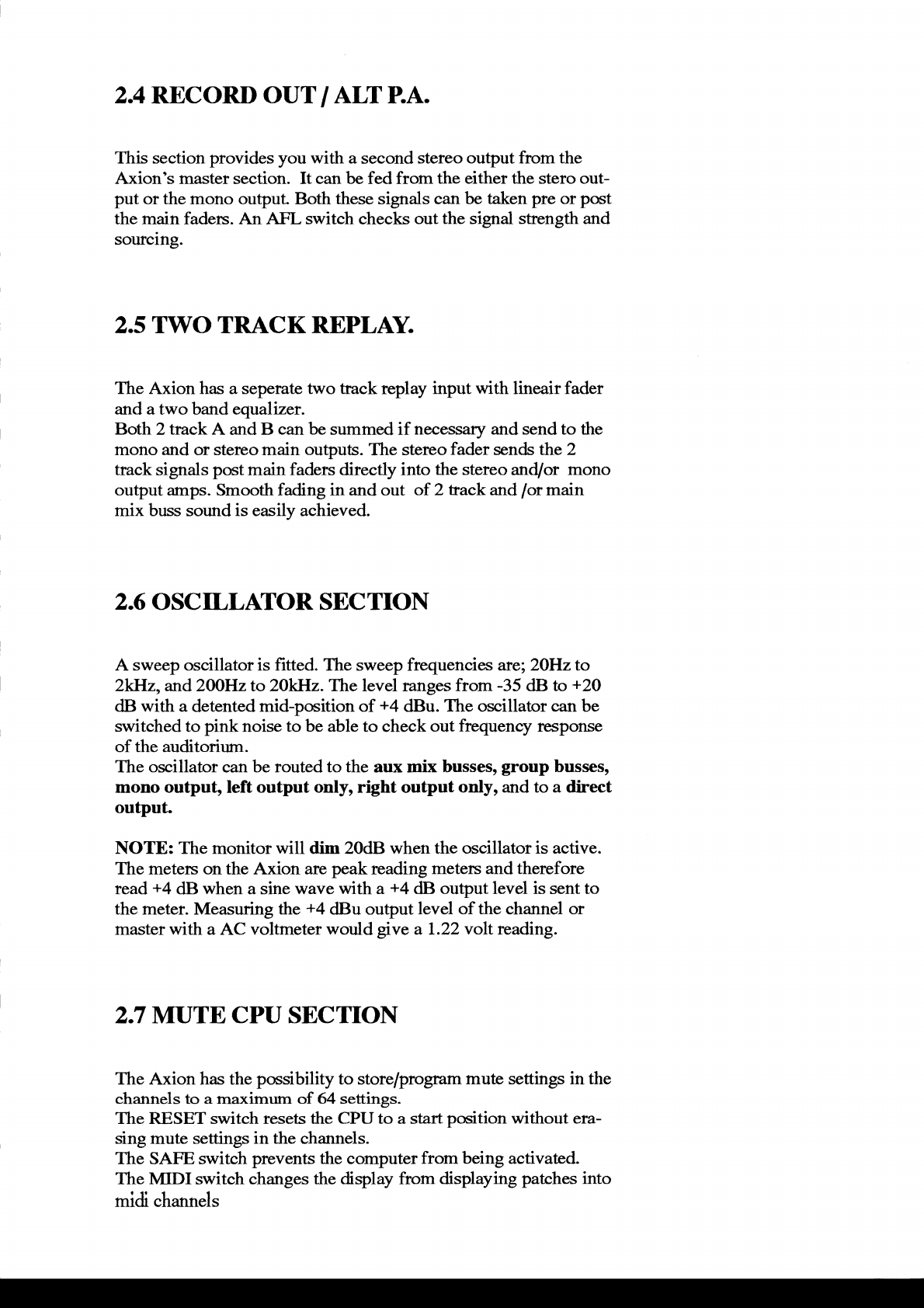

Specifications

2.4
RECORI)
OUT
/
AUr P.A.
This section
provides
you
with a
second
stereo output from the
Axion's
nlaster section.
It
can be fed frorn
the either
the stero
out-
put
or the rnono output. Both these srgnals
can be
taken
pre
or
post
the rnain faders. Arl
AIIL
switch checks
out the signal strength and
sorrcing.
2.5 TWOTRACKREPLAY.
The Axion
has
a seperate
two track
replay
input with
lineair
fader
and a two band equalizet.
Both 2
track
A
and
B
can be
sumrned if
necessary and send to
the
rnono
and
or stereo rnain
outputs.
The
stereo
fader sends the 2
track signals
post
rnain faders
directly
into
the
stereo
and/or rnono
output arnps.
Smooth fading
in and out
of 2
track
and
lor
rnain
rnix buss sound is easily achieved.
2.6 OSCNTATORSECTION
A
sweep oscillator
is
fitted.
The sweep frequencies
are;Z0Hzto
Zl<tlz, ffid 200Hzto 20kHz.1he level ranges
frorn
-35
dB
ta
+2O
dB
with a
detented
rnid-p*ition of
+4
dBu.
The
oscillator can
be
switched to
pink
noise
to be
able to check
out
frequency
response
of the
auditorium.
The oscillator can be
routed to the
aux mix
busses,
group
busses,
mono output, Ieft output only, right output
only,
and to a direct
output.
NOTE: The
rnonitor will dim 20dB when
the oscillator is active.
The
rneters on
the
Axion are
peak
reading
rneters
and therefore
read
+4
dB
when a sine
wave
with
a
+4
dB
outtrrut level is sent to
the rneter. Measuring the
+4
dBu
output
level
of
the channel or
rnaster with a
AC
voltrneter would
grve
a I .22
volt
reading.
2.7 MUTECPU SECTION
The Axion has the
possibility
to
store/prograrn
rnute
settings
in the
charrnels to
a
rnaxirnurn
of 64 settings.
The
RESET
switch resets
the CPU to a start
position
without era-
*ing
rnute settings
in the
channels.
The SAFE
switch
prevents
the cornputer
frorn being
activated.
The MIDI switch changes
the
diupluy
frorn
displaying
patches
into
rnidi channels
