Owner's manual

Operating the machine
24
• Make sure that you do not have any fingers between the basic body
and the plunger!
• Build up some pressure force by moving the hand lever (B) forwards and
backwards until the pellet (PR) and the pressure pieces are ejected from the
die tool.
• Open the shut-off valve (H) by turning in an anti-clockwise direction.
• Remove the pressing plate.

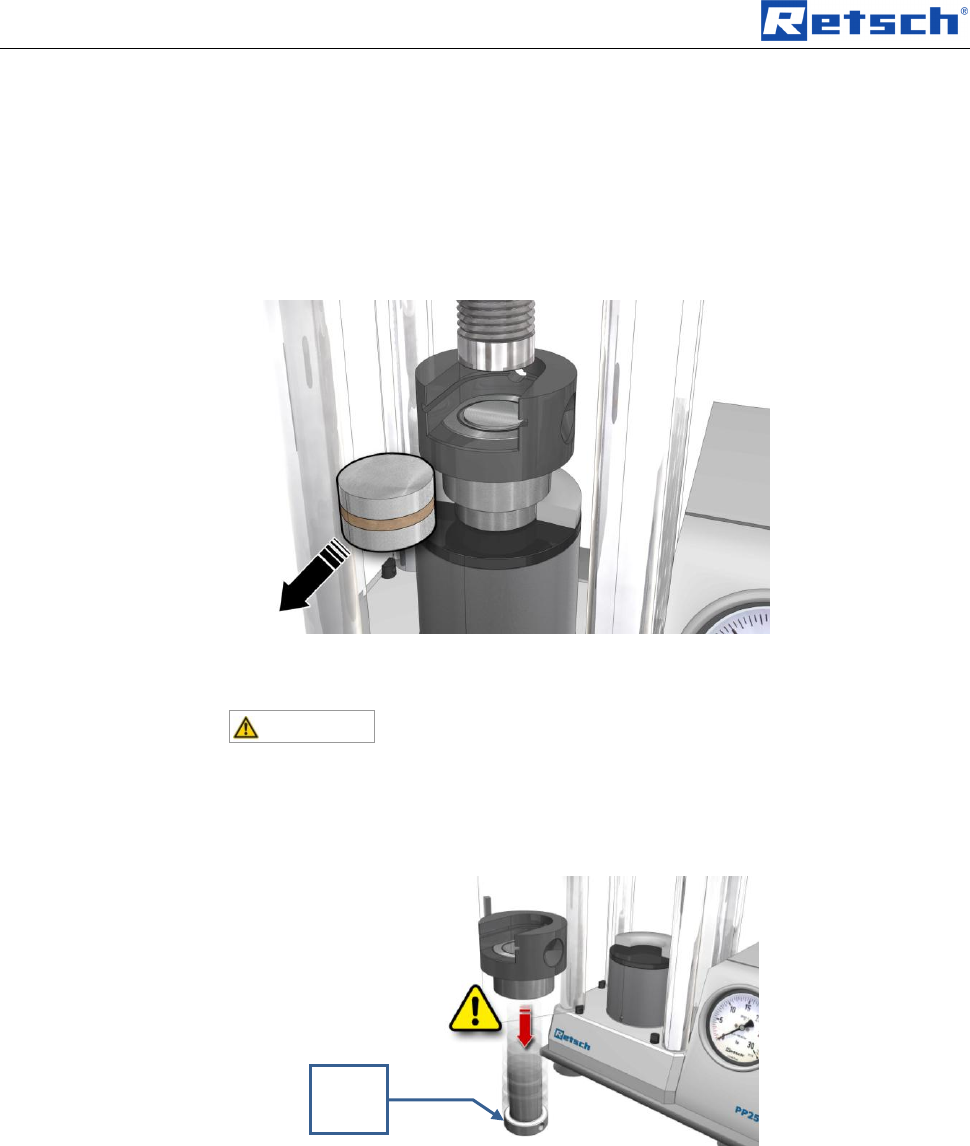

Fig. 14: Removing the pellet
• Remove the pellet.
CAUTION
Risk of fingers being pinched
The plunger is loose! This means that there is a risk of the plunger (M) dropping
downwards when you take the die tool out.
• Hold the plunger (M) securely when removing the die tool!
Fig. 15: The plunger falls down
Pos: 8.16 /00005 Ü berschriften/ 1.1 Überschrifte n/1.1 Überschrift en BDA/11 Entl üften @ 4\ mod_132256108 6032_9.doc @ 25 817 @ @ 1
5.7 Ventilation
Pos: 8.17 /00010 Bedienungsa nleitungen Kapitels ammlungen/PP 25/0015 Be dienung/15xx PP 25 Modul Entl üften @ 4\mo d_13225627382 18_9.doc @ 25 916 @ @ 1
• Remove the die tool.
• Close the side shut-off valve (H) by turning in a clockwise direction.
• Move the pump lever (B) very slowly several times forwards and backwards
until the pressure cylinder (J) moves approximately 1-2 mm upwards.
• Now open the shut-off valve in an anti-clockwise direction. This moves the
pressure cylinder downwards again.
M
