Owner's manual

Operating the machine

Avoid, extending the cylinder to its maximum height while the pressure is

building up.

• Turn the threaded spindle (D) upwards.

• Put the die tool (PW) on the pressure cylinder (J).

• Turn the threaded spindle downwards until it rests on the die tool.

• Close the valve (H) by turning in a clockwise direction.

• Build up the required pressure force (t) by moving the hand lever (B)

forwards and backwards.

5.5.4 Removing the Die Tool and Tablet (1)

NOTE

A quick drop in pressure can cause the pellets to break.

• Open the shut-off valve (H) very slowly by turning in an anti-clockwise

direction.

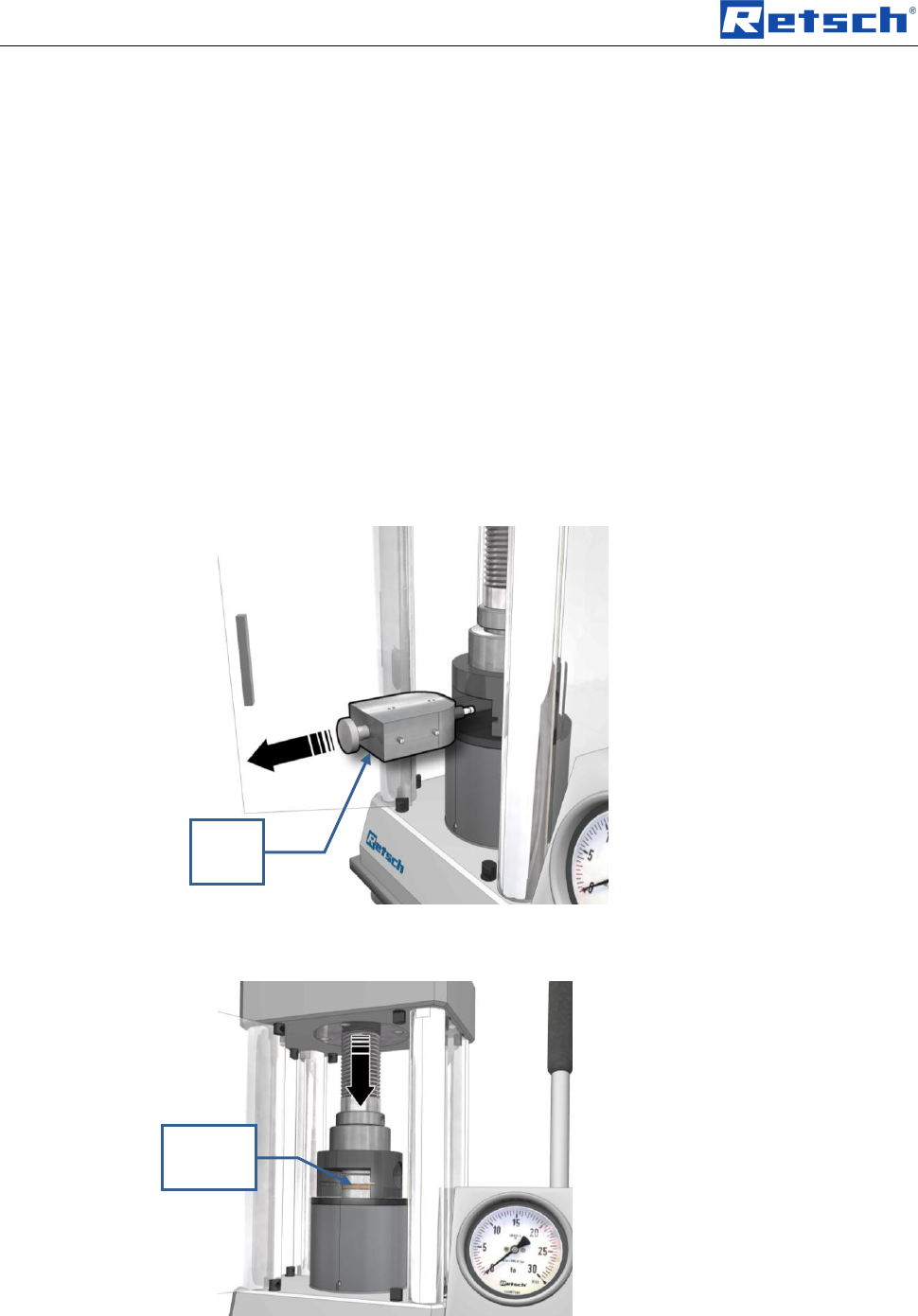

Fig. 5: After the Pressing Procedure

• Pull the slide (S) out of the die tool.

Fig. 6: Ejecting the pellet

• Close the valve (H) by turning in a clockwise direction.
