ML Switch User Guide
Warning
Please Note
The specifications of the product detailed on this
Set-Up Guide may change without notice. RDM
Ltd. shall not be liable for errors or for incidental
or consequential damages, directly and indirectly,
in connection with the furnishing, performance or
misuse of this product or document.
Ensure that all power is
switched off before
installing or maintaining
this product

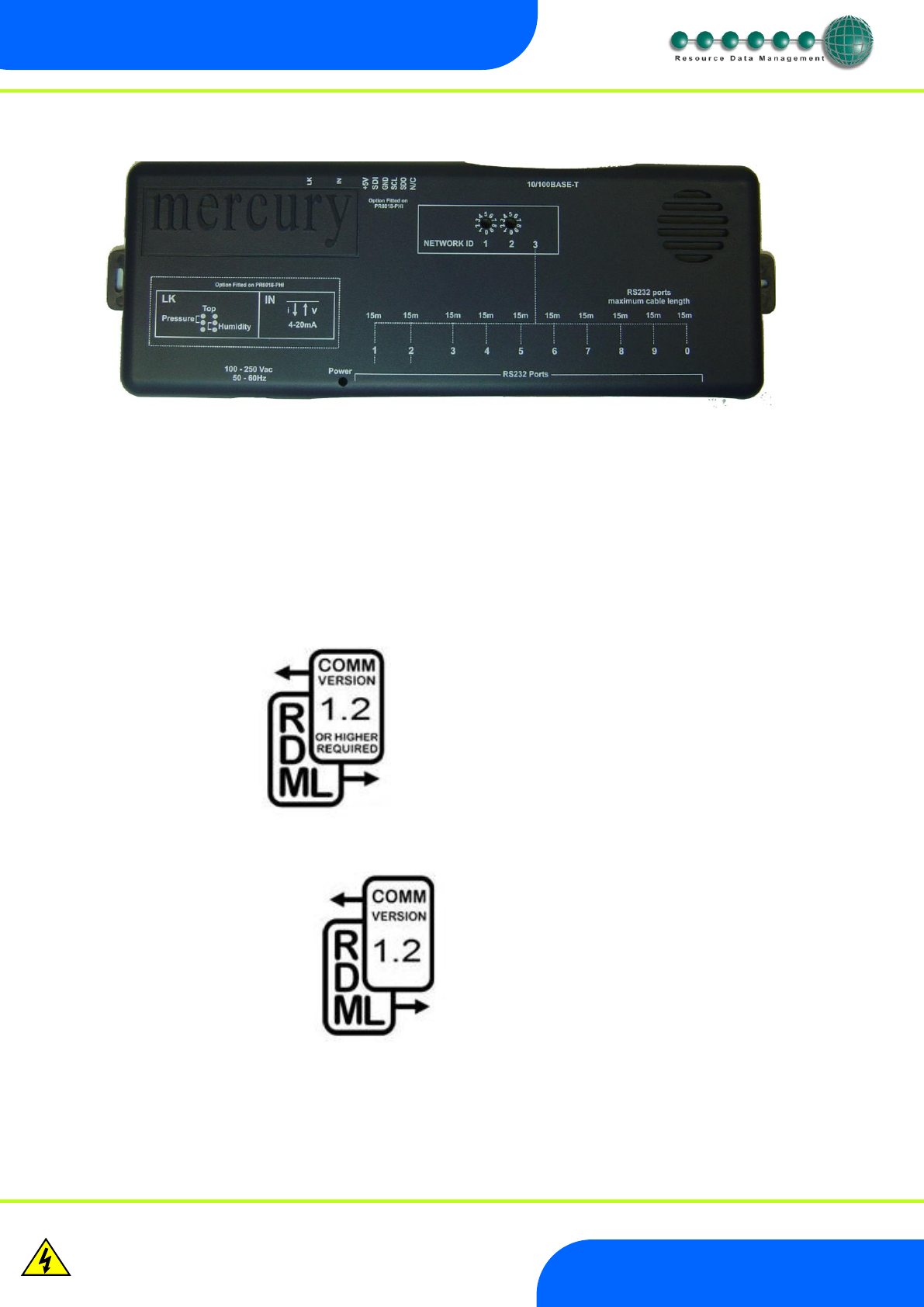

Top View
Connection to ML Controllers:
Network Configuration
Network Compatibility
New ML Switch and IP Modules will be labeled identifying software version.
New ML Controllers will not log on to network using pre 1.2 versions of ML Switch and IP Modules.
Controllers with the following label will only log on to network using ML Switch or ML IP Module with software version 1.2 or higher.
ML Switch or ML IP Module with software version 1.2 will have the following label.
All versions of ML controllers will log on with ML Switch and IP Module with software version 1.2 or higher.
Using a standard CAT5 patch lead, connect the serial output of the RDM Controller to one of the RS232 ports of the ML Switch.
