PCA4738xx-xxA User's Manual 2．Usage (How to Write the Program)
2.5 Mounting an MCU
As shown in Figures 2.5 and 2.6, insert the No. 1 pin of an MCU into the No. 1 pin of the IC socket.

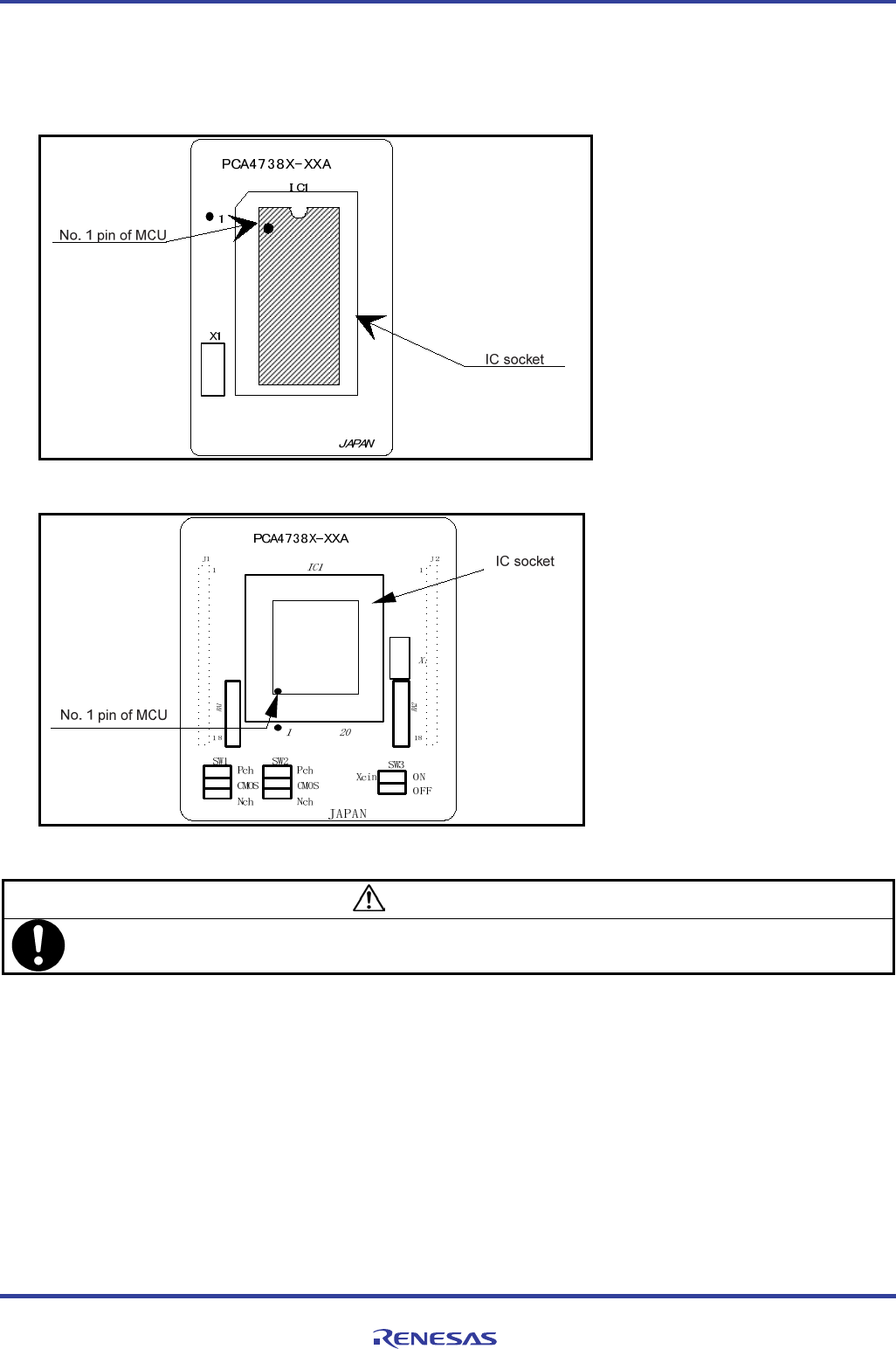

Figure 2.5 Mounting an MCU (adapters with DIP type IC socket)
Figure 2.6 Mounting an MCU (adapters with QFP, SOP, LCC type IC socket)
CAUTION
Be careful when inserting the MCU because an incorrect insertion can cause fatal damage to the MCU.
