PCA4738xx-xxA User's Manual 2．Usage (How to Write the Program)
2.2 Selecting a Connector
Select the connector depending on the type of the MCU as described in Table 2.1 and Figure 2.1 below.
Table 2.1 Selecting connector
Conditions MCU Applicable connector
M5M27C256A
mode
PCA4738D or
PCA7402D
32 KB
or less
M375XXE1/E2/E3/E4
M375XXE5/E6/E7/E8
M38XXXE1/E2/E3/E4
M38XXXE5/E6/E7/E8
MCU's
programming
mode
M5M27C101
mode
Over
32 KB
M375XXE9/EA/EB/EC
M375XXED/EE/EF
M38XXXE9/EA/EB/EC
M38XXXED/EE/EF
PCA4738E or
PCA7402E

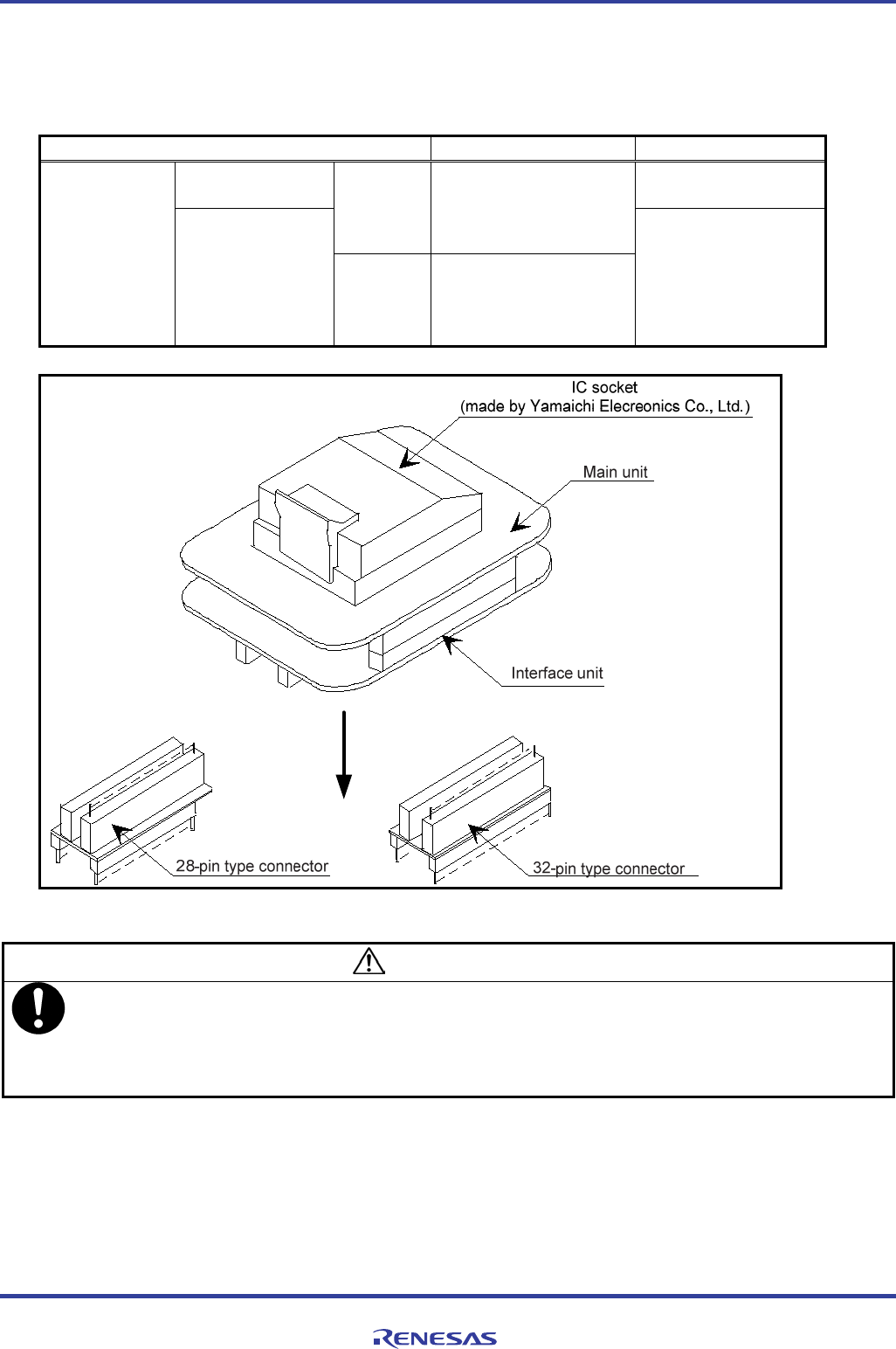

Figure 2.1 Selecting a connector
CAUTION
• No selection is required for the PCA4738S-42A and PCA4738F-42A. (The PCA7402E connector is already
attached.)
• For the MCU whose internal ROM is 32 KB or less, the applicable adapter (PCA4738D/PCA7402D or
PCA4738E/PCA7402E) depends on its device (M5M27C256A mode or M5M27C101 mode). For each
matching device of the MCU, refer to Tables 2.6 to 2.9 on pages 21 to 22.
