5.4 Dimensions for EV-Chip Board and User System Interface Board
The dimensions for the EV-chip board and the user system interface board are shown in figure 11.
140.0
116.0
Unit: mm
Tolerance: ±0.5 mm
EV-chip board
User system interface board
19.5 31.0 33.5 16.0
100.0
92.0
69.0
29.5
5.0
34.5
Spacer

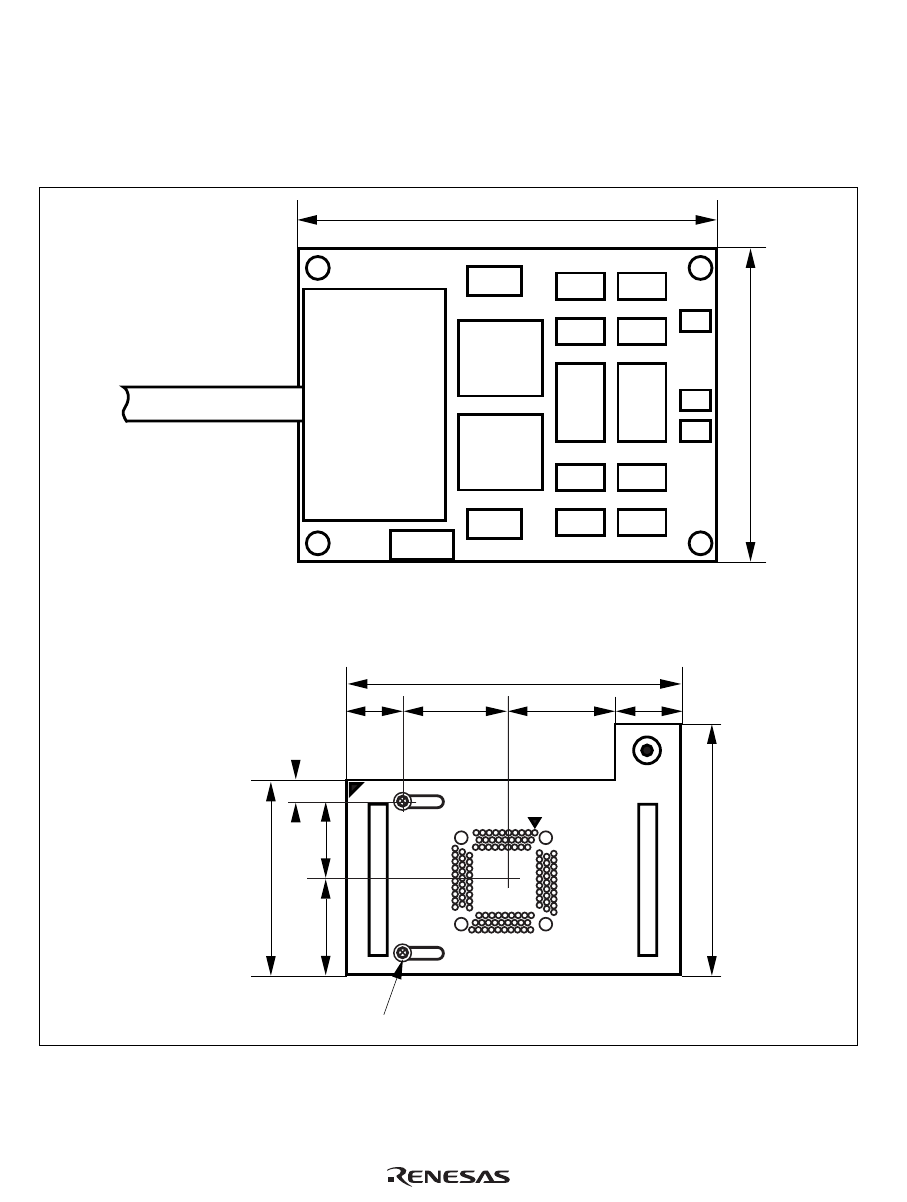

Figure 11 Dimensions for EV-Chip Board and User System Interface Board
