1
Section 1 Configuration
CAUTION
Use an IC149-100-054-B51 socket (manufactured by
YAMAICHI ELECTRONICS Co., Ltd.) for the FP-100M package
IC socket on the user system.

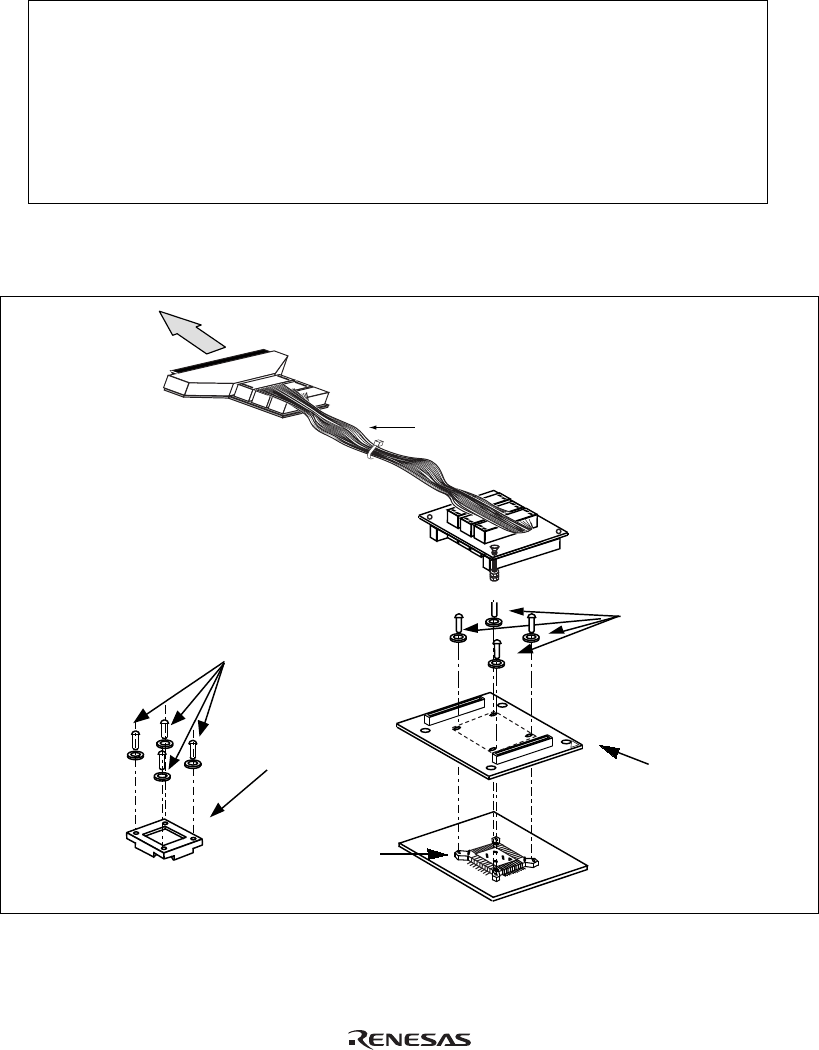

Figure 1 shows the configuration of the HS1527ECH61H user system interface cable for the
FP-100M package.
To emulator station
Cable body
User system
IC socket
Cable head
Screws (M2.6 x 12 mm)
with flat washers
(for fastening cable head)
Screws (M2.6 x 6 mm)
with flat washers
Socket cover
Figure 1 HS1527ECH61H User System Interface Cable
