Section 5 Notice
1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable
head before inserting the cable head into the user system IC socket.
2. The dimensions of the recommended mount pad for the user system IC socket are different from
those of the MCU.
3. This user system interface cable is specifically designed for the HS2633REPI61H or
HS2633EPI61H emulator. Do not use this cable with any other emulator station.
4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on the
user system interface cable.
5. While the emulator station is connected to the user system with the user system interface cable,
force must not be applied to the cable head. Place the emulator station, user system interface
cable, and user system as shown in the example in figure 11.
User system
Cable
Emulator station
Place components so that the cable body and cable head are
parallel to the user system.
Cable head is parallel
to emulator station
Cable head is parallel
to user system

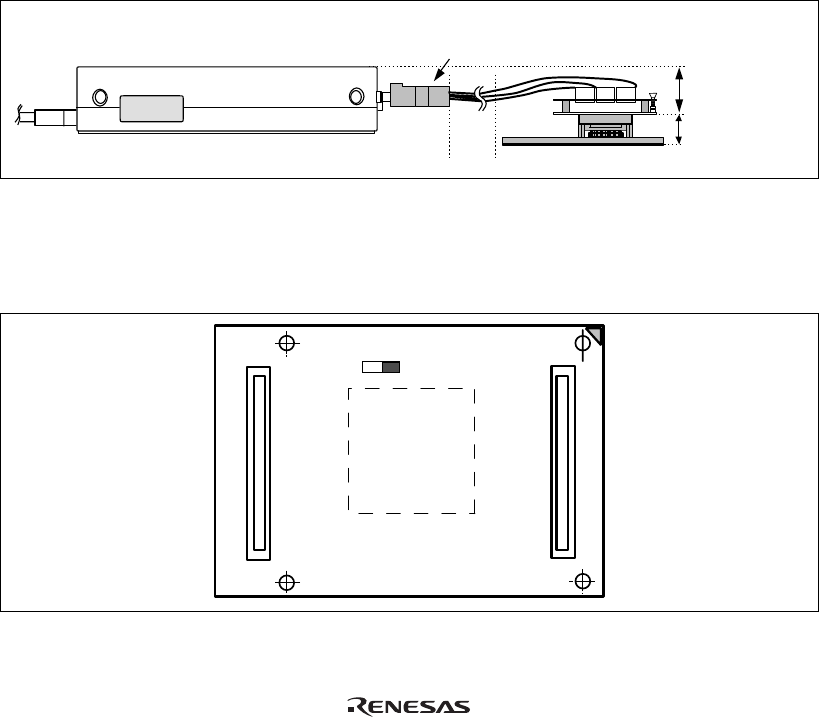

Figure 11 User System Interface Cable Location Example
6. The P1 short connector is used for testing. Do not remove the short pins that are inserted in the
sides of pin 1 and pin 2.
P1
13
Figure 12 P1 Short Connector
