2.3 Recommended Dimensions for User System Mount Pad
Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an TFP-100G package (NQPACK100SE: manufactured by Tokyo Eletech
Corporation). Note that the dimensions in figure 6 are somewhat different from those of the actual
chip's mount pad.
Unit: mm
0.40 ± 0.05 0.20 ± 0.05
0.40 × 24 = 9.60 ± 0.05
0.40 × 24 = 9.60 ± 0.05
11.10 (max.)
15.10 (min.)
0.40 ± 0.05

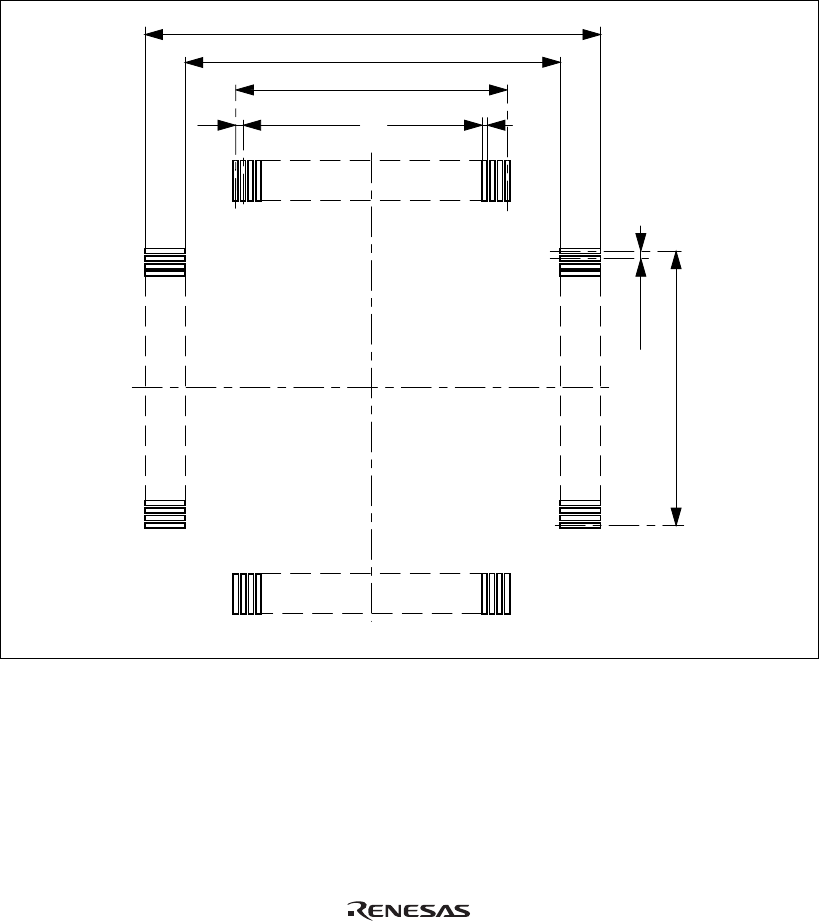

Figure 6 Recommended Dimensions for Mount Pad
