64
5.7.7 Setting Event Points
On the [Event] sheet, the settings for event points are displayed, modified, and added.

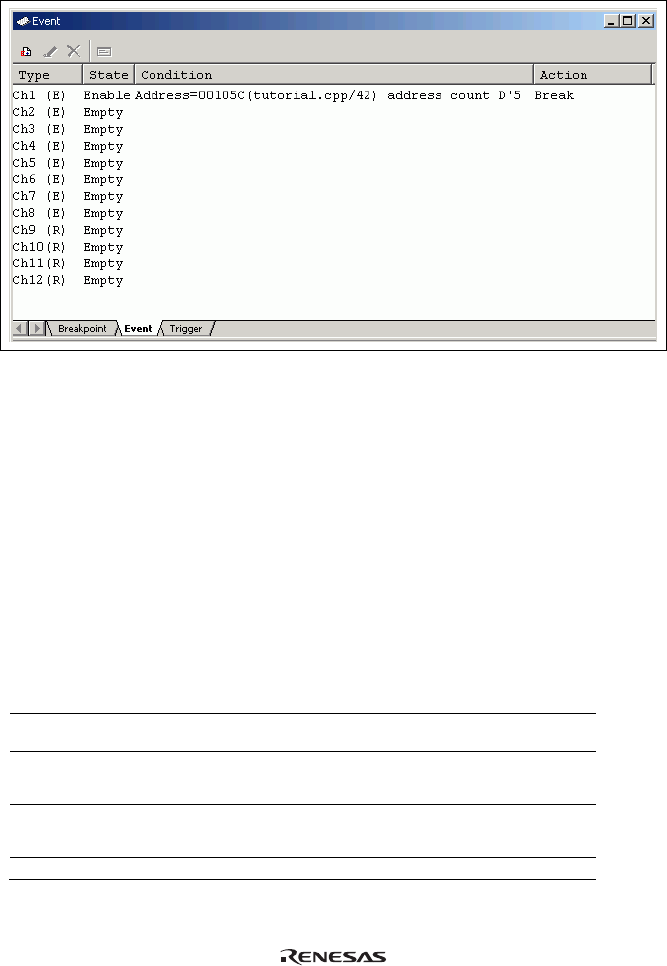

Figure 5.21 [Event] Window ([Event] Sheet)
Select [Add...] or the event point displayed in this window and then select [Edit...] from the popup menu to
display the [Breakpoint/Event Properties] dialog box.
The conditions for the event point are set on the [General], [Bus/Area], [Signals], and [Action] pages. The search
condition for the event point is set by multiple conditions set on these pages.
Notes: 1. Channel 8 has the trigger output function. When the condition on channel 8 is satisfied, the low-level
signal will be output from the external probe 1 (EXT1) for a bus cycle.
2. When the event point is used as the condition for acquiring the trace information, select [Trace
Acquisition…] from the popup menu. For the trace function, refer to section 5.8, Viewing Trace
Information.
3. If a condition that is unavailable for a range channel is set in editing of the range channels (Ch9 to
Ch12), the selected channel is automatically replaced by an unused event channel (Ch1 to Ch8).
Table 5.3 Conditions Unavailable for a Range Channel
Condition Related Options
Selecting outside the
specified address range
[Outside Range] on the [General] page
Selecting the start or
end of the execution
time measurement
[Start Timer] and [Stop Timer] on the [Action] page
Specifying the count
when an event occurs
(twice or more)
[Required number of event occurrences] on the [Action] page
Specifying sequencing [Enable Sequencing] on the [Action] page
