4.2 Connecting the Emulator
Select either of the following two ways to connect the emulator:
(a) Connecting the emulator after the setting at emulator activation
Select [Debug -> Debug Settings…] to open the [Debug Settings] dialog box. It is possible to register the
download module or the command chain that is automatically executed at activation.
When the dialog box is closed after setting the [Debug Settings] dialog box, the emulator will automatically
be connected.
(b) Connecting the emulator without the setting at emulator activation
Connect the emulator by simply switching the session file to one in which the setting for the emulator use has
been registered.

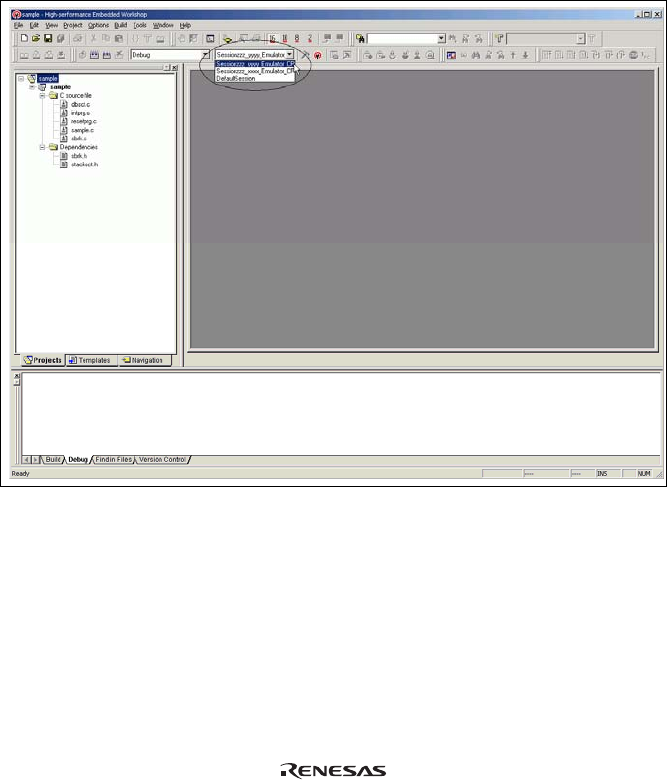

Figure 4.12 Selecting the Session File
In the list box that is circled in figure 4.12, select the session name including the character string that has been
set in the [Target name] text box in figure 4.9, [New Project – Step 8] dialog box. The setting for using the
emulator has been registered in this session file.
After the session name is selected, the emulator will automatically be connected. For details on the session file,
refer to the High-performance Embedded Workshop user’s manual.
