17
2.7 Communication Problems
The following message box will be displayed when the emulator power is turned off or the PC interface cable is
not correctly connected.

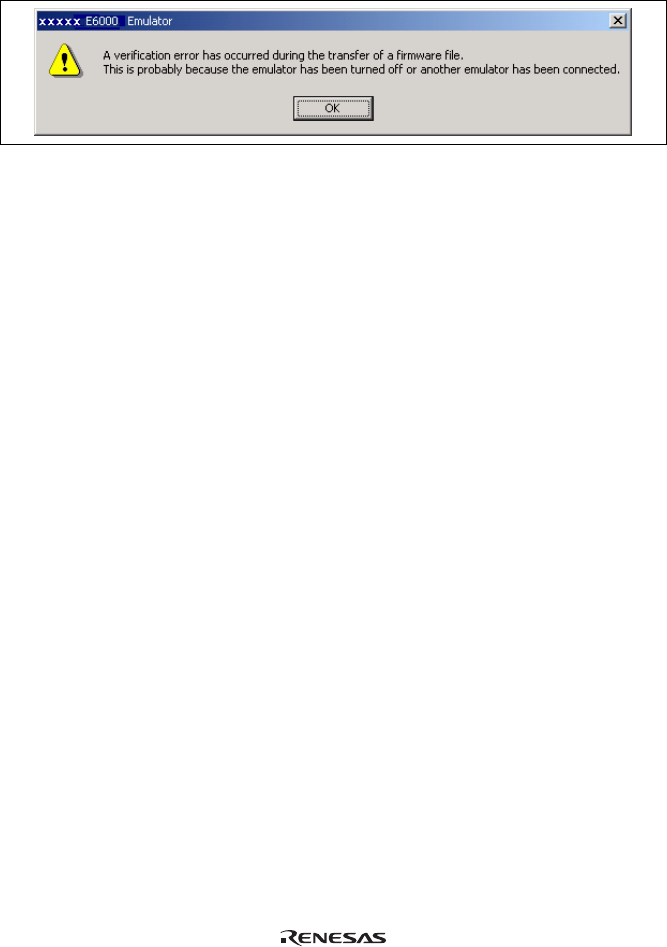

Figure 2.19 Error Message
Note: No USB adapter (such as HS6000EIU02H) can be used with HS38000EPI61H. This error message
appears if a USB adapter is connected to HS38000EPI61H. In such cases, disconnect the USB adapter.
To use the USB interface with HS38000EPI61H, directly connect the USB cable to HS38000EPI61H.
For information on other errors, refer to the Setup Guide for the E6000 Emulator.
2.8 Other Methods for Activating the Emulator
Refer to section 4, Preparation before Use.
2.9 Uninstalling the Emulator’s Software
For details on uninstallation, refer to the Setup Guide for the E6000 Emulator.
