2.3 Connecting to the User System
To connect the emulator to a user system, proceed as follows:
• Connect the user system interface cable head to the user system.
• Plug the cable body into the emulator.
• Plug the cable body into the cable head.
For details of these steps, refer to the User System Interface Cable User’s Manual.

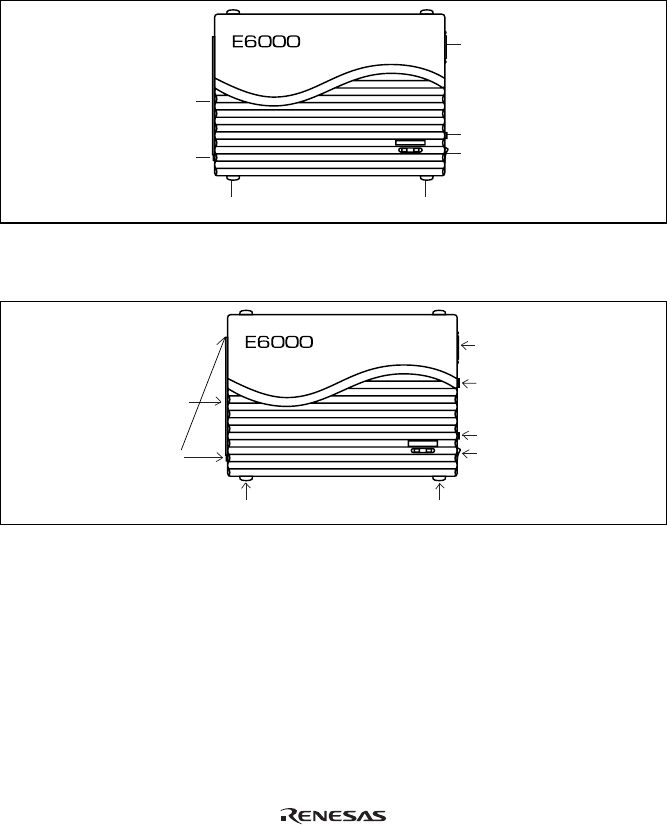

Figures 2.2 and 2.3 give details of the connectors provided on the emulator.
POWER RUN
PC interface
cable connector
Case screw Case screw
On/off switch
Power connector
User system
interface cable
connector
EXT probe
connector
Figure 2.2 E6000 Emulator Connectors (HS3800EPI60H, HS3880EPI60H and HS388REPI60H)
POWER RUN
External probe
connector
Screw
PC interface cable
connector
Power connector
Power switch
Screw
User system
interface connector
USB interface cable
connector
Figure 2.3 E6000 Emulator Connectors (HS38000EPI61H)
