8.5 Performance Analysis Function
The performance analysis function of HS3800EPI60H, HS3880EPI60H, and HS388REPI60H allows the amount
of time spent in user-selected areas of memory during the last program run to be shown as percentages and as a
histogram.
HS3800EPI60H, HS3880EPI60H, and HS388REPI60H do not count every access to the specified performance
analysis range. They analyze samples at a rate dependent on the operating speed of the host computer.
8.5.1 Opening the [Performance Analysis] Window
Choose [View -> Performance -> Performance Analysis] or click the [PA] toolbar button (
) to open the
[Select Performance Analysis Type] dialog box.

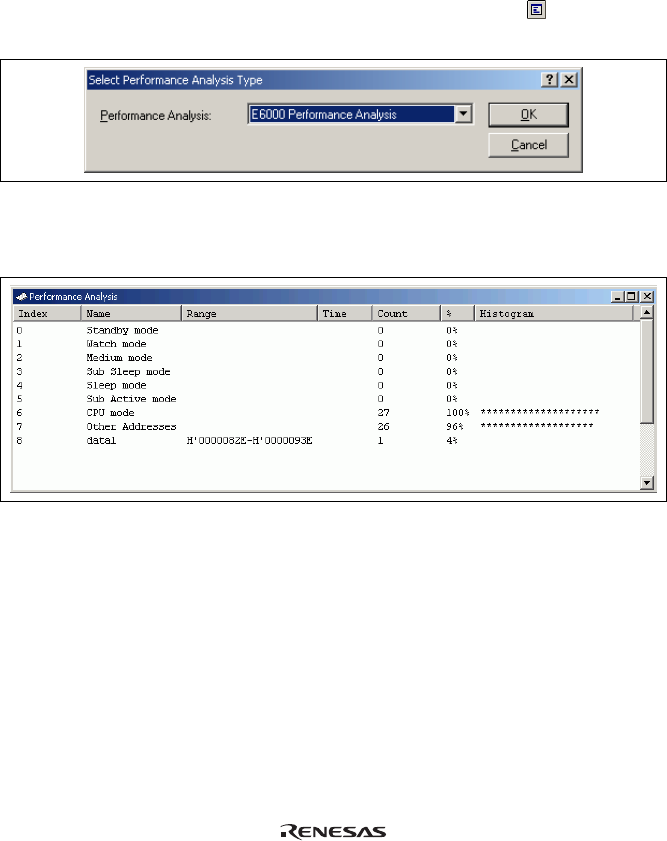

Figure 8.3 [Select Performance Analysis Type] Window
Select [E6000 Performance Analysis] and then click the [OK] button to open the [Performance Analysis]
window.
Figure 8.4 [Performance Analysis] Window
This window displays the rate of execution time in the area selected by the user during the last program run in
percentages, histogram, or numerical values.
Note: For HS3800EPI60H, HS3880EPI60H, and HS388REPI60H, there are the performance analysis ranges
for the following states which cannot be deleted:
Standby, Watch, Medium, Sub Sleep, Sleep, Sub Active, CPU, Other Addresses
It is possible to hide any column not necessary in the [Performance Analysis] window. Selecting a column you
want to hide from the popup menu displayed by clicking the right-hand mouse button on the header column
hides that column. To display the hidden column, select the column from the said popup menu again.
