Section 8 Software Specifications Specific to This Product
This section describes the software specifications of the H8/3800 E6000 and H8/388R emulators.
8.1 Software Specifications of the H8/3800 E6000 Emulator
Information specific to the H8/3800 E6000 emulator (either HS3800EPI60H or HS38000EPI61H +
HS3800EBK61H) is given below. If a description in this section does not mention any product name
(HS3800EPI60H or HS38000EPI61H + HS3800EBK61H), it indicates that the description is common to the
both products.
8.1.1 Target Hardware
This emulator software conforms to HS3800EPI60H or HS38000EPI61H + HS3800EBK61H.
8.1.2 Selectable Platform
The following debugging platform is selectable in this emulator.
Table 8.1 Selectable Target Platform
Debugging Platform Remark
H8/3800 E6000 Emulator CPU 300L For emulation of the H8/3800, H8/3801, H8/3802, H8/38020,
H8/38021, H8/38022, H8/38023, H8/38024, H8/38003, and
H8/38004that have the H8/300L CPU as the core.
8.1.3 [Configuration Properties] Dialog Box ([General] Page)
Items that can be set in this dialog box are listed below.

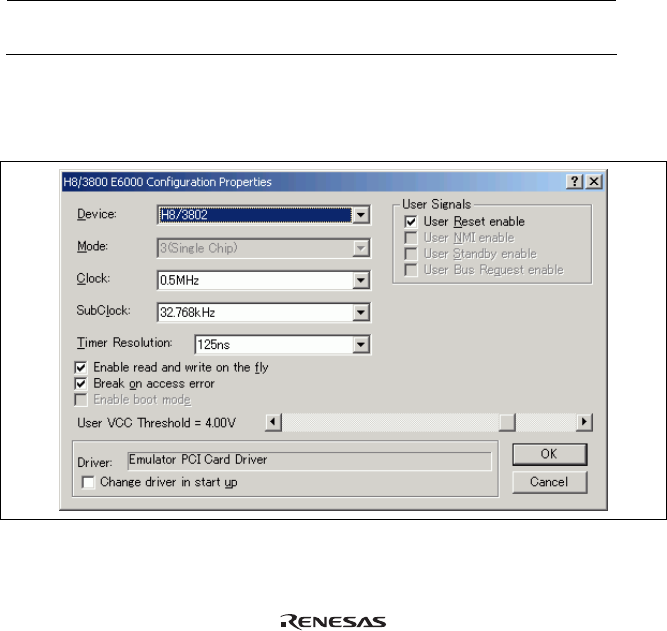

Figure 8.1 [Configuration Properties] Dialog Box ([General] Page)
