7.5 Host PC Interface (only for HS38000EPI61H + HS3800EBK61H)
The H8/3800 E6000 emulator, which has a USB interface circuit for the host PC interface, conforms to USB2.0
(high-speed/full-speed, also supporting USB1.1 full-speed) and can be connected to the host computer.
Connecting the attached USB interface cable to the USB interface connector of the emulator realizes interface
between the host computer and the emulator. Note that use of the USB adapter for E6000 (such as
HS6000EIU02H) is not supported.
To use a host PC interface (for PCI, PCMCIA, or LAN) other than USB, prepare a suitable host PC interface
board separately sold, before connecting to the emulator. Note, however, that the USB interface will not be
available if a PC interface cable is connected between the host computer and the emulator. To use the USB
interface, disconnect the PC interface cable from the emulator. The USB interface also will not be available
under the Windows
®
NT environment.

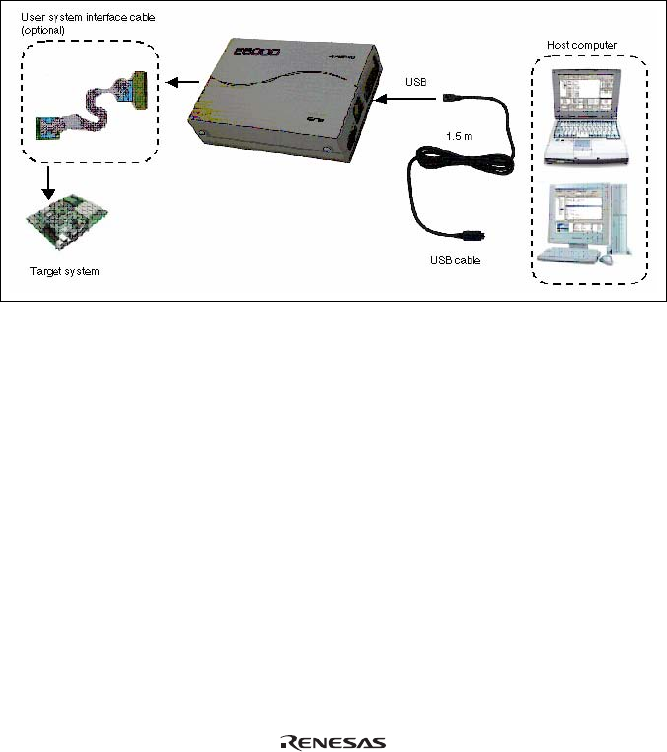

Figure 7.8 shows the system configuration that uses the USB interface.
Figure 7.8 System Configuration with USB Interface in E6000
