• Point to Point
Acquires trace information in the specified range.

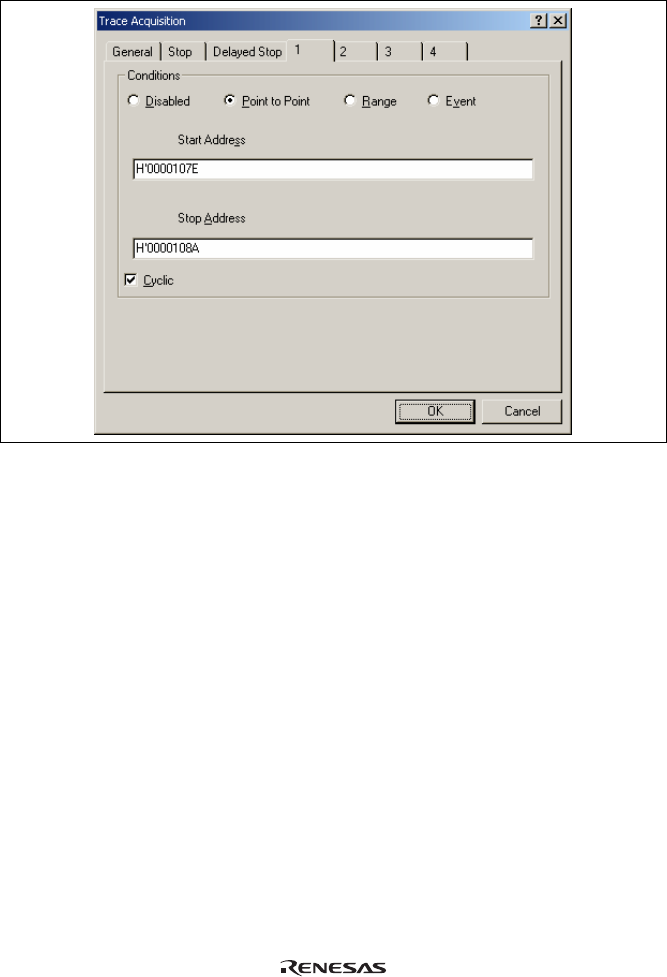

Figure 5.34 Range Trace Setting (Point to Point)
[Start Address]: Address where trace acquisition starts
[Stop Address]: Address where trace acquisition stops
[Cyclic]: When this box is checked, the event sequencing is configured so that the events reset
themselves which causes tracing to be restarted when the start event occurs after the stop event.
Sets the event points that are required to start or stop trace acquisition when the start or end address is accessed,
respectively.
Point to Point mode is an easy method to set up the event mode. The event to start or sop trace acquisition is an
access to a single address.
Select [Cyclic] to continue acquisition of the trace information only in the specified address range.
Note: This function automatically configures a sequence of event points. Note, however, that an unexpected
result may arise. In such cases, modify the setting of the sequence in the [Event Sequencing] dialog box.
