2.3 Recommended Dimensions for User System Mount Pad
Figure 5 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an FP-100B/TFP-100B package (IC149-100-054-B51: manufactured by
YAMAICHI ELECTRONICS Co., Ltd.). Note that the dimensions in figure 5 are somewhat
different from those of the actual chip's mount pad.

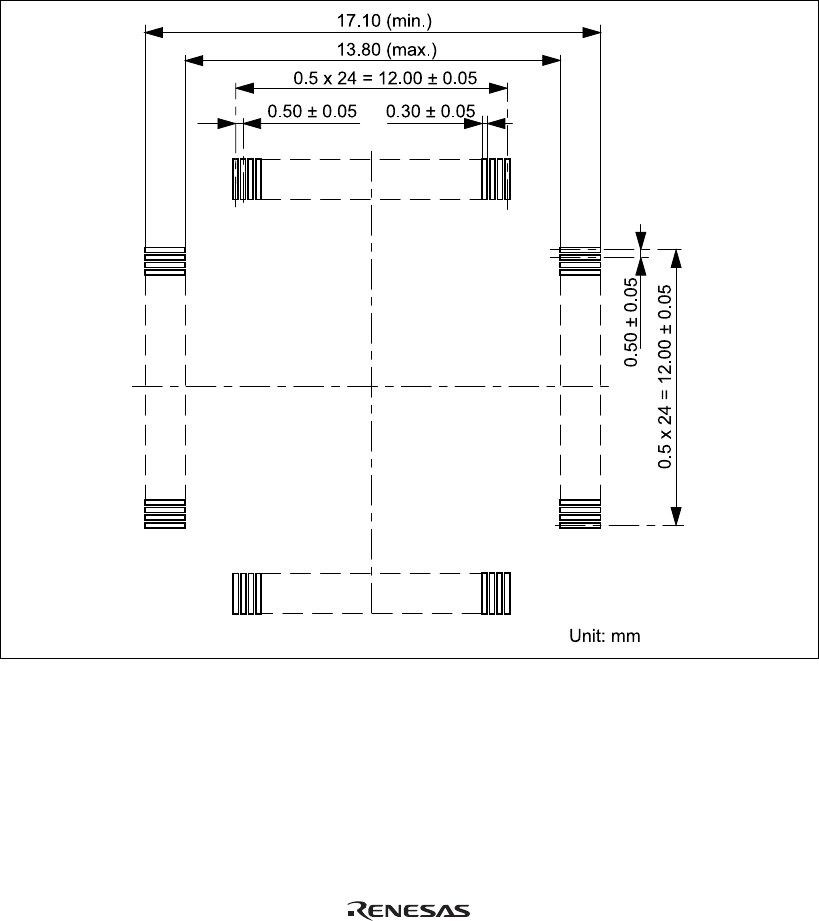

Figure 5 Recommended Dimensions for Mount Pad
