( 28 / 78 )
It is not possible to control the pullup by the pullup control resistor of ports P00 to P57 (possible to
read and write by the pullup control resistor).
However, as this product has a socket for installing the pullup resistor, it is possible to pull up by
mounting the resistor array included with this product. Figure 3.3 shows the positions for installing
the pullup resistor.

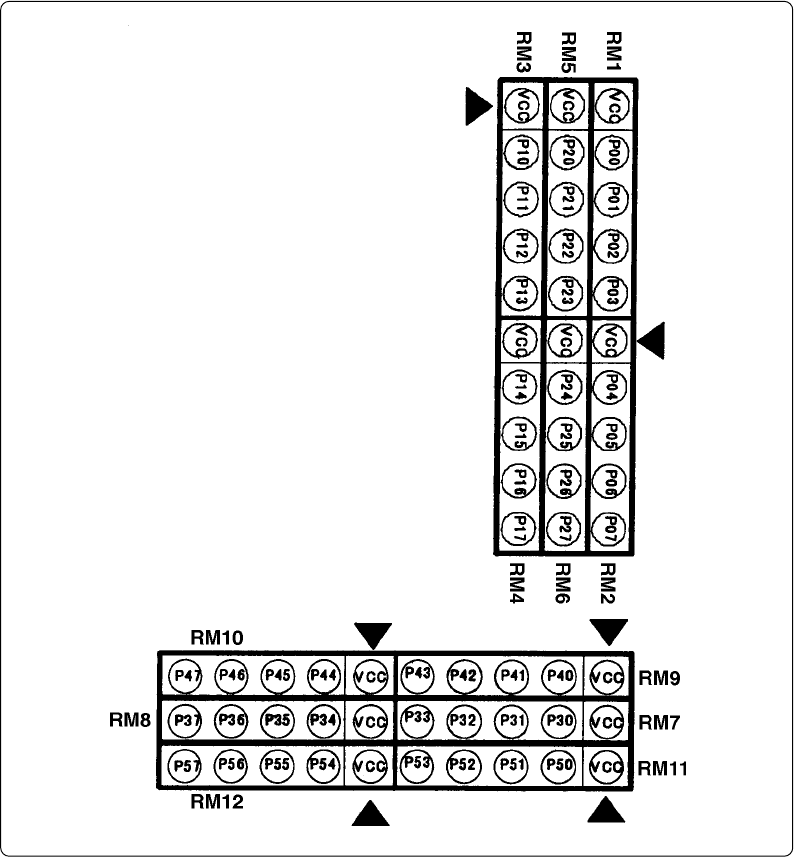

Figure 3.3 Positions for installing the pullup resistor
