( 27 / 78 )

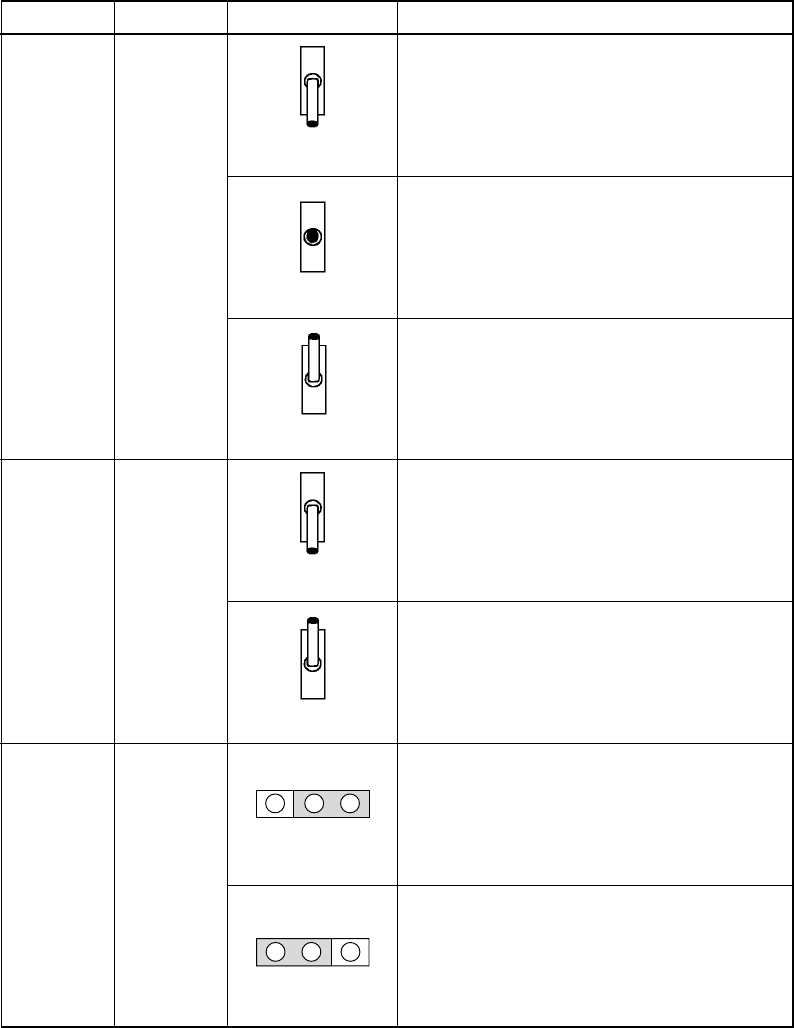

Table 3.2 Switch settings of M30620T2-RPD-E (part 2)
Set when using at the range of the target voltage
within +3.6 to +5.5 V or not connecting the target
system.
Set when using at the range of the target voltage
within +2.7 to +3.6 V.
Signal Switch Setting Description
P8
6/XCOUT SW4
SW5P87/XCIN
JP2
Connects the P86/XCOUT pin of MCU to the target
system. (Uses P86/XCOUT pin as port P86)
Uses P87/XCIN pin as XCIN.
Connects the P87/XCIN pin of MCU to the target
system. (Uses P87/XCIN pin as port P87)
Does not connect the P8
6/XCOUT pin of MCU. (Uses
P86/XCOUT pin as XCOUT and opens XCOUT.)
Connects the P86/XCOUT pin of MCU to the target
system. (Uses P86/XCOUT pin as XCOUT and connect
XCOUT to the target system.)
L
H
JP2
(Factory-setting)
L
H
JP2
P86
OPEN
XCOUT
SW4
P86/XCOUT
(Factory-setting)
P86
OPEN
XCOUT
SW4
P86/XCOUT
P86
OPEN
XCOUT
SW4
P86/XCOUT
P87
XCIN
SW5
P87/XCIN
(Factory-setting)
P87
XCIN
SW5
P87/XCIN
