6.2.3 Error Messages During M3S-KD32R Startup
If M3S-KD32R cannot communicate normally with the target system, it appears an error
message in a pop-up box.
Causes of Errors on the SDI Interface Board Side
If the error pop-up box shown in Figure 6.11 appears when starting M3S-KD32R, check whether
power is supplied to the M3A-2195 SDI Interface Board and whether it is firmly connected to the
host PC with a cable (LPT parallel cable).

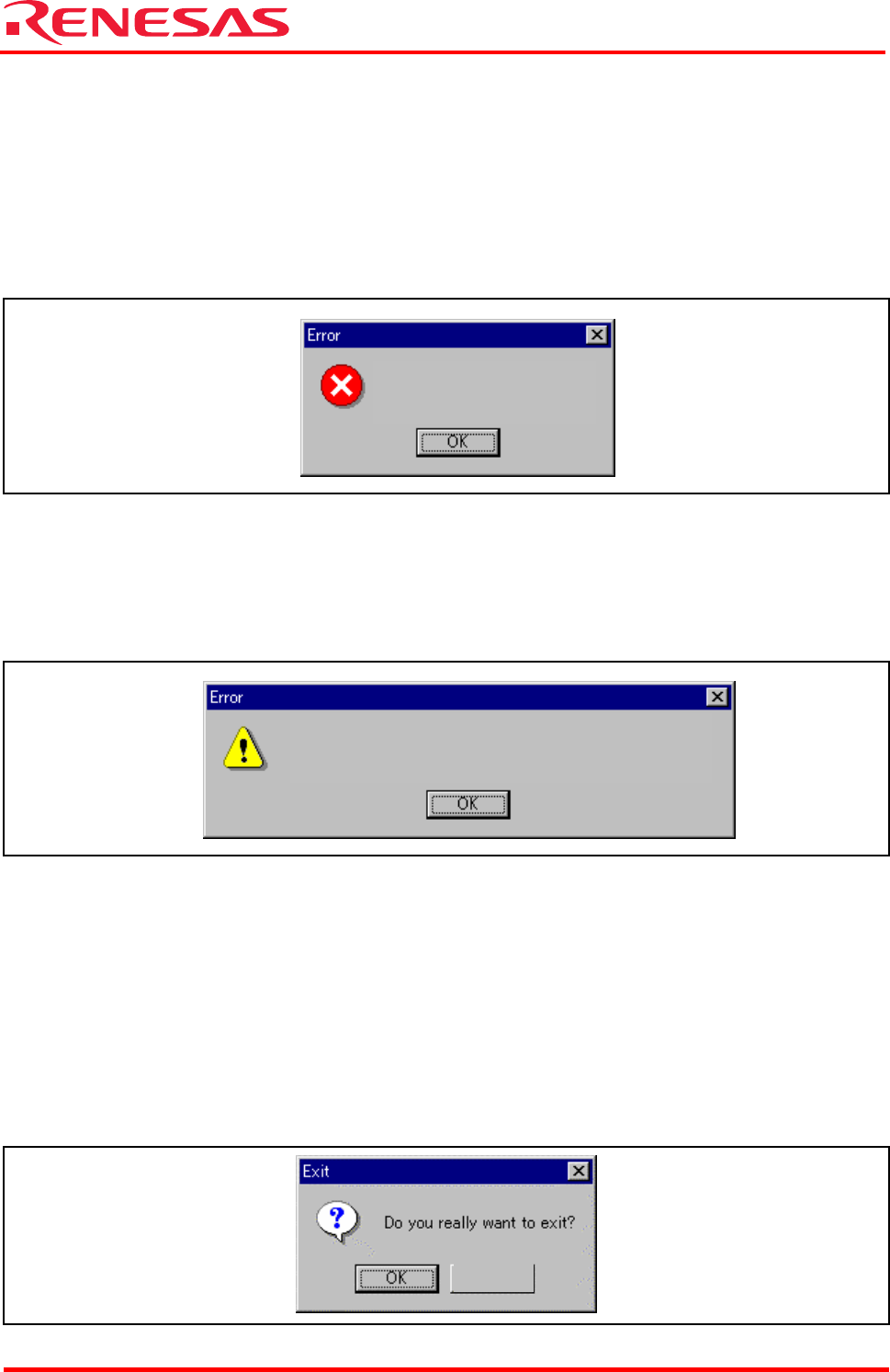

Figure 6.11 Error Message at Startup (Error on M3A-2195 Side)
Causes of Errors on the M3A-2152 Evaluation Board
If the error pop-up box shown in Figure 6.12 appears when starting M3S-KD32R, check whether
power is supplied to the M3A-2152 Evaluation Board and whether it is firmly connected to
M3A-2195 SDI Interface Board.
Figure 6.12 Error Message at Startup (Error on the M3A-2152 Evaluation Board Side)
If the error pop-up box is appeared when starting M3S-KD32R, correct the cause of error and
then click the “OK” button in that pop-up box. This brings up the initialize window, allowing you
to retry the startup. In this case, you can retry only once.
6.2.4 Terminating M3S-KD32R
To terminate M3S-KD32R, choose [File] -> [Exit] from the pulldown menu. Then, a dialog box
appears prompting you for your confirmation (see Figure 6.13). Click the “OK” button in that
dialog box to quit M3S-KD32R. Or click the “Cancel” button, in which case M3S-KD32R does not
terminate.
Figure 6.13 Dialog Box for Confirming Whether to Quit M3S-KD32R
Cancel
Can’t connect with the target
ERROR(1705)
ERROR11473: Target MCU is not under control.
Please reset target systems.
