6.1.3 Error Messages During M3T-PD32RM Startup
If M3T-PD32RM cannot communicate normally with the target system, it appears an error
message in a pop-up box.
Causes of errors on the M3A-2152 Evaluation Board
If the error pop-up box shown in Figure 6.5 appears when starting M3T-PD32RM, check whether
power is supplied to the M3A-2152 Evaluation Board and whether it is firmly connected to
M32100T-EZ-E.

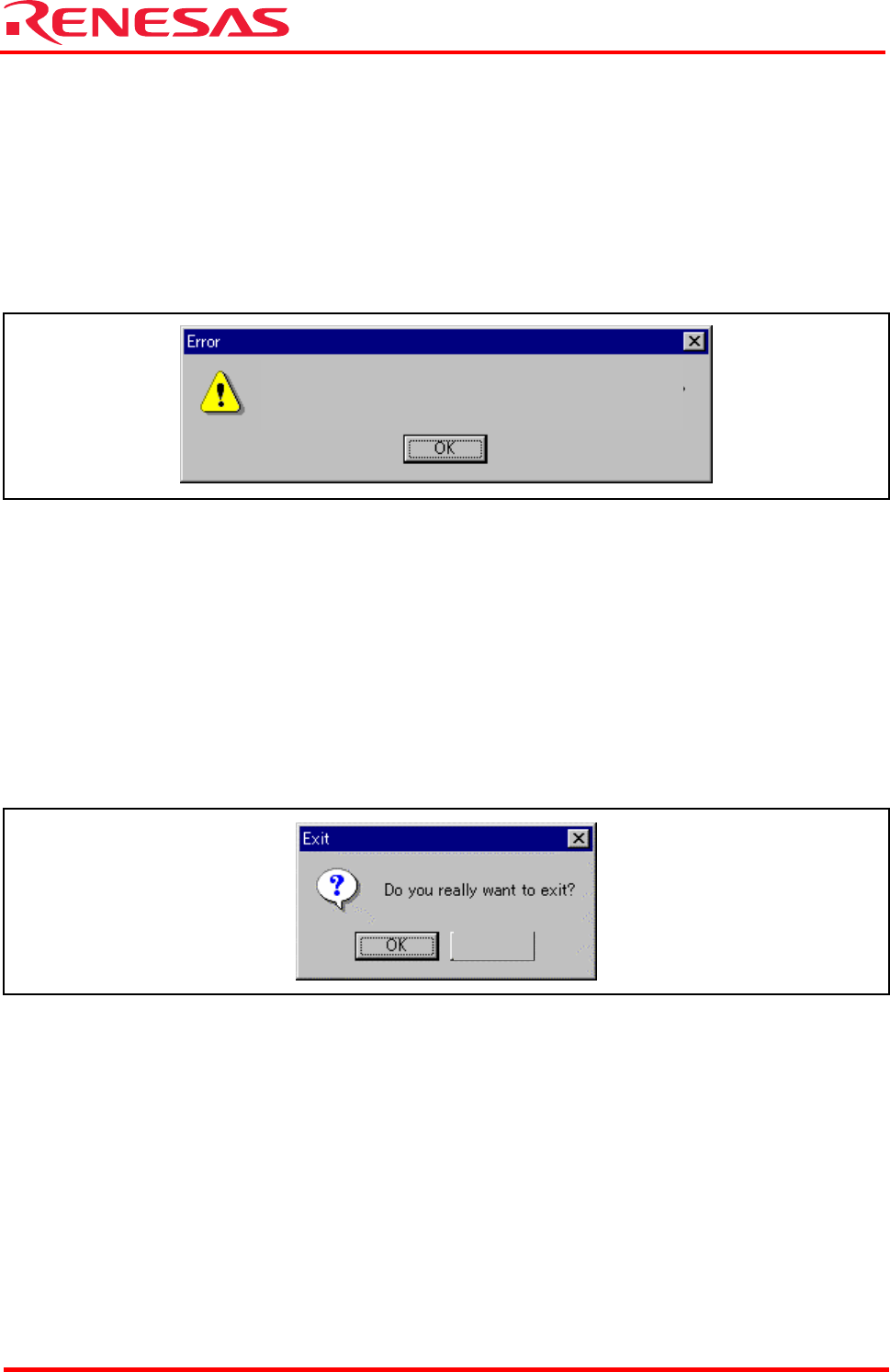

Figure 6.5 Error Message at Startup (Error on the M3A-2152 Evaluation Board Side)
If the error pop-up box is appeared when starting M3T-PD32RM, correct the cause of error and
then click the “OK” button in that pop-up box. This brings up the initialize window, allowing you
to retry the startup. In this case, you can retry only once.
6.1.4 Terminating M3T-PD32RM
To terminate M3T-PD32RM, choose [File] -> [Exit] from the pulldown menu. Then, a dialog box
appears prompting you for your confirmation (see Figure 6.6). Click the “OK” button in that
dialog box to quit M3T-PD32RM. Or click the “Cancel” button, in which case M3T-PD32RM does
not terminate.
Figure 6.6 Dialog Box for Confirming Whether to Quit M3T-PD32RM
ERROR11473: Target MCU is not under control.
Please reset target systems.
Cancel
