32176 Group
Starter Kit User’s Manual M3A-2152
REJ10B0224-0300/Rev.3.00 Jan. 2007 Page 17 of 82
6. Software Setup
6.1 M3T-PD32RM
M3T-PD32RM is the debugger software that controls M32100T-EZ-E from the host PC.
6.1.1 Installing M3T-PD32RM
[Notes]
Make sure that the installer is executed by one who is authorized as an Administrator when
Windows 2000/XP is used as an operating system of the host machine.
No one but the user who has the authority of an Administrator can install M3T-PD32RM.
(1) Run pd32rmv301r00_e.exe that is included in the Eng \ Tool \ Pd32rm directory of the CD-ROM.
(2) Proceed to install M3T-PD32RM following messages on the installation screen..
(3) When you finished installing M3T-PD32RM, the dialog box shown in Figure 6.1 appears.

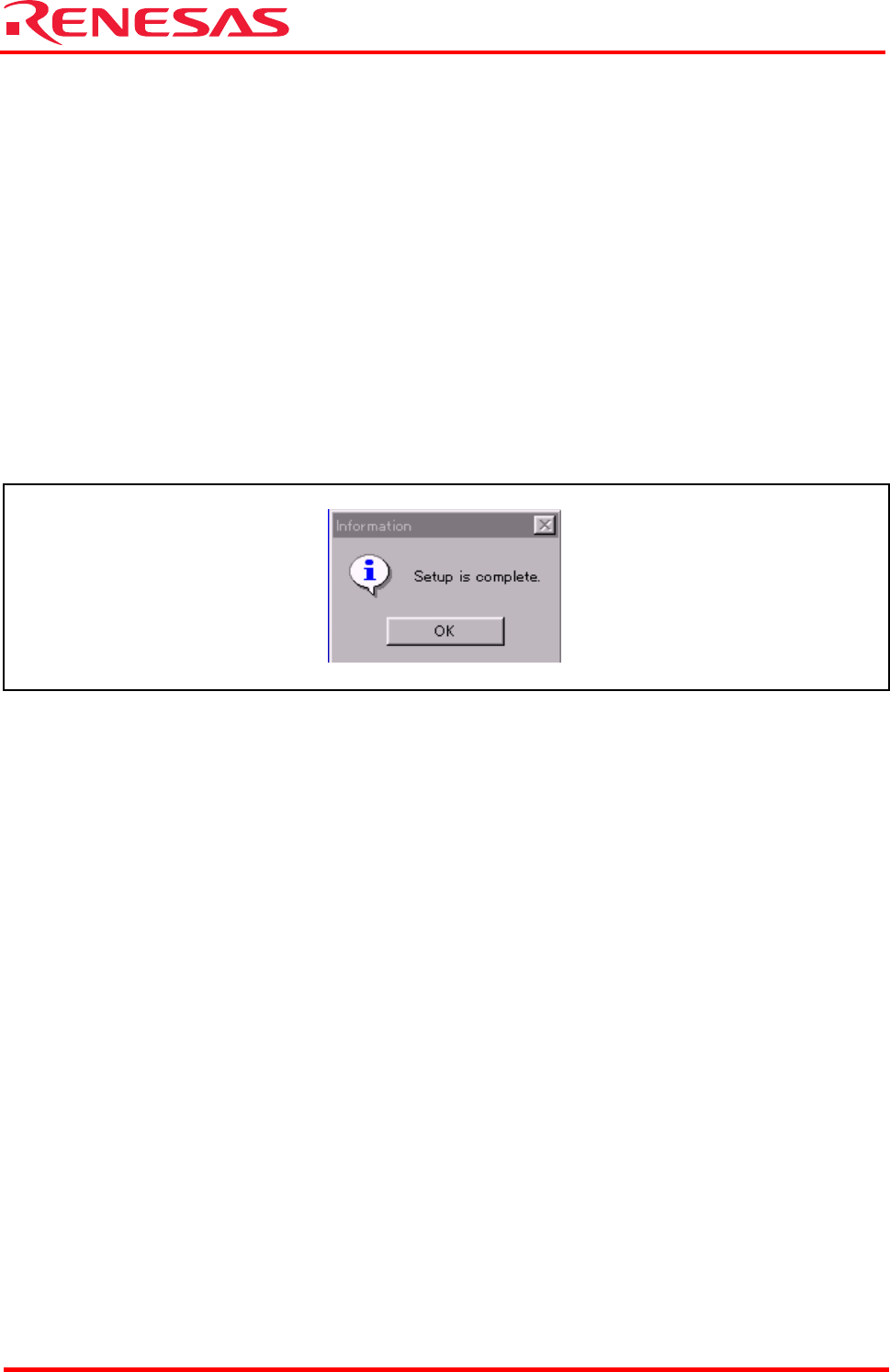

Figure 6.1 Dialog Box when Installation is Finished
