Testing IR Commands in the IR Library
Once you have located all of the Command Group codes for the appropriate
Manufacturer/Component, you will need to test the commands to see which Command Group is
associated with your specific component.
NOTE: To test commands out of the Library, the PC running Universal Dragon™ software must be
connected to the XTR39 via the USB programming port.

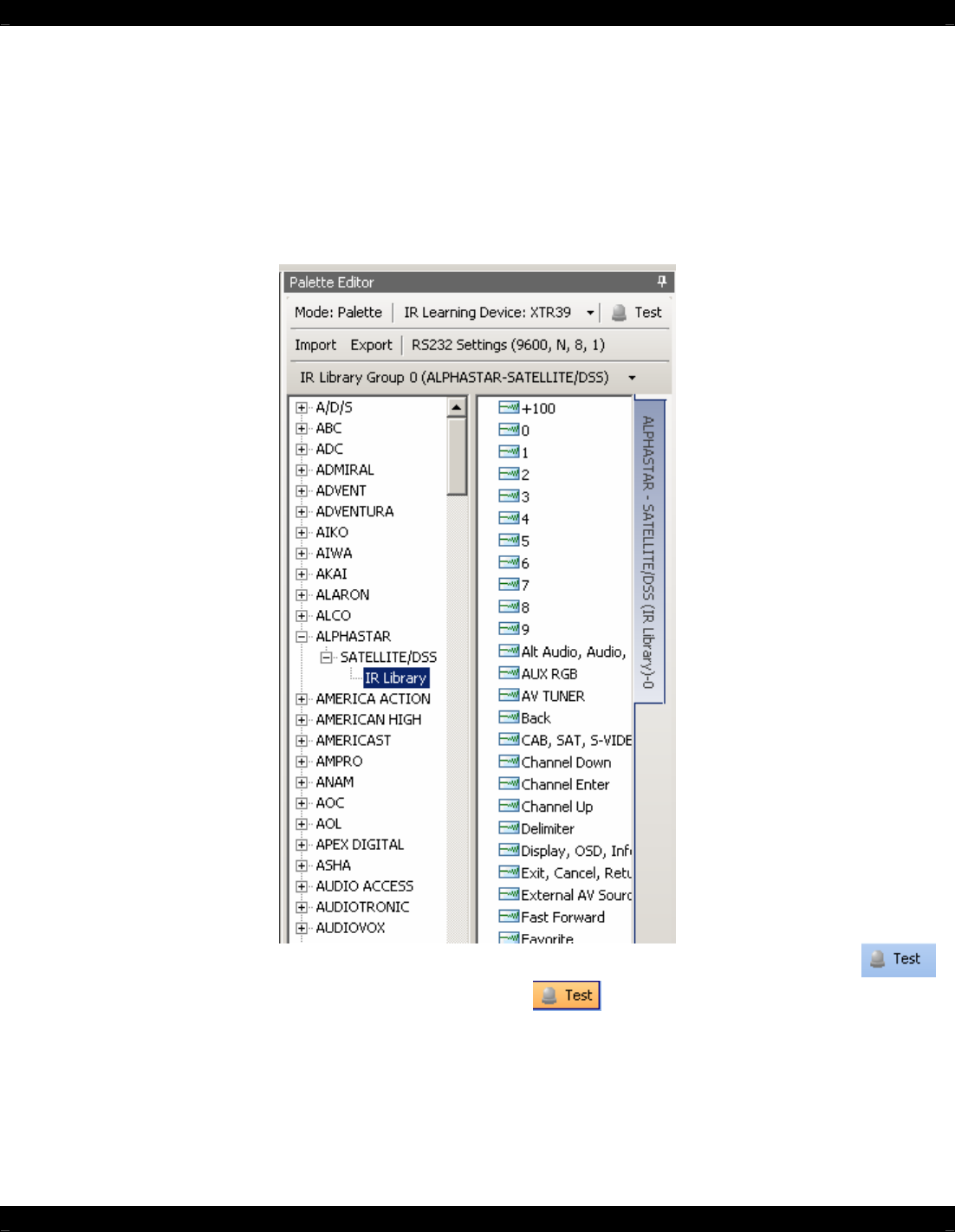

With the Manufacturer and Component expanded and the proper library selected.
1) With the PC still connected to the XTR39 programming port, select the “TEST” button .
The TEST button should now become highlighted
.
2) Click on the command listed in the IR Library. The controlled component should respond to
each command sent. (i.e. “Power” turns the source ON or OFF, “PLAY” plays the content etc.)
If a component does not respond to a command, click on another Command Group listed
under that manufacturer and retest.
3) If the codes for the specified component are present, you are now ready to start creating
Macro’s under the GTL buttons you created in the previous section. Please see the Section
