TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [e-mail]
February, 2010
PREACTION SPRINKLER
SYSTEM

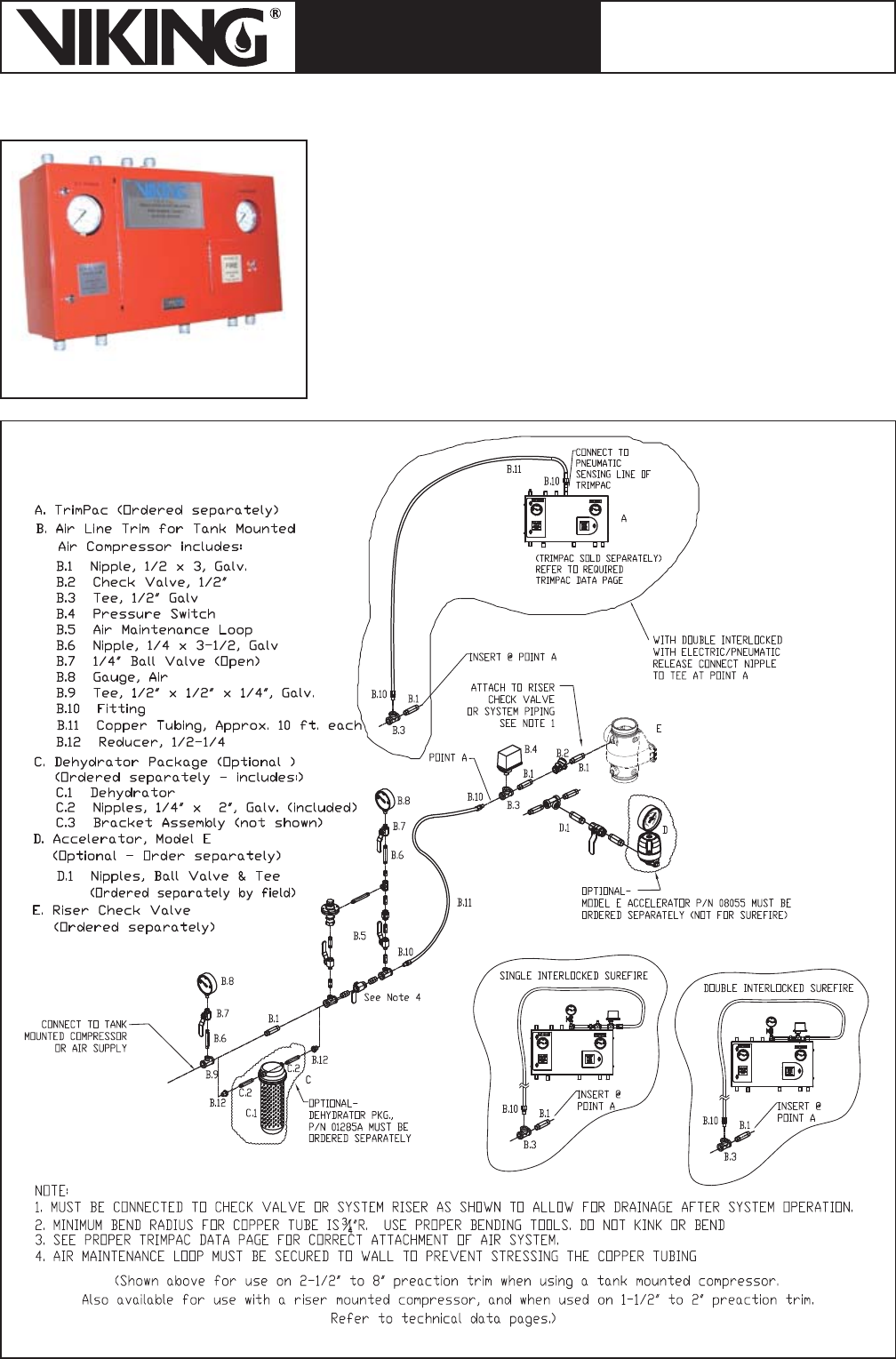

Figure 17: Trimpac
®
Air Line Trim
Figure 16: Viking Trimpac
®
D. TRIMPAC
®
Viking’s Trimpac
®
is a factory assembled trim package including a
specific release device for a single or double interlocked preaction
system, with the standard trim contained in a single cabinet (Figure
16). Trimpac
®
provides access doors for the emergency release and
alarm test valve for manual operation of these trim valves. Trimpac
®
is equipped with priming water pressure and water supply gauge
view-ports for easy monitoring of water pressures. The enclosure
protects trim valves from inadvertent operation, while stainless steel
hoses (or field provided hard piping) from the valve body to the
cabinet allows the assembly to be installed up to 5 ft away from the
deluge/flow control valve.
