4 - Operation
This tank is designed for operation in closed pressure circuits. Hot water is heated in the integrated hot-water
heat exchangers (heating coils) inside the tank from several possible heat sources like various kinds of heating
boilers, renewable energy sources (heat pumps, solar collectors).
Hot water temperature should be set to 60-65 °C. This temperature guarantees the best operation and at the
same time, it prevents formation of Legionella bacteria.
5 - Examples of Assigning Connection Points

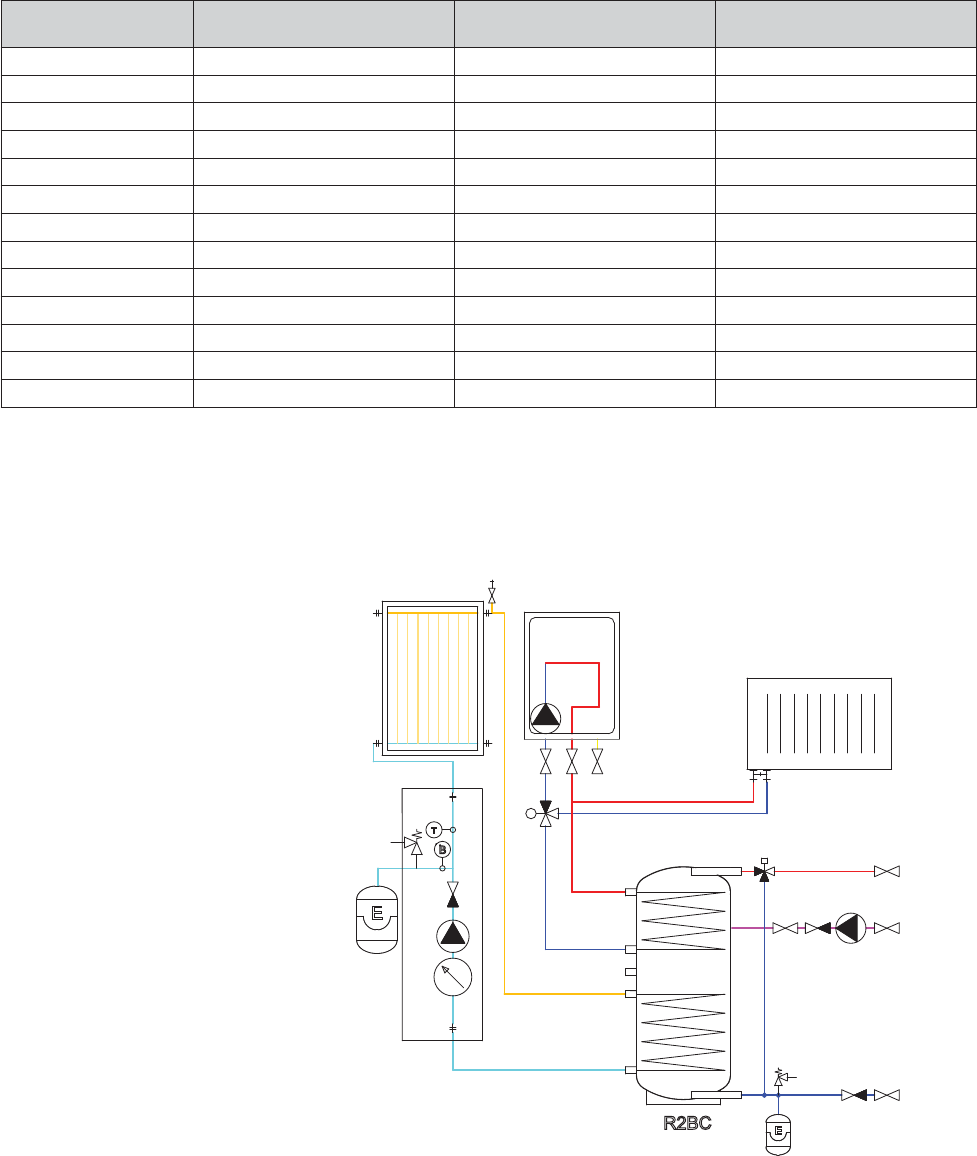

Example I.
With a gas boiler and a solar system.
R2BC
E
E
T
bbbbb
B
bbb
DHW
cold water
recirculation
gas boiler
Connection point
Example I.
with a gas boiler
Example II.
with a boiler and accumulation tank
Example III.
with a heat pump
1 magnesium anode magnesium anode magnesium anode
2 thermometer thermometer thermometer
3 plug electric heating rod electric heating rod
4 cold water inlet cold water inlet cold water inlet
5 outlet to a solar system outlet to a solar system return line to a heat pump
6 temperature probe, thermostat temperature probe, thermostat temperature probe, thermostat
7 inlet from a solar system inlet from a solar system inlet from a heat pump
8 return line to a gas boiler return line to an accumulation tank return line to a fireplace
9 temperature probe, thermostat temperature probe, thermostat temperature probe, thermostat
10 recirculation recirculation recirculation
11 inlet from a gas boiler inlet from an accumulation tank inlet from a fireplace
12 hot water outlet hot water outlet hot water outlet
flange blinded blinded solar heat exchanger
Connections depend on the circuit to be connected, the a.m. examples are informative only.
