Installation Instructions

REESE

CUSTOM QUICK INSTALL MOUNTING KIT

FOR 30153 REESE

RAILS ONLY

Ford Super Duty F-250 / F-350 / F-450

Part Number:

56016

WARNING: Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing

capacity.

READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION

REESE

Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.

Equipment Required:

Fastener Kit: 56016F

Wrenches: 3/4, 7/8, 15/16, 15 mm, 18mm

Drill Bits: 1/8”, 9/16”

Other Tools: Center Punch, Measuring Tape

Sheet 1 of 12 56016N 3/1/2016 Rev. A

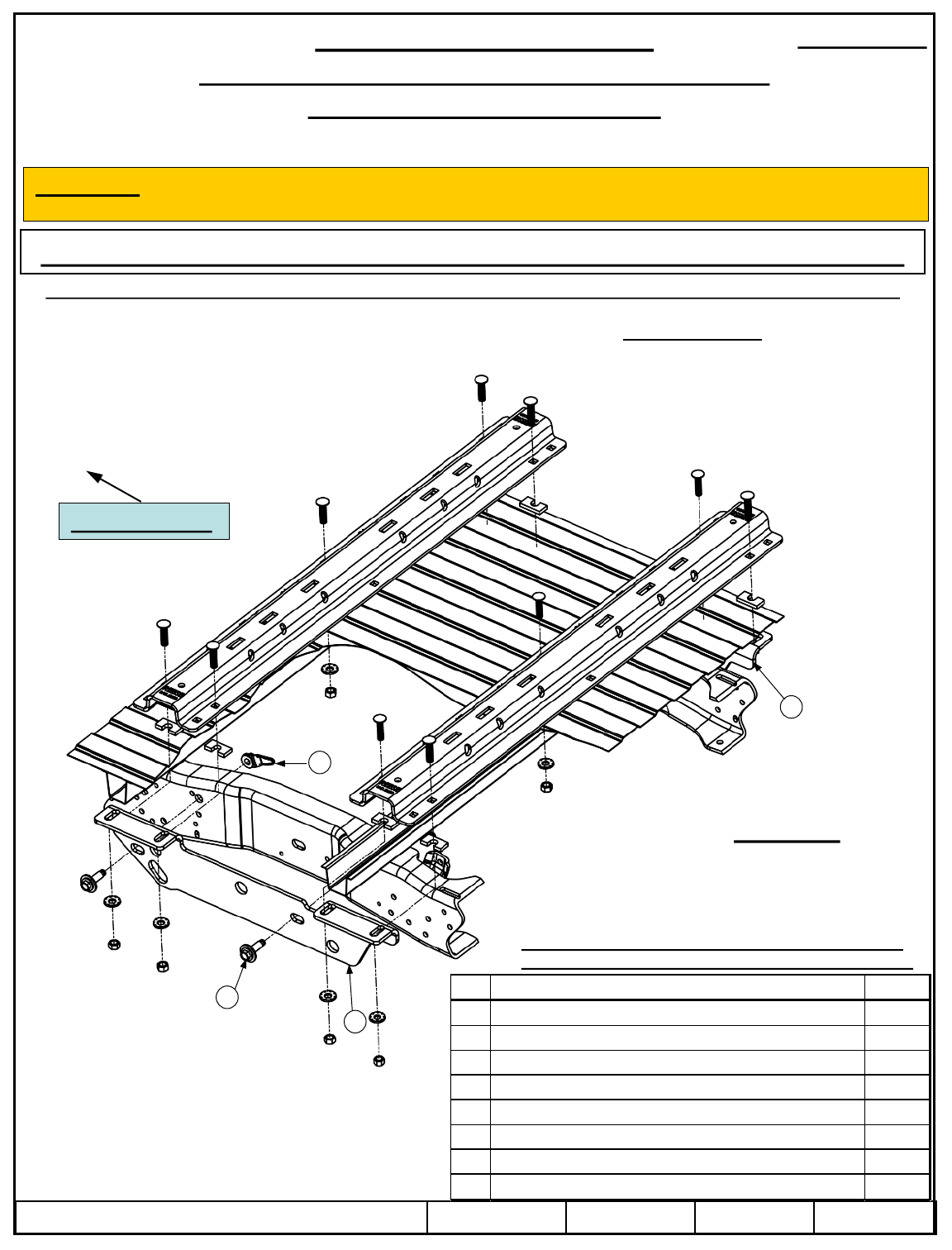

All Fasteners

Typical Both Sides

Fasteners listed below are supplied with this kit, all other

mentioned fasteners are supplied with part number 30153.

Item

Des cription Quantity

1 BOLT AND WASHER M14 X 45 4

2 NUT AND RETAINER M14 4

3 DRIVER'S SIDE FRAME BRACKET 1

4 PASSENGER'S SIDE FRAME BRACKET 1

5 WASHER FLAT 1/4" (See FIG. 1c) 2

6 NUT, NYLOK 1/4"-20 (See FIG. 1c) 1

7 BOLT, HEX HEAD 1/4"-20 x 1 1/4" GRADE 2 (See FIG. 1c) 1

8 L-BRACKET (See FIG. 1c) 1
